Why It Matters: Performing a compression test on your Kubota engine offers a clear window into internal health, enabling you to detect worn rings, leaking valves, or head gasket failures before they cascade into catastrophic breakdowns. Early diagnostics can save thousands in repair bills and downtime.

Main Benefits: Accurate identification of cylinder issues, informed maintenance planning, optimized engine performance, and extended service life. A $50–$100 investment every 500 hours prevents potential $5,000–$15,000 rebuilds.

Scope of This Guide: From tool selection through advanced interpretation methods—including wet vs. dry testing—this guide equips you with the knowledge to confidently perform, analyze, and act on compression test results for all common Kubota diesel engines.

Essential Gear

• Diesel Compression Gauge: Choose a gauge rated for at least 600 PSI, preferably up to 1,000 PSI for accuracy across all diesel engines.
• M10×1.25 Thread Adapters: Kubota glow plugs use this thread; ensure you have engine-specific adapters for a leak-free seal.
• Harbor Freight Kit #93644: Cost-effective option covering popular Kubota models (L1501, L1801, M4000 series, etc.).
• Basic Hand Tools: Glow plug socket, wrenches, pliers, and screwdrivers for component removal.
• Safety Equipment: Eyewear, gloves, and clean shop rags to protect against oil spray and hot surfaces.
• Record-Keeping: Notepad or digital device to log readings and observations.

Model-Specific Considerations

Indirect injection (IDI) engines: Access via glow plug ports. Direct injection (DI) engines: Removal of pencil-type injectors may be necessary for gauge placement. Verify your engine type before starting.

1. Pre-Test Preparation

1. 1
   Warm engine to operating temperature to avoid 3–10% lower cold readings. Park on level ground, set brake, shut off engine, and allow initial cooldown of external surfaces.
2. 2
   Disconnect battery negative terminal and disable fuel system by pulling the stop lever or removing injection pump lines. This prevents accidental fuel delivery and ignition.

2. Component Access

Remove glow plugs from each cylinder using the correct socket. If glow plug ports are obstructed by fuel lines or brackets, carefully loosen or remove interfering components. For DI engines, remove injectors after proper depressurization of the fuel rail.

3. Gauge Installation & Cranking

3. 3

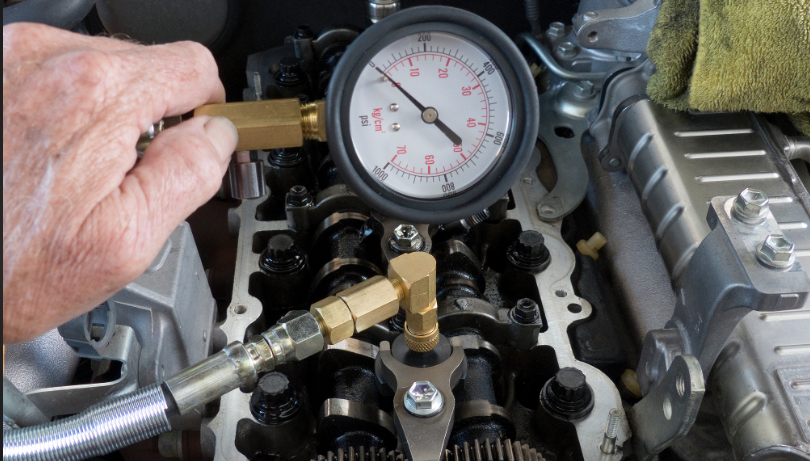

   Thread the correct adapter and gauge assembly into the glow plug hole. Hand-tighten then snug with a wrench—avoid over-torquing and damaging threads.
4. 4
   Crank the starter, maintaining at least 250 RPM. Count six compression strokes—pressure typically peaks by the fourth stroke. Record the highest PSI shown.
5. 5
   Repeat for all cylinders, ensuring battery and starter maintain speed for consistency. Note any anomalies such as slow cranking speeds or gauge leakage.

Wet vs. Dry Test Interpretation

Dry Test: Baseline cylinder pressures. Use as reference for further diagnostics.

Wet Test: Add exactly 1 mL clean 10W oil to each cylinder at TDC. Retest pressures:

• Pressure Rises Significantly: Worn or stuck piston rings—oil temporarily seals rings to improve compression.
• No Significant Change: Valve leakage, bent rods, or head gasket failure—oil cannot seal these issues.

Note: Use wet testing only for diagnosis. Excess oil risks hydraulic lock; high-compression diesels may ignite oil mist—limit test duration.

Ring-Related Repairs

If wet testing shows improved PSI, piston rings are worn or stuck. Short-term treatment: soak cylinders with Marvel Mystery Oil and crank weekly before retesting. Long-term: plan for ring replacement—may require engine teardown through the oil pan or full removal if walls are scored.

Valve Service & Sealing

No PSI change on wet test indicates valve issues. Check valve clearances per service manual—for example, D722 requires 0.0057–0.0073″ lash. Perform leak-down tests with acetone and air pressure to verify sealing, then reseat, replace guides, or swap valves as needed.

Head Gasket Diagnosis & Repair

Adjacent cylinder failures combined with milky oil or coolant loss confirm head gasket breach. Repair involves head removal, thorough surface inspection, new gasket installation, and precise torqueing sequence. Always retest compression post-repair to confirm success.

• Maintain Cranking Speed: Use a fully charged battery or a jump start cart to ensure ≥250 RPM; slow cranking skews readings downward.
• Consistent Temperature: Conduct all tests at similar engine temps; log ambient temperature and note cold vs. hot differentials.
• Proper Seal Checks: Spray soapy water around adapter fittings to detect leaks during cranking.
• Safety First: Always wear eye protection, keep hands clear of moving parts, and disconnect battery before component removal.
• Cost vs. Value: Routine compression testing is a low-cost preventive measure that mitigates risk of high-cost overhauls, downtime, and lost productivity.

The Kubota engine compression test is a critical preventive maintenance procedure that provides immediate insights into internal engine health. By following the systematic approach outlined—selecting the right tools, preparing properly, executing accurate dry and wet tests, and interpreting results—you can pinpoint ring wear, valve leaks, or head gasket failures before they compromise engine performance.

Key Takeaway: Schedule compression tests every 500 operating hours, maintain consistent testing conditions, and act promptly on diagnostic findings to extend engine life and maximize reliability.

Q1: How often should I perform a compression test?

Every 500 operating hours as part of routine maintenance or whenever you experience starting, power, or oil consumption issues.

Q2: Can I wet test all diesel engines safely?

Use wet testing only for indicative diagnosis; avoid on high-compression diesels longer than necessary to prevent oil ignition or hydraulic lock.

Q3: What if all cylinders read uniformly low?

Uniformly low readings often point to timing chain wear, camshaft issues, or widespread cylinder wear—inspect timing components and overall engine wear.

Q4: Are budget kits accurate enough?

Quality matters: choose gauges rated to 1,000 PSI and correct adapters. Harbor Freight kits work well, but ensure fittings seal properly for reliable data.
