⚡ Quick Answer

Valve clearance is checked on a cold engine with a feeler gauge. For the MX5400 and MX6000, Kubota’s spec sheet lists a V2403CR-T engine, and Kubota’s workshop manual for the V2403-CR-TE4 gives a cold valve clearance of 0.18 to 0.22 mm (0.0071 to 0.0086 in) for both intake and exhaust. The MX5400/MX6000 operator’s manual schedules valve adjustment every 800 hours and says to consult your Kubota dealer. Always confirm against the workshop manual for your exact engine before adjusting.

Last updated November 7, 2026. This page previously listed different MX5400/MX6000 clearances and torque values that we couldn’t verify. They have been removed. Specs below come from Kubota’s MX Series specification sheet, the MX5400/MX6000 operator’s manual (TC860-1971-5) and Kubota’s V2403-CR-TE4 workshop manual (a third-party reproduction of Kubota’s text). Where we couldn’t verify a number, we say so.

A ticking noise from the valve cover area, hard cold starts or a drop in power can point to valve clearances that have drifted. Left alone, excessive or tight clearances can damage valves and cam parts, which turns a routine adjustment into an expensive repair. This guide covers the verified MX5400/MX6000 numbers, explains what the procedure involves, and tells you when to take it to a dealer.

MX5400 and MX6000 Valve Clearance

Item	MX5400 and MX6000	Source
Engine	V2403CR-T, 4-cylinder turbo diesel, 148.6 cu in (2,434 cc)	Kubota USA MX Series spec sheet
Intake clearance (cold)	0.18 to 0.22 mm (0.0071 to 0.0086 in)	Kubota V2403-CR-TE4 workshop manual, p. 4-91
Exhaust clearance (cold)	0.18 to 0.22 mm (0.0071 to 0.0086 in)	Same (one published figure for both valves)
Scheduled interval	Every 800 hours	MX5400/MX6000 operator’s manual, p. 115
Who does it	“Consult your local KUBOTA Dealer”	Operator’s manual, p. 144

⚠️ Don’t borrow numbers from another engine: Kubota’s service data for the larger V3307 engine (used in the M6060, M7060 and M4 tractors) lists a different cold clearance of 0.13 to 0.17 mm. Never use a figure from a different engine on your tractor. Confirm your engine model on the data plate and use the workshop manual for that engine.

About these figures: The workshop-manual figure is for the V2403-CR-TE4, which Kubota’s parts catalog lists for the MX5400HST. The MX6000 shares the V2403CR-T designation on Kubota’s spec sheet, but Kubota’s catalog headings for it are inconsistent, so verify yours. We couldn’t find a verified torque for the V2403 valve-adjuster locknut or cylinder-head (rocker) cover, so we don’t list one. Use your workshop manual. See the Kubota MX Series spec sheet and our MX5400 vs MX6000 comparison.

Valve Clearance for BX, B, L and M Series

Clearance depends on the engine, not the tractor name, and two models that look alike can use different engines. These figures come from Kubota’s operator’s and workshop manuals (some hosted by third parties). Confirm your engine on the data plate before adjusting.

Tractor	Engine	Cold clearance (intake and exhaust)	Interval in operator’s manual	Manual says dealer?
BX2380	D902	0.145 to 0.185 mm	800 hours	Yes
BX23S	D902	Not verified. Check your workshop manual.	800 hours	Yes
B2601	D1105-E4-D32	0.145 to 0.185 mm	800 hours	Yes
L3901	D1803-CR-E4 (three-cylinder)	0.18 to 0.22 mm	800 hours	Yes
L4701	V2403-CR-E4 (four-cylinder)	0.18 to 0.22 mm	800 hours	Yes
M5-111	V3800-TIEF4 (see note)	0.23 to 0.27 mm	1,000 hours	Not verified
M6-141	V6108-TIEF4	Not verified. Check your workshop manual.	1,000 hours	Yes

⚠️ M5-111 note: Kubota’s operator’s manual for the M5-111 names the V3800-TIEF4, but Kubota USA’s 2015 bid specification sheet lists a V3800-CR-TE4. The 0.23 to 0.27 mm figure is verified for the V3800-TIEF4 only. Check your engine’s data plate before using it.

Sources: each tractor’s operator’s manual (service-interval pages) and Kubota workshop manual (service specifications). We couldn’t verify locknut or cover-bolt torques for these engines, so we don’t list any. Don’t copy a figure from one engine to another.

What a Valve Adjustment Involves (Overview)

⚠️ This is an overview, not a procedure for your engine. Kubota directs MX5400/MX6000 owners to a dealer for this service. The steps below describe the general idea so you know what’s involved. The sequence, access and torque differ by engine, so follow the workshop manual for yours.

Start with a cold engine, parked on level ground with the battery disconnected, then remove the cylinder-head (rocker) cover and clean the mating surface.
Set the engine to the position the manual specifies for the valves you’re checking. Your manual gives the timing marks and which valves can be checked at each position.

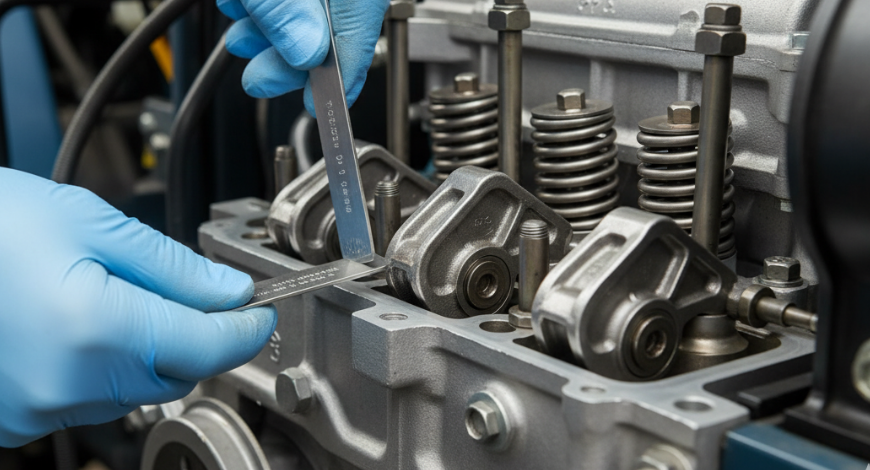

Measure clearance with a feeler gauge between the rocker arm and valve stem. You want a slight drag at the specified clearance.
Adjust if needed. Hold the adjusting screw, loosen the locknut, set the clearance, then tighten the locknut to the manual’s torque while holding the screw.
Recheck after tightening, because tightening the locknut can change the setting.
Repeat for each valve in the manual’s sequence for your engine.
Refit the cover with a new gasket if the old one is damaged, tighten to the manual’s torque, reconnect the battery and check for leaks and unusual noise.

⚠️ Common Mistakes

Adjusting a warm engine
Using another engine’s clearance or torque figures
Setting the engine to the wrong position
Forgetting to recheck after tightening the locknut
Forcing a stuck adjuster instead of stopping

When to See a Dealer

Any MX5400/MX6000 (Kubota directs owners to a dealer)
You can’t get a workshop manual for your engine
Clearances are far out of spec, which can mean valve or seat wear
You don’t have a torque wrench and metric feeler gauges

Tools & Parts You’ll Need

🔧 Measurement Tools:

Kubota’s specs are metric, so use a metric feeler gauge set.

Metric Feeler Gauge Set

Check that it includes the range your spec needs (for example 0.18 to 0.22 mm).

View

Torque Wrench

For the locknuts and cover bolts, at the torque your workshop manual lists.

View

GearWrench 20pc Ratcheting Combo Wrench Set

Check the fastener sizes for your engine in the manual.

View

Metric Socket Set

For cover bolts and adjuster locknuts.

View

Kubota Shop Manual (check it covers your model and engine)

Confirm the listing covers your tractor’s engine before you buy. Specs differ by engine.

View

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

🛢️ Parts, Fluids & Cleanup:

Replace the cover gasket if it’s damaged. Top off the oil to the correct level afterward.

RTV High Temp Silicone Gasket Maker

Only where your manual calls for sealant. Use sparingly.

View

TRIAX Agra Supreme 15W-40 CK-4/CJ-4

The MX5400/MX6000 manual specifies API CJ-4 for DPF engines. Check your own manual’s oil spec.

View

Diesel Compression Tester

An optional baseline test. Compare readings with your workshop manual’s spec.

View

Nitrile Gloves 100-Pack

Keeps hands clean and improves grip on small fasteners.

View

Shop Towels

Clean the cover mating surface before reassembly. Debris causes leaks.

View

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

📖 Service manuals: This Kubota Z482/Z602/D622/D722/D782/D902 engine manual PDF covers those engines only. It does not cover the MX5400/MX6000.

📖 L series: This Kubota L3130/L3430/L3830/L4630/L5030 service manual PDF covers those models only. It doesn’t cover the L3901 or L4701.

📐 Need a Parts Diagram?

Browse free Kubota parts diagrams and manuals, organized by model.

View Free Parts Diagrams →

💡 Is Your Kubota Worth Repairing?

If valve noise has you questioning your tractor’s condition, use our FREE Repair vs. Replace Calculator before spending money on repairs.

Calculate Your Tractor’s Value →

Deciding between the L3901 and L4701? See our comparison guide →

Frequently Asked Questions

What are the valve clearance specs for the Kubota MX5400?

Kubota’s workshop manual for the V2403-CR-TE4 engine, which Kubota’s catalog lists for the MX5400HST, gives a cold clearance of 0.18 to 0.22 mm (0.0071 to 0.0086 in) for intake and exhaust. The MX6000 shares the same V2403CR-T designation on Kubota’s spec sheet. Confirm your engine model on the data plate and check the workshop manual for your tractor before adjusting.

How often should I adjust the valves on an MX5400 or MX6000?

The MX5400/MX6000 operator’s manual lists valve clearance adjustment every 800 hours. Ticking or a drop in power is a reason to have the clearances checked sooner.

Can I adjust the valves myself?

For the MX5400 and MX6000, the operator’s manual says to consult your local Kubota dealer for adjusting the engine valve clearance. A workshop procedure exists, but we didn’t find Kubota classifying it as an owner task, and we couldn’t verify the torque for the V2403 locknut or cover. If you do it yourself, you need the workshop manual for your exact engine and a torque wrench.

Can I use the V3307 specs on an MX5400?

No. Kubota’s spec sheet lists the V2403CR-T for the MX5400 and MX6000, and the V3307 is a larger engine used in tractors such as the M6060 and M7060. Kubota’s service data for the V3307 lists a different cold clearance (0.13 to 0.17 mm), so don’t carry it over.

What causes valve clearance to change?

Normal wear on the rocker pads, valve tips and cam lobes can change clearances over time, and dusty conditions or poor oil maintenance can speed that up. If clearances are far out of spec, have the valves and seats inspected.

Do I need a metric feeler gauge?

Kubota publishes metric specs, so a metric set is the easiest way to read them. 0.18 to 0.22 mm is 0.0071 to 0.0086 in. Using a fractional-inch gauge makes it easy to read the wrong size.
