Kubota ZD1211, ZD1021 & ZD331 Blade Cross-Reference Guide

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

The Kubota ZD1211 with the 60″ RCK60P-1200Z deck uses genuine Kubota blade K5955-34360 (which superseded the older K5955-97530), three per deck, 20-1/2″ long. Oregon publishes a direct cross-reference (396-816, Gator G6) in its own catalog. Blade bolt torque for the ZD1211/ZD1221 family is 76-87 ft-lbs. Always confirm your exact deck model — different ZD decks use different blades, and not every part number claimed online for “ZD series” actually applies to your specific deck.

Kubota ZD1211 Blade Specifications

ZD1211 — RCK60P-1200Z Deck

OEM blade: K5955-34360 (supersedes K5955-97530)

20-1/2″ long, 3″ wide, 1/4″ thick — three blades per deck

Blade Bolt Torque

76-87 ft-lbs (102.9-117.6 N·m)

Confirmed for the ZD1211/ZD1221 deck family specifically — don’t assume this spec applies to every ZD model without checking your operator’s manual

⚠️ Key Point: Kubota’s ZD lineup has included many model names over the years — ZD21, ZD25, ZD28, ZD321, ZD323, ZD326, ZD331, ZD1021, ZD1211, ZD1221, and ZD1511 among them. Always confirm your exact model and deck (like “RCK60P-1200Z”) from your machine’s ID plate before ordering — different decks in the ZD family use different blades, even at the same 60″ width.

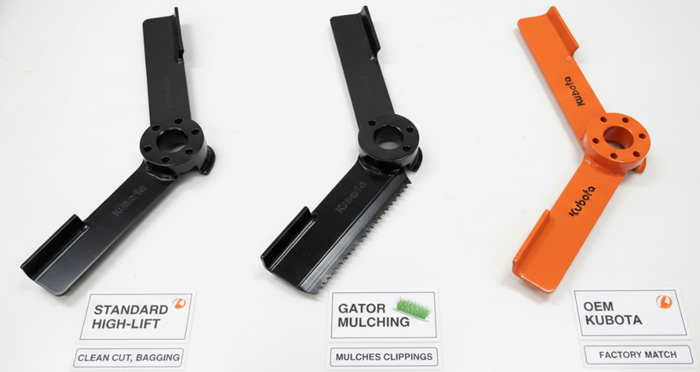

Kubota ZD1211 Blade Cross-Reference

Brand	Part #	Type	Buy
Oregon	396-816 (6-pack)	Gator G6 mulching	View on Amazon →
Aftermarket	K5955-34360 direct-fit (3-pack)	Standard high-lift	View on Amazon →

💡 Don’t see your exact deck? Kubota’s own dealer catalog is the most reliable source if your deck isn’t listed here — search your deck model (stamped on the deck itself, like “RCK60P-1200Z”) directly through an authorized Kubota dealer’s online parts catalog for your confirmed blade number.

Complete Blade Replacement Guide

Safety First

Disengage the blade switch, shut off the engine, remove the key, and engage the parking brake. Allow blades to stop fully — minimum 3 minutes. Lower the deck to its lowest position for best access.

Access & Apply Penetrating Oil

Most ZD decks allow blade changes with the mower on level ground and the deck lowered. Spray penetrating oil on all three blade bolts and let it work for about 10 minutes before removal.

Remove Old Blades

Insert a wooden block between the blade and deck opening to prevent rotation, then loosen with a breaker bar or impact wrench (right-hand thread — turn counterclockwise to loosen). Note blade orientation before removal — the curved sail must face upward toward the deck.

Inspect Spindles

Spin each spindle by hand — it should rotate smoothly with no roughness or wobble. ZD models typically use sealed spindle assemblies; replace the complete assembly if worn rather than trying to service individual bearings.

Install & Torque

Install new blades with the sail facing upward. Apply anti-seize to bolt threads. Torque to 76-87 ft-lbs with a calibrated torque wrench (confirm this spec matches your specific deck’s manual). Re-torque after the first 2 hours of operation, then check every 25 hours going forward.

Blade Troubleshooting Guide

Problem	Causes	Solutions
Uneven Cut / Scalping	Deck not level, dull or bent blades, worn spindle	Check deck level at all four corners — front should sit about 1/4″ lower than rear. Replace dull or bent blades. Inspect spindles for wobble.
Excessive Vibration	Bent blade, unbalanced blade, loose bolt, failing spindle bearing	Stop immediately — vibration accelerates spindle failure. Inspect all blades for bending. Verify bolt torque. Check each spindle by hand.
Strip Left in Middle of Cut	Center blade dull, bent, or loose — three-blade decks have overlapping coverage zones	Remove and inspect the center blade first. Even a slight bend causes a missed strip. Also check deck level for sagging at the center.
Clippings Clumping	Wet grass, cutting height too low, dull blades	Mow when dry. Never remove more than 1/3 of grass height per pass. Sharpen or replace blades.

ZD Blade Maintenance Schedule

🌱 Spring

Inspect all three blades for winter rust, cracks, and bending. Sharpen and balance. Replace blade bolts. Check all spindles for smooth operation. Verify deck level.

🔧 Every 25 Hours

Check blade bolt torque — zero-turns vibrate more than traditional tractors, loosening hardware faster. Inspect blades for new chips or bends. Clean deck underside of grass buildup.

⚙️ Every 50-100 Hours

Sharpen all three blades, maintaining the original bevel angle. Balance each blade after sharpening — unbalanced blades cause rapid spindle bearing wear at high RPM.

❄️ End of Season

Remove and store blades indoors to prevent rust. Sharpen before storage. Grease spindle zerks (on models with greaseable spindles). Clean the entire deck.

🔧 Complete Blade Kit

Replacement Blades

Oregon 396-816 (6-pack)

Gator G6 mulching, confirmed Kubota cross-reference

View on Amazon →

K5955-34360 Direct-Fit (3-pack)

Standard high-lift, correct 3-blade set

View on Amazon →

Affiliate Disclosure: We may earn a commission from qualifying purchases through these links at no extra cost to you.

Related Kubota ZD Maintenance Guides

Lawn Mower Blade Cross-Reference →

Universal blade cross-reference for major mower brands

Tractor Oil Filter Cross-Reference →

Kubota ZD diesel oil filter alternatives

Mower Blade Bolt Cross-Reference →

Grade 8 blade bolt sizes and torque specs

Kubota Maintenance Schedule →

Complete service intervals for all Kubota models

❓ Frequently Asked Questions

What blade fits the Kubota ZD1211?

The ZD1211 with the RCK60P-1200Z deck uses three genuine Kubota blades, current part number K5955-34360 (which superseded K5955-97530). Each blade is 20-1/2″ long, 3″ wide, and 1/4″ thick. Oregon’s 396-816 Gator G6 blade is a confirmed direct cross-reference. Always verify your exact deck model from the ID plate — different ZD decks use different blades even at the same width.

What is the blade bolt torque spec for the Kubota ZD1211?

For the ZD1211/ZD1221 deck family specifically, Kubota specifies 76-87 ft-lbs (102.9-117.6 N·m) for blade bolts. This spec is confirmed for this particular deck family — don’t assume it applies universally to every ZD model without checking your own operator’s manual, since older and different ZD decks can use different hardware and torque specs.

Why does my ZD1211 leave a strip in the middle of the cut?

A center strip on a 60″ three-blade deck almost always means the center blade is dull, bent, or loose — the blades have overlapping coverage zones, and if the center blade underperforms, a strip appears where the zones meet. Remove and inspect the center blade first: check for bending, compare sharpness to the outer blades, and verify the bolt is properly torqued. If all three blades check out fine, look at deck level next.

How often should I sharpen Kubota ZD blades?

Sharpen every 25 hours under normal conditions, more often (every 15-20 hours) in sandy or abrasive terrain. Signs blades need sharpening: grass tips look ragged or torn rather than cleanly cut, cut quality dropping, or mowing taking longer for the same area. Always sharpen and balance all three blades together as a set — mixing sharp and dull blades causes uneven cut and vibration.
