Kubota B7610 Problems: 7 Common Issues & Fixes (2026)

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

The most common Kubota B7610 problems are no-start electrical faults, HST pedal safety switch shutdown, overheating from clogged cooling passages, and weak hydraulics from low or aerated fluid. The B7610 is HST only — no gear drive version. Confirmed filter kit: oil HH150-32094, fuel 6A320-59930, air 6C060-99410, hydraulic HH660-36060 and HH670-37710. Use Super UDT2 for hydraulic/transmission fluid. Most B7610 no-start and shutdown complaints trace to safety switches and linkage — not the engine or HST pump.

✓ Kubota B7610 — No DPF / No DEF / HST Only

The B7610 uses a Kubota D1005 3-cylinder diesel — no DPF, no DEF, no emissions aftertreatment. Transmission is HST only — no gear drive version was offered. All transmission complaints are HST pedal response, interlock behavior, linkage adjustment, and safety switch faults — not gearbox wear. Engine: approximately 24 HP. Engine oil capacity: approximately 3.2 quarts. Hydraulic/transmission capacity: approximately 4 gallons (HST). Produced from approximately 2004 to 2007. The B7610 and B7510 are close platform siblings — B7610 has ~3 HP more than B7510.

Kubota B7610 Problems — Quick Reference Table

Problem	Symptom Pattern	DIY Difficulty	DIY Cost	Dealer Cost
No-start / no-crank electrical	Dash on, starter won’t engage	Easy	$0–$150	$200–$600
HST pedal / interlock shutdown	Dies when pedal pressed	Easy	$20–$100	$200–$500
Steering weakness when hot	Steering only acts up with hot oil	Easy–Medium	$60–$400	$400–$2,000
Overheating / cooling pack clog	Temperature rises, radiator packed with debris	Easy	$0–$50	$200–$600
Air filter clogging with soot	Engine compartment turns black	Easy	$20–$80	$150–$400
Hydraulic weakness / slow 3-point	Slow loader, weak hitch lift	Easy	$60–$200	$300–$1,500
Filter restriction / power loss	Rough running, reduced power	Easy	$20–$100	$150–$400

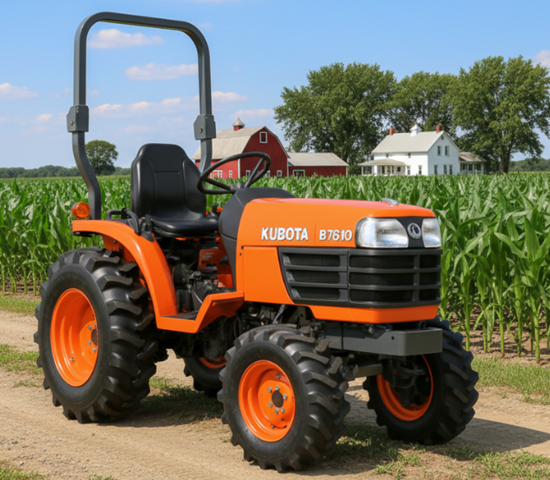

The Kubota B7610 is a 24 HP HST compact utility tractor produced from 2004 to 2007 — the HST-only sister model to the B7510. Owner discussions on OrangeTractorTalks and TractorByNet show the B7610’s problems cluster around electrical no-start faults, HST safety switch shutdowns, and maintenance-related overheating and hydraulic weakness — all preventable with regular service.

One owner described the tractor running fine until the HST pedal was pressed — then it would die — a safety switch or interlock wiring fault, not an engine or pump failure. Another described the air filter “plugging with very fine exhaust soot” with the whole engine compartment turning black — an exhaust routing or leak issue that contaminates the cooling and intake system. A third described slow 3-point and loader performance tracing to a hydraulic fluid level issue after service — the refill quantity confused owners because drained fluid is typically less than published capacity.

🔌 Kubota B7610 Specs & Fluid Reference

Spec	Value
Engine	Kubota D1005 3-cylinder diesel — approximately 24 HP
Transmission	HST only — no gear drive version
Engine oil type	15W-40 diesel — API CF or higher
Engine oil capacity	Approximately 3.2 quarts — verify with dipstick
Hydraulic / transmission fluid	Kubota Super UDT2 — approximately 4 gallons HST — verify in operator manual
Front axle fluid	Super UDT2 or SAE 80W-90 gear oil — verify in operator manual
Production years	2004–2007 — HST only — 2WD and 4WD

Problem #1 — No-Start / No-Crank Electrical Fault (Most Common)

⚠️ Most Common B7610 No-Start Cause: Owner language: “won’t start” even after battery change. On the B7610 the most common no-crank causes with dash power present are bad grounds, relay failure, ignition switch wear, and safety switch faults — in that order. Clean grounds first, then swap the relay.

Symptoms

Key on — dash lights illuminate but starter does not engage
Single click or no sound at all when key is turned to start
Problem persists after battery replacement
Intermittent — sometimes starts fine, other times won’t crank

📋 Fix — In Order

Load-test battery — must hold above 9.6V during cranking. Clean and tighten all battery terminals and ground points at frame and engine block
Swap the start relay with a known-good relay — resolves most B7610 no-crank complaints
Check seat switch, PTO switch, and HST pedal safety switch — all must be in correct position for starter to engage
Test ignition switch output — verify 12V reaches the starter relay when key is in START position. Replace ignition switch if output is intermittent. See our Kubota Ignition Switch Guide

See our Kubota Won’t Start Guide. DIY cost: $0–$150. Dealer cost: $200–$600.

Problem #2 — HST Pedal / Interlock Shutdown

⚠️ Specific B7610 Pattern: Owner language: tractor “can run at all speeds” until the HST pedal is pressed — then it dies. This is a safety switch or interlock wiring issue falsely grounding the ignition circuit when the pedal is pressed — not an HST pump or engine problem. The HST pedal activates the safety interlock circuit and a bad switch or wiring fault triggers shutdown.

Symptoms

Tractor runs fine at idle — dies immediately when HST pedal is pressed
Engine shuts off cleanly — no sputter or power fade
Restarts fine until pedal is pressed again
Problem may be worse in certain pedal positions

✓ Fix — In Order:

Inspect HST pedal neutral position switch — the switch that confirms the pedal is in neutral before starting must not be falsely triggering shutdown when the pedal moves
Check all safety switch connectors for corrosion — a corroded connector that intermittently grounds when flexed by pedal movement causes exactly this pattern
Inspect HST linkage for binding — linkage that doesn’t return smoothly to neutral triggers safety interlocks
Verify the solenoid/interlock logic is not falsely grounding the ignition circuit when pedal is depressed. See our Kubota Safety Switch Guide

DIY cost: $20–$100. Dealer cost: $200–$500.

🔧 Recommended Parts — B7610 Filter Kit

Riyhch Maintenance Filter Kit for Kubota B7610 — confirmed: oil HH150-32094, fuel 6A320-59930, air 6C060-99410, hydraulic HH670-37710 and HH660-36060 — View on Amazon →
Oil Filter HH150-32094 — individual oil filter for mid-service changes — View on Amazon →
Super UDT2 2.5 Gallon — HST hydraulic/transmission fluid — View on Amazon →
Shell Rotella T6 15W-40 — engine oil for B7610 D1005 diesel — View on Amazon →

Confirm filter numbers against Kubota parts lookup by serial number for your specific B7610 variant. See our Kubota Filter Cross-Reference Master Chart. As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

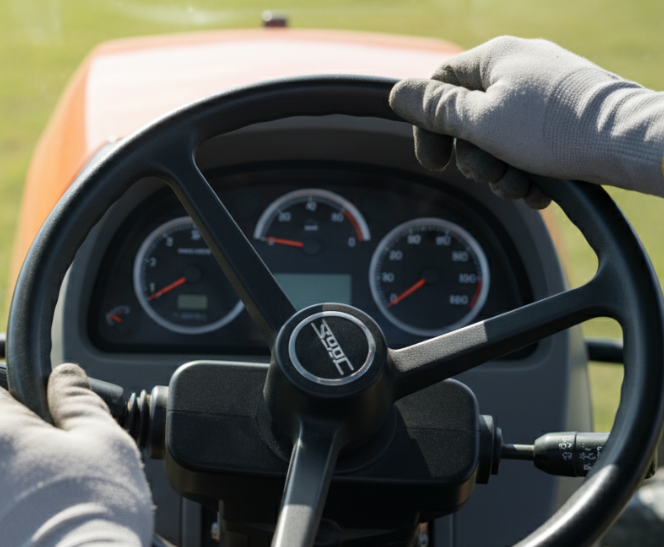

Problem #3 — Steering Weakness When Hot

💡 B7610 Pattern: Owner language: steering “only acts up when hot oil is involved” with suspicion of a valve hanging up and starving steering flow. Hot-only steering weakness on the B7610 points to a priority or relief valve that functions adequately cold but sticks under thermal expansion — check fluid and filter before any valve diagnosis.

Symptoms

Steering fine when cold — becomes heavy or unresponsive after 30–60 minutes
Steering problems coincide with loader or 3-point use under load
Clears after cooling down — returns under sustained work

✓ Fix — In Order:

Check hydraulic fluid level and condition — low or degraded fluid causes heat-related steering weakness on compact tractors
Replace hydraulic filter HH660-36060 and clean suction screen
Inspect steering hoses for restriction or heat-related collapse
If hot-only symptoms persist after fluid and filter service — steering priority valve inspection. See our Kubota Power Steering Guide

DIY cost: $60–$400. Dealer cost: $400–$2,000.

Problem #4 — Overheating / Cooling Pack Clogging

💡 Maintenance Issue — Not a Head Gasket: Most B7610 overheating complaints are airflow and maintenance issues — not failed head gaskets. A clogged radiator screen, packed radiator fins, or blocked oil cooler causes temperature to rise exactly the same way as a mechanical failure. Clean the cooling system before any expensive diagnosis.

Remove and clean the radiator screen — the front screen packs with chaff, grass, and debris rapidly during mowing and field work
Blow out the radiator from the fan side outward with compressed air — never blow in from the front as this packs debris deeper
Clean the oil cooler and grille area simultaneously — both restrict airflow when clogged
Check coolant level and thermostat — confirm coolant is at the correct level and thermostat opens at the correct temperature
Verify fan belt tension — a slipping fan belt reduces airflow enough to cause overheating under sustained load

See our Kubota Overheating Guide. DIY cost: $0–$50. Dealer cost: $200–$600.

Problem #5 — Air Filter Clogging With Soot

⚠️ Unique B7610 Issue: Owner language: air filter “plugging with very fine exhaust soot” with the whole engine compartment turning black from exhaust being pulled through the radiator area. This is an exhaust routing or leak problem — not a normal filter service interval issue. Find the exhaust leak or routing fault before replacing filters.

Inspect for exhaust leaks at the manifold, exhaust pipe joints, and muffler — any leak allows exhaust gas to enter the engine compartment and get pulled through the cooling and intake system
Verify muffler and exhaust stack are intact — a cracked or perforated muffler is the most common source
Clean the cooling stack thoroughly — soot-packed fins restrict airflow and cause overheating alongside the air filter contamination
Replace air filter 6C060-99410 if soot has embedded the media too deeply to clean

DIY cost: $20–$80. Dealer cost: $150–$400.

Problem #6 — Hydraulic Weakness / Slow 3-Point and Loader

💡 Common After Fluid Service: B7610 owners report hydraulic weakness after fluid changes because the drained quantity is typically less than published capacity — old fluid remains in the system. Owners often under-fill on refill, leaving the system low. The published capacity is what the system holds when completely dry — not what comes out during a drain.

Verify fluid level with correct procedure — check on level ground with engine off and all functions cycled to neutral
Top up with Super UDT2 to correct level — do not overfill
Replace hydraulic filters HH660-36060 and HH670-37710
Cycle loader and 3-point 10+ times to purge air after any fluid service
Inspect for external leaks at hoses, fittings, and cylinder seals

See our Kubota Hydraulic Fluid Guide. DIY cost: $60–$200. Dealer cost: $300–$1,500.

Problem #7 — Filter Restriction / Maintenance-Related Power Loss

The most preventable B7610 complaint category — dirty fuel, oil, air, and hydraulic filters cause rough running, reduced power, weak hydraulics, and shutdown-like symptoms across all B7610 owner reports. Always service all filters together rather than in isolation.

✓ Fix:

Replace fuel filter 6A320-59930 and bleed the fuel system after installation
Replace engine oil filter HH150-32094 and change oil on schedule
Replace air filter 6C060-99410 — inspect for soot contamination per Problem #5
Replace hydraulic filters HH660-36060 and HH670-37710
Inspect the intake and cooling system together after any filter service

See our Kubota Fuel System Bleeding Guide. DIY cost: $20–$100. Dealer cost: $150–$400.

🔧 Recommended Tools & Cross-Reference Guides

Digital Multimeter — relay, safety switch, and alternator testing — View on Amazon →
Lucas Red N Tacky Grease — HST pedal linkage and front axle lubrication — View on Amazon →
Nitrile Gloves — hydraulic and fuel system work — View on Amazon →
Kubota Filter Cross-Reference Master Chart — save 30–60% on B7610 filters — View Guide →
Kubota Air Filter Cross-Reference — B7610 air filter alternatives — View Guide →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Dealer vs DIY Cost — Kubota B7610 Common Repairs

Repair	DIY Cost	Dealer Cost	Savings
Relay + safety switch replacement	$10–$60	$200–$400	$190–$340
Full filter service — all filters	$50–$100	$200–$500	$150–$400
Radiator + cooling system clean	$0–$50	$200–$500	$200–$450
Hydraulic fluid + filter service	$60–$150	$250–$600	$190–$450
Steering valve / pump repair	$100–$500	$500–$2,000	$400–$1,500
HST internal repair	$300–$800	$1,000–$2,500	$700–$1,700

Kubota B7610 Maintenance Schedule

Interval	Service Items
Every Use	Check engine oil • Check hydraulic fluid • Inspect radiator screen for debris • Inspect under tractor for leaks
50–100 Hours	Change engine oil and filter HH150-32094 • Replace fuel filter 6A320-59930 • Bleed fuel system after filter change • Clean battery terminals and grounds • Test all safety switches • Inspect HST pedal linkage and return spring
200 Hours	Replace hydraulic filters HH660-36060 / HH670-37710 • Replace air filter 6C060-99410 • Blow out radiator from fan side • Check alternator output • Inspect exhaust system for leaks
400 Hours	Drain and refill hydraulic fluid with Super UDT2 • Change front axle fluid • Replace battery cables • Inspect wiring harness for chafing • Clean cooling system and oil cooler thoroughly

Frequently Asked Questions — Kubota B7610 Problems

Why does my B7610 die when I press the HST pedal?

This is a safety switch or interlock wiring fault — not an HST pump problem. Inspect the HST pedal neutral position switch and all safety switch connectors for corrosion. A connector that intermittently grounds when flexed by pedal movement causes exactly this pattern. Also check the HST linkage for binding that prevents smooth pedal return to neutral.

Does the B7610 come in a gear drive version?

No — the B7610 is HST only. All transmission complaints are HST pedal response, interlock behavior, linkage adjustment, and safety switch faults — not gearbox wear. The sister model B7510 was available in both gear and HST versions.

How does the B7610 compare to the B7510?

The B7610 and B7510 are close platform siblings — same era, same filter kit, same fluid specs. The B7610 has approximately 3 HP more than the B7510 and is HST only while the B7510 was offered in both gear and HST. Same filter part numbers apply to both models. See our Kubota B7510 Problems Guide.

Is the B7610 a reliable tractor?

The B7610 is a capable and durable compact tractor. Its problems are almost entirely maintenance-related — clogged cooling system, contaminated air filter from exhaust leaks, low hydraulic fluid after service, and electrical safety switch wear. None are design failures except the exhaust routing concern. Stay current on all filter service, clean the cooling system regularly, and test safety switches annually. Owners who maintain these items report reliable service well past 2,000 hours.

🚜 Own a Kubota B7510? See our complete Kubota B7510 Problems Guide — cold hydraulic freeze fix, no-start relay diagnosis, sudden shutdown causes and confirmed filter part numbers for all B7510DT and B7510HSD models.

Related Kubota B Series & Parts Guides

Kubota B7510 Problems Guide →

Close platform sibling — gear and HST

Kubota B7800 Problems Guide →

B series compact utility

Kubota B2601 Problems Guide →

Newer B series compact

Kubota Filter Cross-Reference Chart →

Save 30–60% on B7610 filters

Kubota Won’t Start Guide →

Complete no-start diagnosis

Used Kubota Inspection Guide →

What to check before buying used

The B7610’s most important maintenance habits are cleaning the radiator screen at every use, inspecting the exhaust system for leaks that contaminate the air filter and cooling system, staying current on all filter service, verifying hydraulic fluid level after any service using the correct fill procedure, and testing safety switches annually. Most B7610 complaints resolve with cleaning, filter service, or a $10–$50 switch replacement. See our Kubota Filter Cross-Reference Master Chart for verified filter savings. For more DIY guides visit TractorPartsCentral.com.
