Kubota L3010 Problems: 7 Common Issues & Fixes (2026)

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

The most common Kubota L3010 problems are hydraulic system leaks, loader control valve detent failure, front wheel bearing wear, and HST forward drive loss. The L3010 came in gear (GST), HST, and mechanical shuttle versions. Confirmed filters: oil HH164-32430, fuel 15521-43160, air TA040-93220/TA040-93230, hydraulic HHTA0-37710. Use Super UDT2 for hydraulic/transmission fluid — approximately 10.5 gallon shared system. Most L3010 hydraulic complaints resolve with a system flush, screen cleaning, and fresh Super UDT2 before any pump or valve diagnosis.

✓ Kubota L3010 — No DPF / No DEF / GST, HST, and Shuttle Available

The L3010 uses a Kubota D1305 3-cylinder diesel — no DPF, no DEF, no emissions aftertreatment. Available in Glide Shift (GST), HST, and mechanical shuttle versions. Engine: approximately 30–32 gross HP. Engine oil capacity: approximately 6–7 quarts. Hydraulic/transmission: shared system approximately 10.5 gallons — Super UDT2. Produced from approximately 1998 to 2002. The L3010 and L3130 share the Grand L10 platform — the L2900 is a different standard L platform. The L3130 is the direct successor to the L3010.

Kubota L3010 Problems — Quick Reference Table

Problem	Symptom Pattern	DIY Difficulty	DIY Cost	Dealer Cost
Hydraulic leaks / weak lift	Fluid loss, weak steering and lift	Easy–Medium	$60–$300	$300–$1,500
Control valve detent failure	Levers stick, auto-raise, sticky up/down	Medium	$100–$300	$400–$800
Front wheel bearing / seal failure	Noisy or wobbly front wheels	Medium	$100–$400	$400–$1,000
HST forward drive loss	Won’t move forward — reverse fine	Medium–Dealer	$300–$500	$1,000–$2,000
Stiff power steering	Hard turning — especially when warm	Easy	$60–$200	$300–$800
Engine noise at RPM	Rattling at 2500 RPM	Easy–Medium	$0–$200	$200–$800
Loader hose / seat degradation	Age-related hose leaks, seat failure	Easy	$50–$200	$200–$500

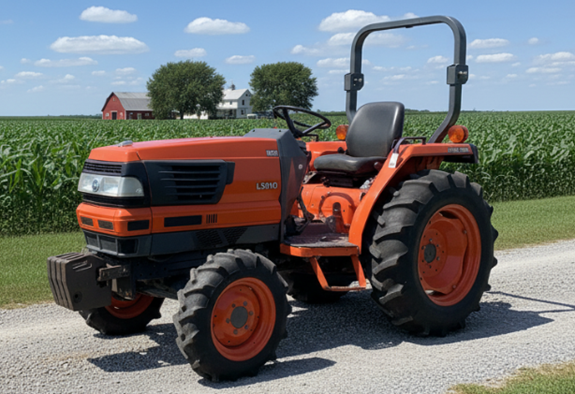

The Kubota L3010 is a 30–32 HP compact utility tractor produced from 1998 to 2002 on the Grand L10 platform in GST, HST, and mechanical shuttle versions. Owner discussions on TractorByNet and OrangeTractorTalks show the L3010’s problems cluster around hydraulic system health, control valve wear, and front wheel bearings — all maintenance-related issues that develop over time on a high-use compact tractor.

One owner described the loader control valve “broken twice” with the detent going sticky — a wear item on any L3010 that works hard. Another reported the HST “will not move forward” after an hour of work while reverse still worked — a relief valve or servo issue that has clear DIY diagnosis steps before expensive internal work. A third described the hydraulic fluid window “leaking bad” alongside weak lift and steering — a seals and screen issue that responds to flush and filter service.

🔌 Kubota L3010 Specs & Fluid Reference

Spec	Value
Engine	Kubota D1305 3-cylinder diesel — 30–32 gross HP / ~28 net HP
Transmission	GST (Glide Shift), HST, or mechanical shuttle
Engine oil type	15W-40 diesel — API CF or higher
Engine oil capacity	Approximately 6–7 quarts — verify with dipstick
Hydraulic / transmission fluid	Kubota Super UDT2 — shared system approximately 10.5 gallons
Front axle fluid	Super UDT2 — approximately 2–3 quarts per side
Production years	1998–2002 — Grand L10 platform — GST, HST, and shuttle versions

Problem #1 — Hydraulic System Leaks / Weak Lift (Most Common)

⚠️ Most Common L3010 Complaint: Owner language: “hydraulic fluid window leaks bad,” “rear lift and power steering going out.” The L3010’s shared hydraulic/transmission system means a leak or low fluid affects steering, lift, and transmission performance simultaneously. Clean the suction screen and flush the system before any pump or seal replacement.

Symptoms

Hydraulic fluid visible around sight window or under tractor
Rear lift weak or slow — especially under load
Power steering fades alongside hydraulic weakness
Fluid level dropping between services

📋 Fix — In Order

Identify the leak source — clean the tractor thoroughly then run it to find the active leak point. Common sources on L3010 are the sight window seal, rear axle seals, and loader valve connections
Clean hydraulic suction screen — a clogged screen causes weak hydraulics across all circuits simultaneously. Dealers see this as a routine L3010 fix
Replace hydraulic filter HHTA0-37710 and drain/refill with fresh Super UDT2
Inspect and replace leaking seals — sight window seal is a common failure point on the L3010
If lift weakness persists after fluid and filter service — hydraulic pump pressure test before condemning the pump. See our Kubota Hydraulic Pump Guide

See our Kubota Hydraulic Fluid Guide. DIY cost: $60–$300. Dealer cost: $300–$1,500.

Problem #2 — Loader Control Valve Detent Failure

💡 Repeat Failure Pattern: Owner language: “control valve broken twice,” “detent broke, sticky up/down.” The loader control valve detent on the L3010 wears out on high-use tractors — especially when the float function is used frequently. This is a wear item, not a manufacturing defect.

Symptoms

Loader control lever sticks in raise or float position
Lever auto-raises — won’t stay in selected position
Sticky up/down feel — lever doesn’t snap to detent positions cleanly
Float detent doesn’t engage or releases at wrong point

✓ Fix: Disassemble the loader control valve and replace the detent mechanism — approximately $200 in parts from the dealer. This is a medium-difficulty job requiring the valve to be removed and disassembled. Clean all internal valve passages during rebuild. If the valve has failed twice, upgrade to a quality aftermarket replacement rather than repeating the OEM detent. Confirm valve compatibility with your specific L3010 loader model.

DIY cost: $100–$300. Dealer cost: $400–$800.

🔧 Recommended Parts — L3010 Filter Kit

Oil Filter HH164-32430 — confirmed L3010 engine oil filter — View on Amazon →
Fuel Filter 15521-43160 — confirmed L3010 fuel filter — View on Amazon →
Air Filter TA040-93220 / TA040-93230 Inner & Outer 2-Pack — confirmed L3010 air filtration — View on Amazon →
Hydraulic Filter HHTA0-37710 — confirmed L3010 hydraulic filter — View on Amazon →
Super UDT2 2.5 Gallon — hydraulic/transmission fluid — View on Amazon →
Shell Rotella T6 15W-40 — engine oil for L3010 diesel — View on Amazon →

See our Kubota Filter Cross-Reference Master Chart and Hydraulic Filter Cross-Reference Guide for OEM-equivalent savings. As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #3 — Front Wheel Bearing / Seal Failure

⚠️ Safety Issue — Check Immediately: Owner language: “replace front bearing and seals on both wheels low hours.” Front wheel bearing failure on the L3010 happens earlier than expected on tractors with heavy loader use — the loader puts more stress on the front axle than the tractor was originally designed for in light utility use. Any front wheel wobble means stop and inspect immediately.

Symptoms

Noise from front wheel area — grinding or rumbling
Front wheel wobble or play when rocked at 12/6 and 3/9 o’clock
Gear oil weeping from front hub
Problem on both sides simultaneously — common after heavy loader use

✓ Fix: Jack and safely support the front axle. Check for hub bearing play before replacing seals. Press out old bearings and install new OEM bearings and seals. Replace bearings and seals together — doing one without the other leads to another early failure. Inspect front axle fluid level and condition while the hub is open. Refill with Super UDT2 or SAE 80W-90 per operator manual.

DIY cost: $100–$400. Dealer cost: $400–$1,000.

Problem #4 — HST Forward Drive Loss

⚠️ HST Model Specific: Owner language: “will not move forward after an hour, reverse fine.” Forward loss with reverse still working on the L3010 HST points to the forward relief valve or forward servo — not a complete HST pump failure. Check linkage and relief valves before any internal HST diagnosis.

Symptoms

HST forward drive lost — tractor won’t move forward
Reverse still functions normally
Problem developed gradually or appeared suddenly after extended use
HST pedal moves freely but no forward motion results

📋 Diagnosis — Step by Step

Check hydraulic fluid level and condition — low fluid causes HST to lose drive in one direction before the other
Inspect HST pedal linkage — confirm the pedal physically moves the HST servo when pressed forward. A disconnected or worn linkage causes no-forward with reverse intact
Check and swap the forward relief valve — if reverse works but forward doesn’t, swapping the forward and reverse relief valves is the first diagnostic step. If the problem follows the valve to the reverse side, the valve is confirmed bad
If linkage and relief valve are confirmed good — internal HST servo or charge pump diagnosis at dealer level. See our Kubota HST Transmission Guide

DIY cost: $300–$500. Dealer cost: $1,000–$2,000.

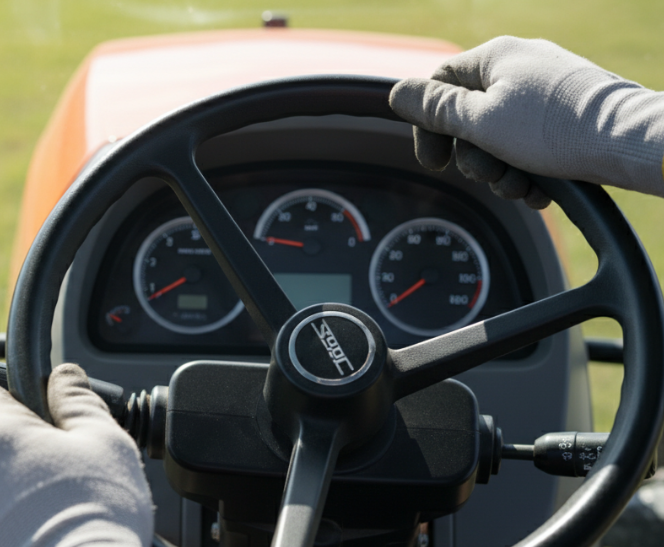

Problem #5 — Stiff Power Steering

Symptoms

Steering “gotten stiff” — requires noticeably more effort to turn
“Power steering seemed to go out” — loss of assist
Stiffness worse when warm or under load
Steering improves temporarily after topping up fluid

✓ Fix — In Order:

Check hydraulic fluid level — the L3010’s shared system means low fluid affects steering directly
Flush system and replace hydraulic filter HHTA0-37710 with fresh Super UDT2
Clean hydraulic suction screen — a clogged screen starves the steering circuit first under sustained demand
If stiff steering persists after fluid service — steering priority valve or pump pressure test. See our Kubota Power Steering Guide

DIY cost: $60–$200. Dealer cost: $300–$800.

Problem #6 — Engine Noise at RPM

💡 Diagnose Before Assuming Engine Failure: Owner language: “noise like tin loose at 2500 RPM.” A rattling or tinny sound at a specific RPM on the L3010 is almost always an external accessory or heat shield — not an internal engine problem. Check all external components before any engine diagnosis.

Inspect all heat shields and sheet metal panels — a loose heat shield produces an exact RPM-specific rattle that disappears above or below that speed
Check fan belt tension and condition — a slipping or fraying belt produces a tinny rattle at specific RPM ranges
Check valve lash if noise is a consistent tick at all RPMs — valve lash specification is in the operator manual for the D1305 engine
If knock or rapping is present — stop running immediately and test compression before any further diagnosis

DIY cost: $0–$200. Dealer cost: $200–$800.

Problem #7 — Loader Hose / Seat Degradation

Owner language: “front loader hoses failed,” “seat disintegrated.” Age-related failures on a 20+ year old tractor — rubber hoses crack and seat foam breaks down. Both are straightforward replacements that prevent more expensive damage.

Inspect all loader hydraulic hoses at the crimp collars and along the length for cracking or bulging — replace before they fail under pressure
Replace weeping hoses immediately — a failed loader hose under pressure causes hydraulic fluid loss and potential safety hazard
Replace seat cushion and suspension with aftermarket replacement — OEM seat foam on L3010 age-hardens and cracks after 15–20 years regardless of hours

DIY cost: $50–$200. Dealer cost: $200–$500.

🔧 Recommended Tools & Cross-Reference Guides

Digital Multimeter — electrical diagnosis — View on Amazon →
Hydraulic Pressure Gauge — pump and relief valve testing — View on Amazon →
Lucas Red N Tacky Grease — front axle and loader pivot lubrication — View on Amazon →
Nitrile Gloves — hydraulic and fuel system work — View on Amazon →
Kubota Filter Cross-Reference Master Chart — save 30–60% on L3010 filters — View Guide →
Hydraulic Filter Cross-Reference Guide — L3010 HHTA0-37710 alternatives — View Guide →
Kubota Fuel Filter Interchange Guide — L3010 fuel filter alternatives — View Guide →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Dealer vs DIY Cost — Kubota L3010 Common Repairs

Repair	DIY Cost	Dealer Cost	Savings
Hydraulic flush + filter + screen clean	$100–$300	$400–$800	$300–$500
Control valve detent rebuild	$100–$300	$400–$800	$300–$500
Front wheel bearing + seal replacement	$100–$400	$400–$1,000	$300–$600
HST relief valve swap/test	$100–$300	$400–$800	$300–$500
HST internal rebuild	$300–$600	$1,000–$2,000	$700–$1,400

Kubota L3010 Maintenance Schedule

Interval	Service Items
Every Use	Check engine oil • Check hydraulic fluid • Inspect loader hoses for weeping • Check under tractor for new leaks
50–100 Hours	Change engine oil and filter HH164-32430 • Replace fuel filter 15521-43160 • Bleed fuel system after filter change • Clean battery terminals and grounds • Inspect front wheel hub for play
200 Hours	Replace hydraulic filter HHTA0-37710 • Replace air filter TA040-93220/TA040-93230 • Clean hydraulic suction screen • Inspect loader control valve detent • Check front axle fluid
400 Hours	Drain and refill 10.5 gal hydraulic system with Super UDT2 • Change front axle fluid • Replace battery cables • Inspect all loader hoses at crimp collars • Inspect sight window seal for weeping

Frequently Asked Questions — Kubota L3010 Problems

Why won’t my L3010 HST move forward but reverse still works?

Check the HST pedal linkage first — confirm it physically moves the servo when pressed forward. If linkage is good, swap the forward and reverse relief valves. If the problem follows the swapped valve, the relief valve is confirmed bad. Problem stays on the forward side, internal servo diagnosis is needed.

How does the L3010 compare to the L3130?

The L3130 is the direct successor to the L3010 on the same Grand L10 platform. They share similar engines, transmissions, and filter part numbers. The L3130 has incremental updates over the L3010 — improved seat, minor styling changes — but the same problems and fixes apply across both models. See our Kubota L-Series Problems Guides for the newer generation.

What hydraulic fluid does the L3010 use?

Kubota Super UDT2 for the shared hydraulic/transmission system — approximately 10.5 gallons total capacity. Never substitute generic hydraulic oil. The front axle also uses Super UDT2 or SAE 80W-90 gear oil per the operator manual — approximately 2–3 quarts per side.

Is the L3010 a reliable tractor?

The L3010 has a solid reputation as a capable compact tractor. Its problems are almost entirely maintenance-related or age-related wear — hydraulic seals and screens, control valve detent wear, front wheel bearings from heavy loader use, and age-hardened hoses. Stay current on hydraulic fluid and filter service with Super UDT2, clean the suction screen every 200 hours, inspect loader hoses annually, and monitor front wheel bearing condition. Owners who maintain the L3010 properly report reliable service well past 3,000 hours.

🚜 Own a Kubota L3130? See our complete Kubota L3130 Problems Guide — HST bogging fix, weak hitch diagnosis, safety switch cut-out and confirmed filter part numbers for all L3130 HST and GST models.

🚜 Own a Kubota L3430? See our complete Kubota L3430 Problems Guide — front axle leak diagnosis, HST suction line protection, PTO clutch fix and confirmed filter part numbers for all L3430 DT, GST, HST and HSTC models.

Related Kubota L Series & Parts Guides

Kubota L2900 Problems Guide →

Same era L series

Kubota L3301 Problems Guide →

Newer generation L series

Kubota L3901 Problems Guide →

Current generation L series

Kubota Filter Cross-Reference Chart →

Save 30–60% on L3010 filters

Kubota HST Transmission Guide →

HST diagnosis and fixes

Used Kubota Inspection Guide →

What to check before buying used

The L3010’s most important maintenance habits are cleaning the hydraulic suction screen every 200 hours, staying current on hydraulic fluid and filter service with Super UDT2, inspecting the sight window seal and all loader hoses annually, and monitoring front wheel bearing condition on any tractor with heavy loader use. Most L3010 hydraulic complaints resolve with a system flush, screen cleaning, and fresh fluid before any pump or seal replacement. See our Kubota Filter Cross-Reference Master Chart for verified filter savings. For more DIY guides visit TractorPartsCentral.com.
