Kubota L3130 Problems: 7 Common Issues & Fixes (2026)

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

The most common Kubota L3130 problems are HST bogging under load, weak or slow 3-point hitch, safety switch shutdown, and fuel starvation masquerading as engine trouble. The L3130 came in both HST and gear (GST) versions. Confirmed filters: oil 70000-74035, fuel 15521-43160, hydraulic 6A320-59930. Use Super UDT2 for hydraulic/transmission fluid — approximately 10–11 gallon system. Most L3130 hydraulic and HST complaints resolve with fluid level check, filter replacement, and suction screen cleaning before any pump or transmission diagnosis.

✓ Kubota L3130 — No DPF / No DEF / HST and GST Available

The L3130 uses a Kubota D1503 3-cylinder diesel — no DPF, no DEF, no emissions aftertreatment. Available in HST and Glide Shift (GST) versions. Engine: approximately 32 gross HP. Hydraulic/transmission: shared system approximately 11 gallons dry capacity — Super UDT2. Produced from approximately 2003 to 2007. The L3130 is the direct successor to the L3010 on the Grand L10 platform. The L3430 is a closely related platform sibling with a larger engine — same basic chassis. Air filter part number not confirmed from public sources — verify at Kubota dealer by serial number.

Kubota L3130 Problems — Quick Reference Table

Problem	Symptom Pattern	DIY Difficulty	DIY Cost	Dealer Cost
HST bogging / weak drive	Bogs on hills, won’t move like it should	Easy–Medium	$60–$500	$500–$5,000
Weak / slow 3-point hitch	Only lifts at 2500+ RPM	Easy	$60–$200	$300–$1,500
Safety switch / cut-out	Wiring or switch kills fuel at HST pedal	Easy–Medium	$0–$150	$200–$600
Fuel starvation / engine bog	Bogs under load — fuel filter looks clean	Easy	$20–$200	$200–$700
PTO / GST clutch engagement	Herky-jerky, delayed clutch	Easy–Dealer	$100–$1,800	$2,000–$4,500
Hydraulic leaks / seepage	Weeping cylinders, loader hose leaks	Easy–Medium	$60–$500	$300–$2,000
Overheating / cooling restriction	Power loss as temperature climbs	Easy	$0–$60	$200–$600

The Kubota L3130 is a 32 HP compact utility tractor produced from approximately 2003 to 2007 as the successor to the L3010 on the Grand L10 platform. Available in HST and GST versions, the L3130 is a capable and durable tractor whose problems are almost entirely hydraulic restriction, fuel delivery, and electrical interlock faults — not catastrophic mechanical failures.

One owner described HST “bogging down” on hills under loader load — usually a restricted suction screen or clogged filter, not a failing pump. Another described the hitch “will not go up until engine RPM is 2500+” — classic post-service air trap or blocked filter rather than a bad hitch cylinder. A third traced a sudden no-run to a “wiring safety-switch issue that shut off fuel” — a $20 switch fix that looked like a major engine problem. The best L3130 troubleshooting sequence is always: fluid level, filter condition, suction leaks, electrical interlocks, then pressure testing.

🔌 Kubota L3130 Specs & Fluid Reference

Spec	Value
Engine	Kubota D1503 3-cylinder diesel — approximately 32 gross HP / 24 PTO HP (HST)
Transmission	HST or GST (Glide Shift)
Engine oil type	15W-40 diesel — API CF or higher
Hydraulic / transmission fluid	Kubota Super UDT2 — dry capacity ~11 gallons / refill ~10 gallons
Front axle fluid	Kubota-specified gear oil — verify in operator manual — do not overfill
Production years	~2003–2007 — Grand L10 platform — HST and GST versions

Problem #1 — HST Bogging / Weak Drive Power (Most Common)

⚠️ Most Common L3130 HST Complaint: Owner language: “bogging down,” “power loss,” “won’t move like it should.” HST bogging on the L3130 almost always traces to hydraulic restriction — dirty filters, clogged suction screen, low fluid, or a suction-side air leak — before any HST pump or servo issue. Note: some HST whine is normal on the L3130 and not a sign of failure.

Symptoms

Tractor bogs on hills or under loader load
Forward and reverse feel sluggish compared to normal
HST performs differently in forward vs reverse
Problem worsens as operating temperature increases

📋 Fix — In Order

Verify fluid level and type — confirm Super UDT2 is installed at correct level on level ground with engine off
Replace hydraulic filter 6A320-59930 — a clogged filter restricts HST charge pressure and causes exactly this bogging pattern
Inspect and clean suction screen — a partially clogged suction screen starves the HST charge pump before any other symptom appears
Check for kinked hoses or cracked suction lines — air ingestion on the suction side causes intermittent bogging that is hard to reproduce at idle
Warm up fully before demanding heavy HST work — cold thick fluid causes temporary bogging that clears after warmup
If bogging persists after filter and fluid service — pressure test charge circuit before condemning HST pump. See our Kubota HST Transmission Guide

See our Kubota HST Transmission Service Guide. DIY cost: $60–$500. Dealer cost: $500–$5,000.

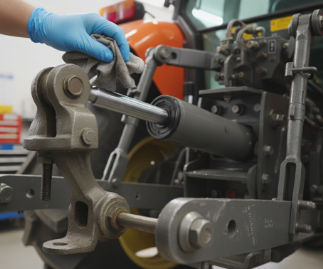

Problem #2 — Weak or Slow 3-Point Hitch

💡 Common After Fluid Service: Owner language: “hitch will not go up until engine RPM is 2500+.” Weak or RPM-dependent hitch after a fluid change on the L3130 almost always means air trapped in the system or a blocked filter — not a bad hitch cylinder. The loader working normally while the hitch is slow confirms the issue is in the hitch circuit, not the pump.

Symptoms

Hitch lifts slowly or barely lifts under load
Only lifts adequately at high RPM (2500+)
Problem appeared immediately after a fluid or filter service
Loader still works normally — hitch circuit isolated

✓ Fix — In Order:

Recheck fluid level — the L3130 dry capacity is ~11 gallons but refill after a change is ~10 gallons because old fluid remains. Under-filling after service is the most common cause of post-service hitch weakness
Re-prime system and cycle hitch 10+ times to purge air after any fluid service
Inspect the small return/bypass hose near the hydraulic filter — a kinked or blocked bypass hose causes hitch weakness while loader remains normal
If issue started after filter change — temporarily swap back to old filter to confirm new filter is not faulty or incorrectly seated
If hitch still lags after all the above — hydraulic pressure test and control valve condition inspection. See our Kubota 3-Point Hitch Guide

DIY cost: $60–$200. Dealer cost: $300–$1,500.

🔧 Recommended Parts — L3130 Filter Kit

Kubota L3130 Maintenance Filter Kit — confirmed oil 70000-74035, hydraulic 6A320-59930, and air filters — View on Amazon →
Fuel Filter 15521-43160 — confirmed L3130 fuel filter — View on Amazon →
Super UDT2 2.5 Gallon — hydraulic/transmission fluid — View on Amazon →
Shell Rotella T6 15W-40 — engine oil for L3130 diesel — View on Amazon →

Confirm filter numbers against Kubota parts lookup by serial number for your specific L3130 variant. See our Kubota Filter Cross-Reference Master Chart. As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

📐 Need a Parts Diagram?

Browse free Kubota parts diagrams and manuals — organized by model with interactive diagrams and downloadable PDFs for BX, B, and L series tractors.

View Free Parts Diagrams →

Problem #3 — Safety Switch / Fuel Solenoid Cut-Out

⚠️ Misdiagnosed as Engine Failure: Owner language: “wiring safety-switch issue that shut off fuel.” On the L3130 a safety switch or fuel solenoid fault that kills the engine looks identical to a catastrophic engine failure — but it’s a $20 switch or connector fix in most cases. Always test the safety circuit before any engine diagnosis.

Symptoms

Engine cuts out abruptly — especially when HST pedal is moved off neutral
No-start with no obvious cause after sudden shutdown
Intermittent cut-out that clears when tractor is cycled

✓ Fix — In Order:

Inspect seat switch, PTO switch, and HST neutral switch — all must be in correct position for the fuel solenoid to stay energized
Verify power at fuel shutoff solenoid with key on — no power means a wiring break or switch in the circuit. See our Kubota Fuel Shutoff Solenoid Guide
Wiggle-test the wiring harness while monitoring voltage at the solenoid — a broken wire under the body pan that makes intermittent contact is a confirmed L3130 fault pattern
Clean all connector pins in the safety switch circuit — corrosion causes intermittent faults that are hard to reproduce at the dealer

See our Kubota Safety Switch Guide. DIY cost: $0–$150. Dealer cost: $200–$600.

Problem #4 — Fuel Starvation Masquerading as Engine Trouble

💡 Check Fuel Before Transmission: Owner language: “engine bogs,” “fuel filter looks clean,” “low-pressure fuel.” Fuel starvation on the L3130 causes bogging and power loss under load that feels identical to HST or transmission trouble. Always troubleshoot fuel delivery before assuming a transmission or hydraulic problem when bogging occurs.

Check fuel flow from the line before the injection pump — remove the supply line and confirm a strong, steady, bubble-free stream
Replace fuel filter 15521-43160 even if it looks clean — a filter that flows at rest can restrict under sustained demand
Bleed the fuel system after any filter service — see our Fuel System Bleeding Guide
Inspect fuel hoses for internal collapse — a hose that looks fine externally can collapse under suction and restrict flow
Test lift pump output — a weak electric lift pump causes exactly this sustained-load bog while starting and idling fine

DIY cost: $20–$200. Dealer cost: $200–$700.

Problem #5 — PTO / GST Clutch Engagement Issues

💡 GST Model Specific: Owner language: “herky-jerky” forward/reverse transitions on GST machines. Delayed or rough engagement on the L3130 GST is usually clutch adjustment, hydraulic control, or wear — not a transmission failure. Start with pedal free play adjustment before any internal diagnosis.

Verify pedal free play and clutch adjustment — many GST engagement complaints resolve with correct free-play setting. See our Kubota Clutch Adjustment Guide
Check hydraulic fluid condition — degraded fluid affects GST engagement quality on the shared hydraulic system
Test whether engagement improves with temperature — if engagement gets better or worse as oil warms, a hydraulic control or clutch pack issue is indicated
If herky-jerky behavior is worsening — pressure test and clutch pack inspection at dealer level

DIY cost: $100–$1,800. Dealer cost: $2,000–$4,500.

Problem #6 — Hydraulic Leaks / Cylinder Seepage

⚠️ Hidden Cause of Weak Hydraulics: Owner language: “heavily weeping pistons.” Slow cylinder seepage on the L3130 is easy to miss but causes progressive hydraulic weakness and aeration over hours of work. Inspect all cylinders with engine running under load — drips that aren’t visible at rest appear under pressure.

Inspect all loader, 3-point, and remote cylinders for wet rods or drips at gland seals under load
Inspect loader hoses at crimp collars — age-cracked hoses on a 20-year-old L3130 are common and cause both leaks and aeration
Reseal leaking cylinders with a seal kit — cylinder resealing is DIY-accessible with a service manual. See our Kubota Cylinder Seal Guide
Replace cracked or weeping hoses before they fail under pressure

DIY cost: $60–$500. Dealer cost: $300–$2,000.

Problem #7 — Overheating / Cooling Restriction

Owner maintenance advice on the L3130 consistently emphasizes cooling system cleanliness — clogged radiator screens and packed fins cause power loss and derating before the temperature gauge ever reads hot.

Clean radiator stack from both sides with compressed air — blow from fan side outward to remove packed debris without pushing it deeper
Check fan belt tension — a slipping belt reduces airflow enough to cause heat buildup under sustained load
Inspect coolant condition — brown or rusty coolant means the cooling system needs a flush. See our Kubota Coolant Guide
If power loss increases as temperature climbs — don’t wait for the gauge to read hot. Address the cooling system before the engine enters thermal protection mode

DIY cost: $0–$60. Dealer cost: $200–$600.

🔧 Recommended Tools & Resources

Kubota Tractor Shop Manual — torque specs, service procedures, and wiring diagrams for L series tractors — View on Amazon →
Digital Multimeter — safety switch, solenoid, and alternator testing — View on Amazon →
Hydraulic Pressure Gauge — charge pressure and hitch circuit testing — View on Amazon →
Lucas Red N Tacky Grease — front axle and loader pivot lubrication — View on Amazon →
Nitrile Gloves — hydraulic and fuel system work — View on Amazon →
Kubota Filter Cross-Reference Master Chart — save 30–60% on L3130 filters — View Guide →
Hydraulic Filter Cross-Reference Guide — L3130 filter alternatives — View Guide →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Dealer vs DIY Cost — Kubota L3130 Common Repairs

Repair	DIY Cost	Dealer Cost	Savings
Hydraulic fluid + filter + screen clean	$100–$300	$400–$900	$300–$600
Fuel filter + bleed + lift pump	$20–$200	$200–$700	$180–$500
Safety switch + solenoid replacement	$20–$100	$200–$500	$180–$400
Cylinder reseal + hose replacement	$100–$500	$400–$2,000	$300–$1,500
HST diagnosis + repair	$300–$1,500	$1,500–$5,000	$1,200–$3,500
GST clutch pack rebuild	$400–$1,800	$2,000–$4,500	$1,600–$2,700

Kubota L3130 Maintenance Schedule

Interval	Service Items
Every Use	Check engine oil • Check hydraulic fluid • Inspect loader hoses and cylinders for weeping • Check radiator screen for debris
50–100 Hours	Change engine oil and filter 70000-74035 • Replace fuel filter 15521-43160 • Bleed fuel system after filter change • Clean battery terminals and grounds • Test all safety switches
200 Hours	Replace hydraulic filter 6A320-59930 • Replace air filter — verify part at dealer • Clean hydraulic suction screen • Blow out radiator from fan side • Inspect clutch free play (GST models)
400 Hours	Drain and refill ~10 gal hydraulic system with Super UDT2 • Change front axle fluid • Replace battery cables • Inspect all loader hoses at crimp collars • Pressure test hitch circuit if lift has been slow

Frequently Asked Questions — Kubota L3130 Problems

Why is my L3130 3-point hitch slow after a fluid change?

The L3130 dry capacity is ~11 gallons but refill after a change is ~10 gallons — under-filling is the most common cause of post-service hitch weakness. Recheck fluid level, re-prime by cycling all hydraulics 10+ times, and inspect the small bypass hose near the hydraulic filter. If the issue started immediately after putting in a new filter, temporarily swap back to the old one to rule out a faulty or misseated new filter.

How does the L3130 compare to the L3010 and L3430?

The L3130 is the direct successor to the L3010 on the same Grand L10 platform — same basic problems and fixes apply to both. The L3430 is a closely related platform sibling with a larger engine and slightly more power — essentially the same chassis with more HP. Parts and filter numbers overlap between all three but verify by serial number before ordering.

Is the HST whine on the L3130 normal?

Yes — some HST whine is normal on the L3130 and owners notice it from new. The distinction to watch for is whine that changes pitch under load, whine that has gotten louder over time, or whine accompanied by reduced drive power. Normal whine with full drive power is not a sign of HST failure.

Is the L3130 a reliable tractor?

The L3130 has a strong reputation as a capable compact tractor. Its problems are almost entirely hydraulic restriction, fuel delivery, and electrical interlock faults — not catastrophic mechanical failures. The best troubleshooting sequence is always fluid level, filter condition, suction leaks, electrical interlocks, then pressure testing. Owners who follow regular maintenance report reliable service well past 3,000 hours.

🚜 Own a Kubota L3830? See our complete Kubota L3830 Problems Guide — starting/shutoff diagnosis, GST solenoid fix, hydraulic failure and fuel filter housing leak repair for all L3830 DT, GST, and HST models.

🚜 Own a Kubota L3430? See our complete Kubota L3430 Problems Guide — front axle leak diagnosis, HST suction line protection, PTO clutch fix and confirmed filter part numbers for all L3430 DT, GST, HST and HSTC models.

🚜 Own a Kubota L3710? See our complete Kubota L3710 Problems Guide — front axle leak diagnosis, HST grinding fix, safety switch no-start and confirmed filter part numbers for all L3710 DT, GST, HST and HSTC models.

Related Kubota L Series & Parts Guides

Kubota L3010 Problems Guide →

Direct predecessor — same platform

Kubota L3301 Problems Guide →

Newer generation L series

Kubota L3901 Problems Guide →

Current generation L series

Kubota Filter Cross-Reference Chart →

Save 30–60% on L3130 filters

Kubota HST Service Guide →

UDT2 vs alternatives + service steps

Used Kubota Inspection Guide →

What to check before buying used

The L3130’s most important maintenance habits are cleaning the hydraulic suction screen every 200 hours, staying current on hydraulic fluid and filter service with Super UDT2, always re-priming and checking fluid level after any fluid service, testing safety switches annually, and cleaning the radiator screen at every use. The best L3130 troubleshooting sequence is always: fluid level, filter condition, suction leaks, electrical interlocks, then pressure testing — most L3130 complaints resolve before reaching that last step. See our Kubota Filter Cross-Reference Master Chart for verified filter savings. For more DIY guides visit TractorPartsCentral.com.

This article contains affiliate links. TractorPartsCentral.com is a participant in the Amazon Services LLC Associates Program. When you purchase through our links, we may earn a small commission at no additional cost to you. All product recommendations are based on fit, quality, and owner feedback.

2 thoughts on “Kubota L3130 Problems: 7 Common Issues & Fixes (2026)”

Karl Limmer says:

July 22, 2026 at 5:48 pm

The symptom my 2003 L3010 is experiencing is with the hydraulic steering. to turn to the left the steering is not lost, however it is necessary to keep turning the steering wheel to the left to make it go straight ahead. This seems to be more prevalent when it is hot,
although when the tractor is not running, the steering wheel can be turned completely around to the left with some resistance, however trying to turn the steering wheel to the right, it will not turn more that maybe one eighth of a turn before stopping.

I would be interested to know how to fix this problem in my home shop if the fix is not too complicated.
Karl Limmer

Reply
1. Mark Crandall says:

  July 23, 2026 at 2:03 pm

  Hey Karl,
  Subject: Re: L3010 Hydraulic Steering Issue

  Hi [Customer Name],

  Thanks for the detailed description — that level of detail actually helps a lot with diagnosis.

  Your L3010 uses fully hydrostatic steering, meaning there’s no mechanical link between the steering wheel and front wheels — everything runs through hydraulic fluid directed by an orbital control valve.

  What’s likely causing the drift: The need for constant left correction, especially worse when the tractor is hot, is a classic sign of wear inside the orbital control valve. As it wears, fluid can bypass internally even when the wheel is centered, causing gradual drift. Hot hydraulic fluid is thinner than cold fluid, so it leaks past worn internal clearances more easily — which lines up exactly with your “worse when hot” observation.

  On the limited right-turn (engine off): This one’s worth checking separately. With the engine off, turning the wheel is essentially hand-pumping fluid through the valve — it should still move, just with more resistance. Stopping after only 1/8 turn suggests something may be physically limiting movement on that side — possibly the tie rod ends, drag link, or the steering cylinder itself sitting near a mechanical limit. I’d treat this as a real lead worth inspecting, though I want to be upfront that I haven’t found a documented case matching this exact combination of symptoms, so it’s an educated hypothesis rather than a confirmed diagnosis.

  Suggested first steps, in order of easiest/cheapest:

  Check hydraulic fluid level and condition — low or old fluid can affect valve response, and it’s a 10-minute check
  Inspect tie rod ends and drag link for looseness, binding, or visible misalignment
  Look at the steering cylinder itself — does it appear centered when wheels point straight, or does it look shifted?
  If those check out clean, the orbital valve itself may need a seal kit rebuild ($85–150 in parts) or, in worse cases, replacement

  One honest caution: steering is a safety-critical system. If you find real mechanical binding or looseness beyond normal wear, I’d recommend at least a professional inspection before continuing to operate the tractor, even if you plan to handle the actual repair yourself.

  Happy to help you track down the specific parts once you’ve narrowed down which of these it is.

  Best,
  Mark Crandall
  TractorPartsCentral.com

  Reply
