⚡ Quick Answer

The most common Kubota L3400 problems are hydraulic hose cracks causing loader shudder, PTO that won’t fully disengage, and intermittent no-crank from safety switch faults. Use this pattern to diagnose: jerky loader or shudder = inspect 90-degree return hose for cracks first; PTO still spinning after lever off = linkage adjustment then internal clutch; no crank = fuse, seat switch, HST neutral switch in that order; fuel gauge stuck = test sender connection at tank. The hydraulic return hose crack is the L3400’s signature recurring issue — inexpensive to fix and commonly found on tractors with 150+ hours. Applies to all L3400 gear and HST models.

✓ Kubota L3400 — No DPF / No DEF

The L3400 uses a Kubota 3-cylinder diesel engine with no DPF, no DEF, and no emissions aftertreatment system. All L3400 problems covered here are purely mechanical, hydraulic, or electrical. Available in 2WD gear, 4WD gear, and 4WD HST configurations. The L3400 shares the same filter kit as the L3200 and L3800 — confirmed filter part numbers apply across this entire platform family.

Kubota L3400 Problems — Quick Reference Table

Problem	Symptom Pattern	DIY Difficulty	DIY Cost	Dealer Cost
Fuel gauge stuck / inaccurate	Reads empty or full when wrong	Easy–Medium	$0–$80	$150–$350
Hydraulic hose crack / leak	Loader shudder, wet hose, fluid loss	Easy	$20–$80	$150–$400
PTO won’t disengage	PTO shaft still spinning after lever off	Easy–Hard	$0–$600	$1,500–$4,000
No-crank / safety switch fault	Dead starter, click only, no crank	Easy–Medium	$0–$60	$150–$400
Jerky hydraulics / loader shudder	Hesitation, shudder, uneven lift	Easy	$20–$100	$200–$500
Control placement / accidental switch	Knee hits light switch, controls awkward	Easy	$0–$30	N/A — operator fix
Crunchy gear shifting	Grinds even when stopped	Easy	$0–$50	$200–$600

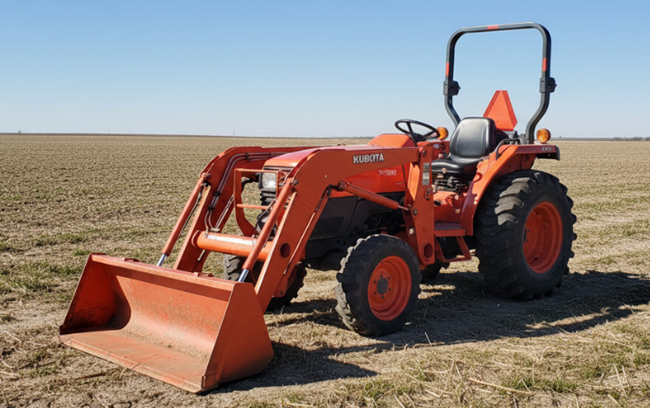

The Kubota L3400 is a 34 HP compact utility tractor produced in the mid-2000s in 2WD gear, 4WD gear, and 4WD HST configurations. It sits in the same L-series compact utility family as the L3200 and L3800 and shares the same filter kit across all three models. Owner reviews on TractorByNet are generally positive — one owner ran his L3400 HST for 9 years and 506 hours reporting only the hydraulic hose issue as a notable problem.

The hydraulic return hose crack is the L3400’s most reported mechanical issue — a cracked 90-degree bend hose causing loader shudder that one owner discovered at just 150 hours. The PTO not disengaging and safety switch no-crank faults round out the top three. All are inexpensive to diagnose and fix when caught early. This guide covers all 7 problems with confirmed filter part numbers, fluid specs, and honest DIY versus dealer cost comparisons.

🔌 Kubota L3400 Specs & Fluid Reference

Spec	Value
Engine	Kubota 3 cylinder diesel — 34 HP, 1.6L
Production	Approximately 2004–2010
Transmission options	2WD gear, 4WD gear, or 4WD HST
Engine oil type	15W-40 above 32°F, 10W-30 below — API CF or higher
Engine oil capacity	Verify in operator manual — check dipstick after fill
Hydraulic / transmission fluid	Kubota UDT or Super UDT2 — never substitute generic hydraulic oil
Hydraulic / transmission capacity	Approximately 7.3 US gal — verify in operator manual
Front axle fluid	Kubota UDT or Super UDT2 or SAE 80W-90 — approximately 4.8 qt

Problem #1 — Fuel Gauge Stuck or Inaccurate

Symptoms

Gauge stays on empty even with a full tank
Reads full when tank is nearly empty — no warning before running out
Gauge moves intermittently — works sometimes, sticks others
Problem appeared gradually over hours of use

Root Causes — In Order of Likelihood

Poor connection at fuel sending unit connector — most common cause
Faulty fuel sending unit — float stuck or resistance element worn
Bad ground at gauge cluster — shared ground causing erratic reading
Faulty fuel gauge itself — less common than sender fault

📋 Diagnosis — Step by Step

Check sender connector first — locate fuel sending unit at tank, unplug connector and clean with electrical contact cleaner. Reconnect and test gauge — many L3400 gauge issues resolve with connector cleaning at zero cost
Test sender resistance — with tank empty and full, resistance should change measurably. Constant resistance regardless of fuel level confirms failed sender
Check gauge ground — poor ground at instrument cluster causes erratic readings. Clean cluster ground connection
Replace sender if resistance tests out of spec — verify part number at Kubota dealer using serial number before ordering

See our Kubota Fuel Gauge Guide. DIY cost: $0–$80. Dealer cost: $150–$350.

Problem #2 — Hydraulic Hose Crack / Leak (Signature L3400 Issue)

⚠️ Most Reported L3400 Mechanical Issue: One long-term L3400 owner reported running his tractor for 9 years and 506 hours with only one notable mechanical issue — a cracked 90-degree hydraulic return hose causing loader shudder. Another owner found a split suction hose at just 150 hours. The tight 90-degree bend on the return hose flexes repeatedly under vibration and eventually cracks. This is a $20–$40 hose replacement that most owners discover only after the loader starts shuddering.

Symptoms

Loader shudder or jerky movement — fluid aeration from cracked hose
Wet hose or oil seeping at a bend in the hydraulic line
Hydraulic fluid level slowly dropping with no obvious external leak
Sluggish loader or hitch — fluid loss reducing system pressure

Root Causes

Age hardening and fatigue cracking at the tight 90-degree return hose bend
Vibration causing repeated flex at the same point until hose fails
Suction hose splitting — less common but reported at low hours

✓ Fix: Inspect the hydraulic return hose at its 90-degree bend for cracking or seeping — clean the area with degreaser first to locate the exact source. The return hose is not a pressurized line so replacing it involves minimal fluid loss. One owner confirmed the repair was easy and the hose cost approximately $34 at the dealer. After replacement refill hydraulic fluid with Super UDT2 to the sight glass mid-point and cycle the loader 10+ times to purge any air that entered during the leak.

See our Kubota Hydraulic Hose Guide. DIY cost: $20–$80. Dealer cost: $150–$400.

🔧 Recommended Parts — L3400 Filter Kit

Oil Filter HH164-32430 — L3400 engine — View on Amazon →
Hydraulic Filter HH3A0-82623 — L3400 hydraulic system — View on Amazon →
Fuel Filter 6A320-59930 — L3400 fuel system — View on Amazon →
Air Filter Kit TA040-93220/93230 — L3400 inner and outer — View on Amazon →
Super UDT2 2.5 Gallon — OEM spec hydraulic/transmission fluid — View on Amazon →
Shell Rotella T6 15W-40 — engine oil — View on Amazon →

These filters are confirmed across the L3200/L3400/L3800 platform family. Verify against your serial number at a Kubota dealer before ordering. As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #3 — PTO Won’t Fully Disengage

⚠️ Safety Issue — Stop Immediately: A PTO shaft that keeps spinning after the lever is moved to the off position is a serious safety hazard. Never approach the rear of the tractor or attach/detach implements until you have confirmed the PTO shaft has stopped completely. Shut engine off and visually confirm PTO is stationary before any rear work.

Symptoms

PTO shaft continues rotating after lever is moved to off position
PTO slows but does not fully stop — dragging rather than fully disengaging
Owners associate it with heat-related wear on clutch packs
Problem worsens progressively over time

Root Causes — In Order of Likelihood

PTO lever linkage not fully traveling to disengaged position — check adjustment first
Worn PTO clutch pack — heat from prolonged high-load PTO use
Warped clutch internals from heat

📋 Diagnosis — Step by Step

Check PTO lever linkage travel — confirm the lever moves fully to the off position and that the cable or rod linkage fully actuates the PTO clutch mechanism. Adjustment resolves many L3400 PTO complaints without any parts
Inspect linkage cable or rod — stretched cable or worn rod end reduces lever travel and prevents full disengagement
If linkage is correct and PTO still drags — internal clutch pack wear is confirmed. This requires tractor splitting and is dealer-level repair on most L3400 configurations

See our Kubota PTO Problems Guide. DIY cost: $0–$600 linkage to parts. Dealer cost: $1,500–$4,000 if clutch pack replacement required.

Problem #4 — No-Crank / Safety Switch Fault

Symptoms

Dead starter — key turns, dash lights on, complete silence
Single click then nothing — battery or relay fault pattern
Intermittent — starts fine most days then nothing after sitting
Engine cranks but will not fire — air in fuel after filter change

Root Causes — In Order of Likelihood

Blown fuse — first thing to check
Seat switch not actuating — most common safety switch fault
PTO safety switch misadjusted or failed
HST pedal neutral switch out of adjustment (HST models)
Starter relay contacts worn or corroded
Weak battery — single click from insufficient current

📋 Diagnosis — Step by Step

Check fuses first — locate fuse box and inspect all fuses. A blown fuse is the cheapest and fastest fix
Test battery under load — battery must hold above 9.6V during cranking. A single click confirms insufficient current
Test seat switch — hold seat switch down manually while turning key. If it starts, seat switch is the fault
Verify PTO fully disengaged — PTO lever must be completely off for interlock to allow start
Check HST neutral switch (HST models) — pedal must be in full neutral for switch to close
Clean all switch connectors and battery grounds — corroded connections cause intermittent no-crank

See our Kubota Safety Switch Guide and Kubota Won’t Start Guide. DIY cost: $0–$60. Dealer cost: $150–$400.

Problem #5 — Jerky Hydraulics / Loader Shudder

Symptoms

Loader hesitates or shudders during lift cycle
3-point hitch movement is uneven or bouncy
Hydraulic response inconsistent — works smoothly then shudders
Often appears alongside the hydraulic hose crack issue

Root Causes — In Order of Likelihood

Cracked return hose allowing air ingestion — see Problem #2
Low hydraulic fluid level
Air in system after fluid service
Clogged hydraulic filter restricting flow

✓ Fix: Inspect the hydraulic return hose at its 90-degree bend first — this is the most common L3400 cause of loader shudder. Check fluid level and top up with Super UDT2. Replace hydraulic filter HH3A0-82623 if overdue. Purge air by cycling loader through full range 10+ times at low RPM after any fluid service or hose repair. Shudder that clears after purging confirms air was the cause.

See our Kubota Loader Won’t Lift Guide. DIY cost: $20–$100. Dealer cost: $200–$500.

Problem #6 — Control Placement / Accidental Switch Activation

Symptoms

Light switches activated accidentally when entering or exiting — knee contact
Some controls feel poorly positioned for service access
Not a mechanical failure — a usability and awareness issue

💡 Operator Awareness Fix: This is a design characteristic rather than a mechanical defect — owners who know about it adapt quickly. The light switches on the L3400 are positioned where knee contact during mount/dismount can activate them. Develop the habit of checking switch positions before and after mounting. If a switch is repeatedly hit and shows wear, inspect contacts for reliability. Add a small guard if needed. This complaint does not require any dealer visit.

DIY cost: $0–$30 for optional guarding. Dealer cost: N/A — operator awareness fix.

Problem #7 — Crunchy Gear Shifting (Gear Models)

Symptoms

Gear changes crunch even when tractor is fully stopped
Lever requires excessive force to move between ranges
Grinding is inconsistent — sometimes smooth, sometimes crunchy

Root Causes

Clutch free-play out of adjustment — most common cause
Incomplete clutch release — clutch not fully disengaging before shift
Low or wrong transmission fluid

✓ Fix: Check and adjust clutch free-play at the pedal — this resolves most L3400 crunchy shift complaints at zero parts cost. Free-play should be 20–30mm at pedal tip — verify exact spec in operator manual. Also verify correct shift technique — the L3400 gear transmission requires a complete full stop and full clutch depression before range changes. Check transmission fluid level and top up with Super UDT2 if low. Only proceed to internal diagnosis if clutch adjustment and correct technique do not resolve the grinding.

See our Kubota Clutch Adjustment Guide. DIY cost: $0–$50. Dealer cost: $200–$600.

🔧 Recommended Tools — L3400 Diagnosis

Digital Multimeter — safety switch and sender testing — View on Amazon →
Lucas Red N Tacky Grease — PTO linkage and pivot lubrication — View on Amazon →
Nitrile Gloves — hydraulic and fuel system work — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Dealer vs DIY Cost — Kubota L3400 Common Repairs

Repair	DIY Cost	Dealer Cost	Savings
Hydraulic return hose	$20–$80	$150–$400	$130–$320
Safety switch / fuse / ground	$0–$60	$150–$400	$150–$340
Hydraulic fluid + filter service	$60–$150	$250–$500	$190–$350
Clutch adjustment (gear models)	$0	$150–$300	$150–$300
Fuel sender replacement	$20–$80	$150–$350	$130–$270
PTO clutch pack rebuild	$200–$600 parts	$1,500–$4,000	$1,300–$3,400

Based on typical U.S. dealer rates of $120–$180/hr. Use our Tractor Repair vs Replace Calculator for major repair decisions.

Kubota L3400 Maintenance Schedule

Interval	Service Items
Every Use	Check engine oil level • Check hydraulic fluid level • Inspect hydraulic hoses at bends for seeping • Verify PTO fully stops after disengagement
50–100 Hours	Change engine oil and filter HH164-32430 • Replace fuel filter 6A320-59930 • Bleed fuel system after filter change • Inspect 90-degree return hose bend for cracking • Check clutch free-play (gear models)
200 Hours	Replace hydraulic filter HH3A0-82623 • Replace air filter TA040-93230 • Test fuel gauge sender connection • Inspect all safety switch connectors • Clean battery terminals and grounds
400 Hours	Drain and refill hydraulic/transmission fluid with Super UDT2 • Change front axle fluid • Replace inner air filter element • Inspect PTO linkage travel and adjustment • Inspect all hydraulic hoses and replace any showing cracking

Frequently Asked Questions — Kubota L3400 Problems

How does the L3400 compare to the L3200 and L3800?

All three are closely related Kubota compact utility L-series tractors. The L3200 is the lighter lower-HP sibling at approximately 24.5 HP, the L3400 steps up to 34 HP, and the L3800 is a physically larger machine at approximately 30+ HP with a beefier chassis and stronger loader options. All three share the same filter kit — oil filter HH164-32430, hydraulic filter HH3A0-82623, fuel filter 6A320-59930, and air filter TA040-93230. The L3400 is best understood as the mid-range model in this L-series cluster, sitting between the lighter L3200 and the heavier L3800.

Why does my L3400 loader shudder?

Loader shudder on the L3400 is most commonly caused by a cracked hydraulic return hose at its 90-degree bend — this is the model’s signature mechanical complaint. The tight bend flexes under vibration and eventually cracks, allowing air into the hydraulic system that causes the shudder. Inspect the return hose at the bend with the engine off and a flashlight — clean the area with degreaser first to see seeping clearly. The hose is a return line not under full system pressure, so replacement is straightforward and one owner confirmed it cost approximately $34 at the dealer. After replacement purge air by cycling the loader 10+ times at low RPM.

My L3400 PTO won’t stop spinning — is it safe to use?

No — a PTO that won’t fully disengage is a serious safety hazard. Do not approach the rear of the tractor or work near the PTO until you have shut off the engine and confirmed the shaft is completely stationary. Check the PTO lever linkage adjustment first — the lever may not be fully traveling to the disengaged position due to a stretched cable or worn rod end, and this is a free fix. If the linkage is correct and the PTO still drags, internal clutch pack wear requires dealer-level teardown. Do not continue operating until the issue is resolved.

What are the confirmed filter part numbers for the L3400?

The L3400 uses the same filter kit as the L3200 and L3800 platform family: oil filter HH164-32430, hydraulic filter HH3A0-82623, fuel filter 6A320-59930, and air filter kit TA040-93220/93230 inner and outer. Change oil filter every 50–100 hours, fuel filter every 100 hours, hydraulic filter every 200 hours, outer air filter every 200 hours, and inner air safety element every 400 hours. Always verify against your serial number at a Kubota dealer before ordering as mid-run production updates can affect exact fitment.

Is the L3400 gear or HST transmission better?

Both are reliable on the L3400 with different complaint profiles. Gear models are associated with crunchy shifting when clutch free-play is out of adjustment or when range changes are attempted without a complete stop — both operator and adjustment issues rather than mechanical failures. HST models are associated with leakage, noisy or jerky operation when fluid is low or dirty, and the HST pedal neutral switch causing intermittent no-crank. Gear owners generally report more direct power feel and simpler maintenance. HST owners value the convenience for loader cycles and mowing turns.

Why does my L3400 fuel gauge read wrong?

A stuck or inaccurate fuel gauge on the L3400 almost always traces to the fuel sending unit connection at the tank rather than a failed gauge or sender. Unplug the sender connector, clean with electrical contact cleaner, reconnect, and test — many L3400 gauge complaints resolve at zero cost with this step. If cleaning doesn’t fix it, test sender resistance with a multimeter: resistance should change measurably between empty and full. Constant resistance regardless of fuel level confirms a failed sender float. Check the gauge ground connection at the instrument cluster before replacing the sender — a bad ground causes the same symptom.

Is the L3400 a reliable tractor?

One long-term L3400 owner ran his HST model for 9 years and 506 hours reporting only the hydraulic return hose crack as a notable mechanical problem — that is an exceptional reliability record for any compact utility tractor. The L3400’s reputation is excellent when hydraulic fluid is kept fresh, filters are changed on schedule, and the return hose is inspected at each service. The recurring complaints — fuel gauge sender, safety switch no-crank, PTO linkage adjustment, and crunchy gear shifts — are all inexpensive operator-level fixes. Regular Super UDT2 fluid changes, 50-100 hour oil service, and annual hose inspection prevent the majority of reported L3400 problems.
