⚡ Quick Answer

The L3901 is a capable compact tractor best suited for 3–15 acres and 5–6 ft implements. The MX5400 is a full step up in every category — more horsepower, more hydraulic flow, stronger loader, heavier chassis, and a factory cab option — making it the right choice for 15–80 acres, 6–7 ft implements, and heavier loader work. Both are Tier 4 Final DPF tractors. If you regularly push 6-ft cutters through heavy brush, handle round bales, or do serious loader work, the MX5400 is worth the price jump. If your work stays within lighter chores on smaller acreage, the L3901 saves you money without giving up what you need.

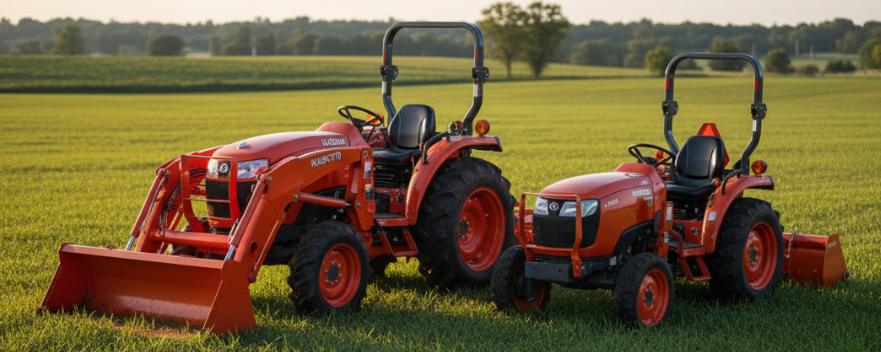

The Kubota L3901 and MX5400 are two of the most frequently cross-shopped tractors in the compact-to-utility transition zone. The L3901 tops out Kubota’s L series at 37.5 gross HP, while the MX5400 starts the MX series at 55.5 gross HP — but the real differences go well beyond the horsepower gap. Weight, loader capacity, hydraulic flow, hitch class, and cab availability all separate these two machines in ways that matter on the job.

This guide covers every meaningful spec difference, real-world owner experience, implement sizing, service intervals, and the honest answer to which tractor belongs on your property. No padding — just the information you need.

L3901 vs MX5400 — Full Spec Comparison

Spec	L3901	MX5400
Engine	D1803-CR-E4, 1.8L 3-cyl	V2403-CR-E4, 2.4L 4-cyl
Gross HP	37.5 hp	55.5 hp
PTO HP (gear)	32.1 hp	46.5 hp
PTO HP (HST)	30.6 hp	46.5 hp
Hydraulic Flow (implement)	6.3 gpm	9.5 gpm
Total Hydraulic Flow	~10.1 gpm	~14.4 gpm
3-Point Lift @ 24″	1,433 lb	2,310 lb
Hitch Category	Cat I	Cat II/I combo
Operating Weight	2,590–2,778 lb	3,474–4,268 lb
Wheelbase	63.3 in	74.6 in
Ground Clearance	~13–14 in	~15.2 in
Fuel Tank	11.1 gal	13.5 gal (ROPS)
Transmission Options	8F/8R gear or 3-range HST	8F/8R gear or 3-range HST
Factory Cab Available	❌ No	✅ Yes
Emissions	Tier 4 Final — DPF/DOC	Tier 4 Final — DPF/DOC
New Price (approx)	~$27,000–$35,000	~$35,000–$50,000+

⚠️ Important: Both the L3901 and MX5400 are Tier 4 Final DPF tractors. The L3901 is not a pre-emissions machine. Both require the same DPF care — run at 2,200+ rpm and let regens complete.

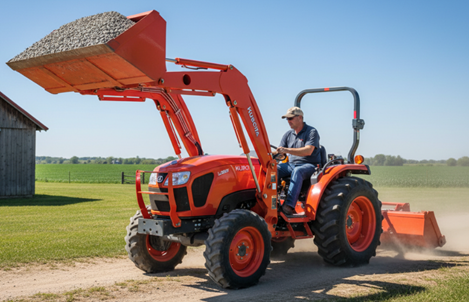

Loader Comparison — LA525 vs LA1065

The loader gap between these two tractors is significant — and for many buyers it’s the deciding factor.

Spec	L3901 — LA525	MX5400 — LA1065
Max Lift Height (pivot pin)	~94 in	~112–113 in
Lift Capacity @ Max Height	~1,431 lb	~2,361 lb
Lift Capacity @ 59 in	~820 lb forward	~2,974 lb
Dump Reach at Max Height	~25 in	Greater reach

LA525 (L3901) — Real Limits

Handles a full 60-inch bucket of gravel or manure well
6-ft buckets and round bales push its limits
Heavy pallet loads are marginal — keep them light
Great for general loader work under 1,200 lb

LA1065 (MX5400) — Real Capability

Full 6-ft bucket of dense material — no problem
Round bales handled safely and confidently
Heavier pallet loads with room to spare
Extra reach and height for dump truck loading

Where the Differences Actually Show Up

PTO Power — The Biggest Real-World Gap

The jump from 30–32 PTO hp to 46.5 PTO hp is enormous in practice. The MX5400 holds RPM and ground speed where the L3901 must slow down or raise the implement to avoid bogging:

MX5400 pulls ahead here

6–7 ft rotary cutters in thick grass or brush
6–7 ft tillers in clay or deep cuts
7 ft snow blowers in heavy wet snow
Heavy flail mowers and finish mowers
PTO work at sustained high load for long hours

L3901 handles these fine

5 ft rotary cutter on pasture
5–6 ft finish mower on maintained ground
5 ft tiller in lighter soils
Standard box blade and grading work
General property maintenance chores

Weight and Traction

The MX5400 is roughly 800–1,400 lb heavier bare than the L3901. In real use that weight means less tire spinning when digging into packed soil, better stability with heavy loader loads, and more traction on hills. However, it also means more turf damage on soft ground and a heavier trailer requirement for transport.

Hydraulic Flow — Speed and Feel

At 9.5 gpm implement flow vs 6.3 gpm, the MX5400’s loader and 3-point cycle times are noticeably faster under load. Multi-functioning the loader and steering simultaneously feels smoother and more controlled on the MX5400 — especially important during intensive loader work.

Factory Cab — A Clear Separator

The L3901 is ROPS-only — Kubota does not offer a factory cab. Buyers wanting climate control must add an aftermarket soft or hard cab from companies like Curtis or Sims. In contrast, the MX5400 is available as a full factory cab model (MX5400HSTC) with heat and A/C, at a $5,000–$8,000 premium over the equivalent ROPS spec. If a factory cab matters to you, the choice is made.

Transmission — Independent PTO Advantage

Both tractors offer 8F/8R gear and 3-range HST options. However, the MX5400 uses an independent wet-clutch PTO engaged by electro-hydraulic control — meaning you don’t clutch to engage the PTO. The L3901 uses a dry dual-stage clutch. For heavy PTO loads, frequent PTO cycling, and long hours, the MX5400’s system is more robust and forgiving.

💡 Parts Note: Engine oil filters, fuel filters, and hydraulic filters are not interchangeable between the L3901 and MX5400 — different engines, different part numbers. Don’t expect to stock one set of filters for both.

Implement Sizing Guide

Implement	L3901	MX5400
Rotary Cutter	5 ft ideal, 6 ft light conditions	6 ft comfortable, 7 ft moderate material
Box Blade	5 ft heavy-duty, 6 ft medium-duty	6–7 ft heavy-duty
Tiller	5 ft ideal, 6 ft light soils/shallow	6–7 ft, 7 ft light soils
Finish Mower	5–6 ft	6–7 ft
Rear Blade	5–6 ft	6–7 ft
Round Bales	Marginal — loader at limit	Comfortable
Hay Equipment	Not recommended	Light hay tools — tedders, rakes, small square balers

Who Is Each Tractor Built For?

✅ Choose the L3901 if you…

Have 3–15 acres of mixed chores
Run 5 ft implements regularly, occasionally 6 ft
Don’t handle round bales or do serious hay work
Need a nimble tractor for tight spaces and lawns
Want to save $8,000–$15,000 vs a comparable MX5400
Transport frequently and want a lighter trailer load
Don’t need a factory cab
Are buying used — L3901 has a large, active used market

✅ Choose the MX5400 if you…

Have 15–80 acres with real farm work
Run 6–7 ft implements regularly
Handle round bales or light hay equipment
Do serious loader work — heavy pallets, dense material
Want a factory cab for year-round comfort
Plan to keep the tractor long-term and want headroom
Do livestock chores requiring reliable heavy lifting
Are regularly pushing the L3901’s power limits now

⚠️ The Regret Pattern — What Owners Actually Report

Owner forums tell a consistent story: L3901 owners who step up to an MX5400 almost never regret it. Common triggers include not being able to lift a loaded pallet safely, lacking enough power for 6-ft cutters in heavy brush, and feeling underpowered for expanding acreage or livestock work.

Going the other direction is rare. The main MX5400 regret is buying too big for a small manicured property where the tractor’s weight causes turf damage and feels unwieldy around trees and tight spaces. The sweet spot: under 10 acres of lighter chores → L3901. Over 15–20 acres or any regular bale/heavy brush work → MX5400.

Service Intervals — Both Models

Both tractors share nearly identical service schedules despite different engines. The key difference is that filters and fluids are not interchangeable — each engine and hydraulic system has its own part numbers.

Service Item	First Service	Regular Interval
Engine oil & filter	50 hours ⭐	Every 200 hours or annually
Hydraulic/transmission filter	50 hours ⭐	Every 300–400 hours
Hydraulic fluid	—	Every 400 hours or 2 years
Fuel filter	—	Every 400 hours
Air filter	Inspect at 50 hours	Inspect every 50 hours, replace as needed
Valve adjustment	—	~800–1,200 hours
DPF ash cleaning	—	3,000–5,000 hours (ECU-monitored)

🔧 Service Parts — L3901 & MX5400

Shell Rotella T6 5W-40

Full synthetic diesel oil compatible with both the D1803 and V2403 engines.

View on Amazon →

Kubota Hydraulic Filter ⭐

Critical 50-hour first change on both models. Verify your exact part number before ordering.

View on Amazon →

OBD2 Diesel Scan Tool

Read DPF fault codes on both models — essential for diagnosing regen issues before they escalate.

View on Amazon →

Fuel Filter 2-Pack

Verify fitment for your model. Replace every 400 hours on both the L3901 and MX5400.

View on Amazon →

⚠️ Affiliate Disclosure: We may earn a commission from qualifying purchases at no extra cost to you.

DPF — Both Tractors Have It

A common misconception is that the L3901 is a pre-emissions tractor. It is not. Both the L3901 (D1803-CR-E4) and MX5400 (V2403-CR-E4) are Tier 4 Final engines using DOC + DPF after-treatment systems.

L3901 DPF Reality

L3901 owners doing lots of short-interval, low-load chores — idling, short loader hops, light mowing — are more likely to see frequent regens or DPF warnings. The fix is the same as any Tier 4 tractor: run at higher RPM and let regens complete without cancelling.

MX5400 DPF Reality

The MX5400 is typically used in heavier, longer-duration work which actually suits DPF systems better — sustained load at higher RPM keeps the DPF cycling properly. DPF issues on the MX5400 are almost always operator-habit related, not mechanical failures.

For full DPF guidance including warning light sequences, forced regen procedures, and cleaning costs, see our Kubota DPF Cleaning Guide.

Price Comparison — New & Used

Configuration	L3901	MX5400
New with loader (ROPS)	~$27,000–$32,000	~$35,000–$42,000
New with loader (cab/HST)	Not available factory	~$46,000–$52,000+
Used (lower hours, with loader)	~$20,000–$28,000	~$32,000–$45,000

Both tractors hold value extremely well. The L3901 often enjoys a broader buyer pool — small acreage owners, landscapers, municipalities — which supports strong used demand. The MX5400 holds more absolute dollars but appeals to a somewhat narrower audience. Use our Kubota Financing Calculator to compare monthly payments before you visit the dealer.

Frequently Asked Questions

QIs the Kubota L3901 a Tier 4 DPF tractor?

Yes — the L3901 is a Tier 4 Final tractor using a DOC + DPF after-treatment system on its D1803-CR-E4 engine. It is not a pre-emissions machine. L3901 owners need to follow the same DPF care as any other Tier 4 tractor: run at higher RPM, avoid repeated regen cancellations, and let active regens complete.

QIs the MX5400 worth the extra money over the L3901?

For 15+ acres with regular 6-ft cutter work, heavy loader use, round bale handling, or livestock chores — yes, the MX5400 is worth the $8,000–$15,000 premium. For 3–15 acres of mixed lighter chores, the L3901 handles the work without the extra cost. The honest test: if you’re regularly pushing the L3901 to its limits, step up to the MX5400.

QDoes the L3901 have a factory cab option?

No — Kubota does not offer a factory cab on the L3901. It is sold as an open-station ROPS tractor only. Buyers wanting weather protection must add an aftermarket soft or hard cab. In contrast, the MX5400 is available as a full factory climate-controlled cab model (MX5400HSTC). If a factory cab is important to you, the MX5400 is the only option between these two.

QWhat size rotary cutter can the L3901 run?

A 5-ft rotary cutter is the ideal match for the L3901. Many owners run a 6-ft cutter in lighter grass and pasture conditions with careful ground speed management. In dense brush or tall heavy grass, stick to 5 ft to stay in a comfortable power band and avoid overloading the PTO.

QAre the L3901 and MX5400 reliable?

Both tractors have strong reliability reputations. Serious engine or drivetrain failures are rare on either model. The most common issues on both are DPF-related and tied to operator habits rather than mechanical defects. Neither model has a documented “bad year” or serial number range to avoid. See our L3901 Problems Guide and MX5400 Problems Guide for full details.

QWhich holds resale value better — L3901 or MX5400?

Both hold value extremely well. The L3901 benefits from a broader buyer pool — small acreage owners, landscapers, hobby farmers — which keeps demand strong and used prices close to new in many markets. The MX5400 holds more absolute dollars but appeals to a narrower audience. On a percentage basis both are top-tier for resale.
