Kubota M7040 Problems: 7 Most Common Issues & Fixes

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

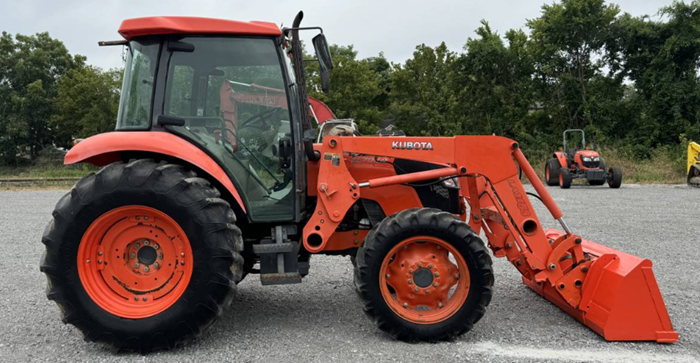

The Kubota M7040 is a proven 64HP utility tractor powered by the V3307-DI-T diesel — no DPF, no DEF, no regen cycles required. The standout M7040 complaint is hydraulic weakness in loader curl and tilt — bucket goes flat on the ground but lacks force on light loads, tied to the hydraulic pump design under combined loader and 3-point demand. Key specs: V3307-DI-T engine, 64 engine HP, 54.6 PTO HP, combined transmission/hydraulic sump, EGR-only Interim Tier 4.

✅ Good News — No DPF, No DEF, No Regen

The M7040 uses EGR-only Interim Tier 4 emissions — no diesel particulate filter, no DEF fluid, and no regeneration cycles. This is a significant advantage over the M7060 cab model which requires DPF management. The M7040’s open-station design avoids the DPF requirement entirely, making it one of the most operator-friendly large utility tractors Kubota produced.

M7040 Problems — Quick Reference Table

Problem	Severity	DIY Difficulty	DIY Cost	Dealer Cost
Hydraulic weakness — loader curl	High	Easy–Medium	$50–$150	$400–$800
Fuel system failure / dies suddenly	Medium	Easy	$20–$50	$200–$400
4WD hard to engage	Medium	Easy	$10–$30	$300–$600
Electrical shorts / wiring harness	Medium	Easy	$10–$40	$200–$500
Hydraulic leaks at couplings	Medium	Easy	$5–$25	$150–$350
Fan belt breaks early	Medium	Easy	$20–$50	$150–$300
Engine overheating	Medium	Easy	$20–$60	$200–$500

The Kubota M7040 occupies a strong position in the M series lineup — 64HP from the proven V3307-DI-T diesel, no DPF complexity, and a reputation for solid durability in demanding farm and property applications. The open-station design avoids the emissions management requirements that complicate the M7060 cab model.

The M7040’s most reported complaint — hydraulic weakness specifically in loader curl and tilt — is the standout issue that separates it from the M6060 and M7060 in owner forums. The bucket goes flat on the ground but the curl cylinder lacks force even on light loads. This guide covers all 7 most common M7040 problems with confirmed part numbers, step-by-step diagnostics, and honest dealer vs. DIY cost comparisons.

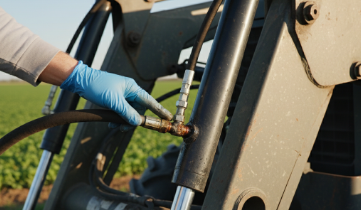

Problem #1 — Hydraulic Weakness in Loader Curl and Tilt

⚠️ M7040 Signature Problem: Hydraulic weakness in loader curl and tilt is the most consistently reported M7040-specific complaint across owner forums. The bucket goes flat on the ground under gravity but the curl cylinder lacks force even on light brush loads. This pattern points to the hydraulic pump circuit under combined loader and transmission demand — and resolves in most cases with fluid and filter service before any pump work is needed.

Symptoms

Bucket curl won’t tilt down on ground with engine laboring
Boom lifts tractor but curl has no force on light loads like brush
All hydraulic functions feel weak simultaneously
Hydraulic pump whining under load
Symptoms worse when fluid is cold — improve slightly as oil warms

Root Causes

Clogged hydraulic suction filter HH330-82630 — most common cause
Low or contaminated hydraulic/transmission fluid
Air in hydraulic circuit from low fluid event
Worn hydraulic pump on high-hour machines

📋 Hydraulic Weakness Diagnosis — Step by Step

Check fluid level — combined sump 11 US gal — check on level ground
Inspect fluid condition — dark, burnt smell, or foamy appearance means service overdue
Replace hydraulic filter HH330-82630 — clogged suction filter is most common cause
Drain and refill with Super UDT2 — full 11 gallon service
Bleed system — cycle loader and 3-point 10+ times after service
Test pump pressure — spec is approximately 2,800 PSI at rated RPM
If pressure is low after fresh fluid and filter — pump inspection needed

💡 M7040 Hydraulic Tip: The M7040 uses a combined transmission and hydraulic sump — the same fluid serves both systems. Running overdue fluid degrades the entire transmission and hydraulic circuit simultaneously. Most M7040 hydraulic weakness complaints resolve completely with a full 11-gallon fluid change and filter replacement — before any pump diagnosis is needed.

See our Kubota Hydraulic Fluid Change Guide and Hydraulic Pump Failure Guide. DIY cost: $50–$150. Dealer cost: $400–$800.

Problem #2 — Fuel System Failure and Sudden Shutdown

Symptoms

Tractor dies unexpectedly during operation — often at low RPM maneuvers
Restarts after filter work but hesitates under load
Engine stumbles or surges before shutting down
Hard restart after unexpected shutdown

Root Causes

Clogged primary fuel filter or water separator — most common cause
Air in fuel lines from overdue filter change or running low
Failing injection pump on high-hour machines

Drain Water Separator

Drain water separator bowl first — water contamination is a common M7040 fuel starvation cause. Check for water layer at bottom of bowl.

Replace Fuel Filter

Replace primary fuel filter 16631-43560. Bleed fuel system fully after replacement — air in lines after filter change causes continued hard starting.

Bleed System

Bleed from filter to injectors per operator manual. Prime hand pump until solid fuel flows with no bubbles before attempting restart.

See our Kubota Fuel System Bleeding Guide. DIY cost: $20–$50. Dealer cost: $200–$400.

🔧 Recommended Parts — Engine & Fuel Filters

Engine Oil Filter HH1C0-32430 (fits M7040) — View on Amazon →
Fuel Filter 16631-43560 (fits M7040) — View on Amazon →
Air Filter Kit 59800-26110 + 3A111-19130 (primary + secondary combo) — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #3 — 4WD Hard to Engage

Symptoms

4WD lever won’t engage smoothly — requires clutch slipping to force it
4WD engages intermittently — works sometimes but not others
Grinding or resistance when attempting 4WD engagement
Problem worse in cold weather — improves as tractor warms up

Root Causes

Low front axle fluid — most common and easiest fix
Worn or binding shift fork linkage
Corroded or dry linkage components

💡 4WD Quick Fix

Check front axle fluid level first — capacity 3.2 US qt. Low axle fluid is the most common cause of M7040 4WD engagement problems and costs under $15 to fix. Clean and lubricate the linkage components while you are there. Most M7040 4WD complaints resolve with these two steps before any mechanical disassembly is needed.

DIY Fix

Top off front axle fluid to correct level — 3.2 US qt SAE 80W-90 GL-5. Clean and lubricate shift linkage. Test 4WD engagement in neutral with engine running. If problem persists after fluid and lubrication, shift fork inspection is needed. DIY cost: $10–$30. Dealer cost: $300–$600.

Problem #4 — Electrical Shorts and Wiring Harness Issues

Symptoms

Auxiliary lights failing intermittently or completely
Rear harness chafing on harmonic balancer or frame members
Branches breaking light fixtures during field work
Intermittent electrical faults with no obvious cause

Root Causes

Chafed wiring harness from contact with moving components
Exposed terminals from harness wear
Light fixtures vulnerable to branch and debris contact in field conditions

✅ Electrical Quick Checks

Visually inspect entire harness for chafing or exposed wire
Check harness routing near harmonic balancer — known contact point on M7040
Test circuit continuity with multimeter at affected components
Check all fuses before replacing any components
Secure loose harness sections with zip ties and split loom protection

See our Kubota Ground Strap Guide and Kubota Wiring Harness Guide. DIY cost: $10–$40. Dealer cost: $200–$500.

🔧 Recommended Parts — Hydraulic Filter & Fluid

Hydraulic Filter HH330-82630 (fits M7040) — View on Amazon →
Kubota Super UDT2 Transmission/Hydraulic Fluid — View on Amazon →
Shell Rotella T6 5W-40 Full Synthetic — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #5 — Hydraulic Leaks at Quick Couplings

Symptoms

Hydraulic oil visible under tractor at quick coupler area
Wet fittings after hydraulic operation
Fluid level dropping without obvious cause

Root Causes

Loose quick coupler fittings — most common and easiest fix
Worn O-rings on coupler sealing surfaces

Clean and Inspect

Clean area completely. Run hydraulics and watch for fresh leak point. Tighten all couplers — many M7040 leaks resolve with tightening alone.

Replace O-Rings

If tightening doesn’t stop leak — remove coupler and replace O-ring seals. O-ring kits are inexpensive and fix most persistent coupler leaks.

Check Fluid Level

After repair verify combined sump fluid level — 11 US gal total. Top off with Super UDT2 to replace any lost fluid.

See our Kubota Hydraulic Quick Couplers Guide. DIY cost: $5–$25. Dealer cost: $150–$350.

Problem #6 — Fan Belt Breaking Early

Symptoms

Fan belt snapping at unusually low hours — some owners report failure at 20 hours
Sudden overheating from loss of fan and alternator drive
Squealing from belt area before failure

Root Causes

Incorrect belt tension from factory — most common on early-hour failures
Pulley misalignment causing uneven belt wear
Debris ingestion in belt area during field operation

⚠️ M7040 Early Belt Failure Warning

Fan belt failure at 20 hours is a documented M7040 pattern reported by multiple owners — not just bad luck. Check belt tension at initial 50-hour service and verify correct tension of 1/2 inch deflection under moderate thumb pressure. Also inspect all pulleys for alignment at this service. Catching a tension issue early prevents the sudden failure and potential overheating damage.

DIY Fix

Replace failed belt and set tension to 1/2 inch deflection. Check all pulley alignment — misaligned pulleys cause rapid belt wear. Inspect belt area for debris. See our Kubota Overheating Guide if overheating accompanied belt failure. DIY cost: $20–$50. Dealer cost: $150–$300.

Problem #7 — Engine Overheating

Symptoms

Temperature gauge rising under sustained heavy load
Coolant pushing out overflow tank
Engine performance reduction as thermal protection activates

Root Causes

Clogged radiator screen or fins from field debris
Low coolant level — capacity 6.6 US qt
Fan belt slipping or broken — see Problem 6
Stuck thermostat

✅ Overheating Quick Checks

Clean radiator screen and fins with compressed air — first check always
Check coolant level cold — capacity 6.6 US qt
Inspect fan belt tension and condition
Feel top and bottom radiator hoses — if top hot and bottom cold thermostat is stuck
Pressure test radiator cap if coolant loss is occurring

See our Kubota Overheating Guide and Thermostat Guide. DIY cost: $20–$60. Dealer cost: $200–$500.

🔧 Recommended Tools — Diagnostics

OBD2 Diesel Scan Tool — reads M7040 fault codes — View on Amazon →
Kubota 4-Pin OBD Adapter — required for M7040 connection — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

M7040 OEM Part Numbers Reference

Component	OEM Part Number	Notes
Engine Oil Filter	HH1C0-32430	Same as M6060 and M7060 — change every 200 hrs
Fuel Filter	16631-43560	Superseded by HH166-43560 — replace every 300 hrs
Primary Air Filter	59800-26110	Same as M6060 and M7060 — clean every 100 hrs
Secondary Air Filter	3A111-19130	Same as M6060 and M7060 — never clean, replace annually
Hydraulic Filter	HH330-82630	Replace at 50 hrs initial then every 300 hrs
Transmission/Hydraulic Fluid	Super UDT2	Combined sump 11 US gal — change every 300 hrs

M7040 shares identical filter part numbers with M6060 and M7060. Always confirm by serial number at Kubota’s official parts lookup.

M7040 Fluid Capacities and Specifications

System	Capacity	Fluid Spec	Change Interval
Engine Oil	11.6 US qt with filter	10W-40 or 15W-40 API-rated diesel oil	50 hrs initial, then 200 hrs
Engine Coolant	6.6 US qt	Long-life ethylene glycol 50/50	Every 2 years
Transmission/Hydraulic (combined)	11 US gal / 42L	Kubota Super UDT2	50 hrs initial, then 300 hrs
Front Axle Case	3.2 US qt / 3L	SAE 80W-90 GL-5 gear oil	Every 300 hrs

M7040 vs M6060 vs M7060 — Problems and Reliability

Category	M7040	M6060	M7060
Engine HP	64 HP	60 HP	71 HP
DPF System	EGR only — no DPF ✅	DPF + EGR	DPF + EGR
Standout complaint	Hydraulic weakness — loader curl	DPF + EGR regen failures	DPF regen failures
Filter sharing	Identical to M6060 and M7060 ✅	Same as M7040	Same as M7040
Reliability	Solid — wiring and hydraulics need attention	Good — DPF management required	Excellent — more power headroom
Better buy	Budget/no-DPF — open station	Mid-range — accepts DPF complexity	Maximum M series power

See related: M6060 Problems · M7060 Problems

M7040 Dealer vs DIY Cost Comparison

Repair	DIY Cost	Dealer Cost	Savings
Hydraulic fluid + filter service	$50–$150	$400–$800	$350–$650
Fuel filter + bleeding	$20–$50	$200–$400	$180–$350
4WD fluid + linkage lube	$10–$30	$300–$600	$290–$570
Wiring harness repair	$10–$40	$200–$500	$190–$460
Hydraulic coupler O-rings	$5–$25	$150–$350	$145–$325
Fan belt replacement	$20–$50	$150–$300	$130–$250
Coolant flush + radiator clean	$20–$60	$200–$500	$180–$440

Based on typical U.S. dealer rates of $120–$180/hr. Use our Tractor Repair vs Replace Calculator for major decisions.

M7040 Maintenance Schedule

Interval	Service Items
50 Hours	Change engine oil and filter • Change transmission/hydraulic fluid • Clean hydraulic filter • Check and grease all fittings • Check battery and safety switches • Check fan belt tension • Check tire pressure and bolt torque
100 Hours	Grease all fittings • Clean primary air filter • Clean fuel filter sediment bowl • Inspect and adjust belts and pedals • Check battery terminals • Inspect wiring harness for chafing
200 Hours	Change engine oil and filter • Check coolant level and condition • Inspect hydraulic hoses and fittings • Check 4WD linkage and front axle fluid
300 Hours	Replace hydraulic filter • Change transmission/hydraulic fluid • Replace fuel filter • Change front axle fluid • Inspect brakes and adjust
Annual / 2 Years	Full fluid flush — coolant, hydraulic, transmission, front axle • Replace air filter elements annually • Replace belts if showing wear • Inspect hydraulic hoses for age cracking

🔧 Complete M7040 Service Kit — All Filters

Engine Oil Filter HH1C0-32430 — View on Amazon →
Fuel Filter 16631-43560 — View on Amazon →
Air Filter Kit 59800-26110 + 3A111-19130 — View on Amazon →
Hydraulic Filter HH330-82630 — View on Amazon →
Kubota Super UDT2 Fluid — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

? Frequently Asked Questions — Kubota M7040 Problems

Why does my M7040 loader have no curl power?

Loader curl weakness is the most reported M7040-specific complaint and almost always resolves with a full hydraulic fluid and filter service. Start with the hydraulic suction filter HH330-82630 and a complete 11-gallon fluid change using Super UDT2. Cycle all hydraulic functions 10+ times after service to bleed air. If weakness persists after fresh fluid and filter, pump pressure testing at 2,800 PSI spec is the next diagnostic step.

Does the M7040 have a DPF or require DEF fluid?

No — the M7040 uses EGR-only Interim Tier 4 emissions with no DPF and no DEF fluid required. The open-station design avoids the DPF requirement that applies to the M7060 cab model. No regeneration cycles, no emissions warning lights, no DEF tank to fill. This is one of the M7040’s biggest advantages over the M6060 and M7060.

What hydraulic fluid does the M7040 use?

Kubota Super UDT2 is the specified fluid for the M7040 combined transmission and hydraulic sump. Total capacity is 11 US gallons. Change at 50 hours initially then every 300 hours. The transmission and hydraulic system share the same fluid on the M7040 — never substitute with generic hydraulic fluid or ATF.

Does the M7040 share filters with the M6060 and M7060?

Yes — the M7040 shares identical filter part numbers with both the M6060 and M7060 across all service filters. Oil filter HH1C0-32430, primary air filter 59800-26110, secondary air filter 3A111-19130, and hydraulic filter HH330-82630 are all the same across all three models. The fuel filter part number supersedes to HH166-43560 from the original 16631-43560.

M7040 vs M7060 — which should I buy?

The M7060 offers more power at 71HP with a 12×12 transmission and is considered the better buy for heavy sustained use. However the M7040 is a strong choice if you want to avoid DPF complexity — the open-station design keeps emissions simple with no regen cycles. If your primary concern is maximum power and you accept DPF management go M7060. If simplicity and no-DPF operation matters most the M7040 delivers. See our M7060 Problems Guide.

Why did my M7040 fan belt break at low hours?

Early fan belt failure at 20-50 hours is a documented M7040 owner complaint. The most common cause is incorrect factory belt tension. At your initial 50-hour service check belt tension — correct is 1/2 inch deflection under moderate thumb pressure. Also check pulley alignment at this service. Catching a tension issue early at 50 hours prevents sudden field failure and potential overheating damage.

Is the Kubota M7040 a reliable tractor?

Yes — the M7040 has a solid reliability reputation as a proven non-DPF utility tractor. The V3307-DI-T diesel is durable and well-proven. The hydraulic weakness and wiring complaints are manageable maintenance items rather than design failures. Owners who stay on the 300-hour fluid change schedule and address wiring harness chafing early report reliable trouble-free operation well past 2,000 hours.

Related Kubota M Series Guides

Kubota M6060 Problems Guide →

DPF + EGR model below M7040 — complete troubleshooting

Kubota M7060 Problems Guide →

Step up from M7040 — complete M7060 troubleshooting

Kubota Hydraulic Fluid Change Guide →

Step-by-step for the M7040 11-gallon hydraulic service

Kubota Hydraulic Pump Guide →

M7040 pump diagnosis — rebuild vs replace decisions

Kubota Overheating Guide →

Complete overheating diagnosis — radiator, coolant, thermostat

Kubota Fuel System Bleeding Guide →

Step-by-step fuel bleed after M7040 filter replacement

The Kubota M7040 is a proven no-DPF utility tractor that rewards attentive maintenance. Keep the combined 11-gallon hydraulic/transmission sump fresh on the 300-hour schedule, address wiring harness chafing early, and check fan belt tension at the 50-hour service. Owners who stay on top of these items report reliable operation well past 2,000 hours. For more Kubota DIY guides, parts cross-references, and troubleshooting help visit TractorPartsCentral.com.

This article contains affiliate links. TractorPartsCentral.com is a participant in the Amazon Services LLC Associates Program. When you purchase through our links, we may earn a small commission at no additional cost to you. All product recommendations are based on fit, quality, and owner feedback.
