⚡ Quick Answer

The most common Kubota MX5400 problems are DPF/regen failures, HST jerking, hydraulic issues from poor dealer prep, and steering problems from low fluid or ungreased fittings. Most can be diagnosed and fixed DIY for $40–$400. There is also an active safety recall on MX5400DTC models — check your serial number immediately. The MX5400 is a reliable tractor when maintained properly — most “problems” are maintenance or setup issues, not design flaws.

The Kubota MX5400 is one of the most capable utility tractors in its class — 54 horsepower, open-center hydraulics, and available in both HST and gear (DTC) configurations. But like any Tier 4 emissions tractor, it comes with a learning curve around DPF management, and a handful of recurring issues that show up in owner forums like OrangeTractorTalks and TractorByNet. This guide covers every major MX5400 problem with real owner examples, specific part numbers, error codes, and repair costs so you can diagnose and fix issues fast.

For related guides see our Kubota won’t start troubleshooting guide and our complete Kubota hydraulic systems guide.

🚨 ACTIVE SAFETY RECALL — MX5400DTC Owners Read This First

Affected model: Kubota MX5400DTC (gear drive / dry clutch models only)
Hazard: Clutch cable can break, resulting in reduced braking power and a crash hazard
Remedy: Stop use and contact your Kubota dealer for a free inspection and clutch cable repair/replacement

Check your serial number at kubotausa.com/service-support/safety/safety-notices — this recall also applies to Canadian owners.

MX5400 Problems at a Glance

Problem	Frequency	Severity	DIY Fixable?
DPF/Regen failures	⭐⭐⭐⭐ 4/5	⭐⭐⭐ 3/5	Partially
Hydraulic/steering issues	⭐⭐⭐⭐ 4/5	⭐⭐⭐ 3/5	Usually yes
HST jerking/surging	⭐⭐⭐ 3/5	⭐⭐⭐ 3/5	Often yes
Steering stiff/clicking	⭐⭐⭐ 3/5	⭐⭐⭐ 3/5	Often yes
PTO engagement issues	⭐⭐ 2/5	⭐⭐ 2/5	Yes
Electrical/battery drain	⭐⭐ 2/5	⭐⭐ 2/5	Yes
Radiator puncture/overheating	⭐ 1/5	⭐⭐⭐⭐⭐ 5/5	Partially
Clutch cable recall (DTC only)	⭐ Subset	⭐⭐⭐⭐⭐ 5/5	Free dealer repair

Problem #1 — DPF & Regen Failures (Most Common)

The MX5400’s Tier 4 DPF system is the single biggest source of owner frustration. It’s not a design flaw — it’s a management issue. Most DPF problems come from operators not understanding the regen process or repeatedly cancelling active regens.

Symptoms

DPF icon illuminated with beeping every 3 seconds
Regen icon, RPM increase icon, and parked regen icon all flashing together
Tractor won’t start after interrupted regen
Power derate — engine limits RPM under load
Red DPF warning light on dash

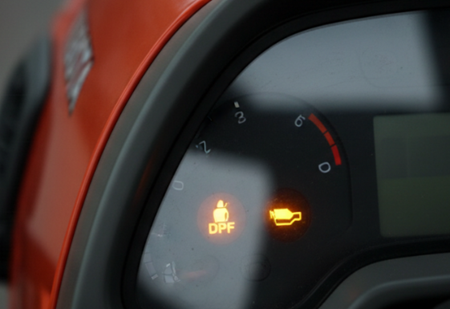

DPF Warning Light Guide

Indicator	Meaning	Action Required
Solid DPF icon	Passive or active regen in progress	Keep working at higher RPM — do not shut down
Flashing DPF + beeping	Regen failed or soot level high	Perform parked regen per fender decal
Red DPF or engine symbol	Critical — soot overload	Stop heavy work — dealer forced regen needed
3 icons flashing + beep every 3 sec	Interrupted regen lockout	Perform full parked regen before restarting work

Regen Procedure (Do This Right)

Passive regen — happens automatically during normal work at load. No action needed — just keep working.

Active regen — DPF icon illuminated, single beep. Bring RPM to PTO speed (~2,500 RPM) and continue working until light turns off. Never shut down during active regen.

Parked regen — tractor in neutral, PTO off, parking brake on. Set RPM as instructed on fender decal. Press the regen button (without the line through it). Let it run to completion — takes 20–40 minutes.

Forced regen — dealer only, requires diagnostic laptop. If parked regen doesn’t clear codes, this is next step.

DPF cleaning or replacement — if P242F code appears or filter fails efficiency check after forced regen, off-tractor cleaning or replacement is required.

DPF Error Codes

Code	Meaning	Fix
P3001	High soot accumulation — DPF too full for passive regen	Perform parked regen immediately
P2002	DPF efficiency below 85% after multiple regens	Dealer forced regen required
P242F	DPF ash accumulation critical — filter near end of life	Off-tractor cleaning or DPF replacement

⚠️ Never Delete the DPF: DPF deletion on the MX5400 is illegal under federal EPA regulations, voids your warranty, and can result in fines exceeding $10,000. See our complete DPF cleaning guide for legal options.

Problem #2 — Engine Hard Start, Power Loss & Overheating

Hard Starting / No Start

Most MX5400 no-start issues trace back to one of three causes — DPF lockout, fuel starvation, or safety interlock. Work through this sequence:

Check dash — flashing regen icons and beeping every 3 seconds means incomplete regen is blocking start. Complete the parked regen procedure first.

Check safety interlocks — HST must be fully in neutral, PTO off, seat switch engaged, parking brake set.

Inspect fuel system — drain water separator cup, check for debris. Replace primary and secondary fuel filters if over 400 hours or fuel quality is suspect. → MX5400 fuel filter on Amazon

Check battery and cables — clean terminals, load-test battery if cranking is weak. See our Kubota battery troubleshooting guide.

Smoke Color Diagnosis

⚫ Black Smoke

Over-fueling under load, dirty air filter, turbo or intercooler issue. Check air filter first — it’s the most common and cheapest fix.

⬜ White Smoke

Unburned fuel (cold start, injector fault) or steam from coolant entering combustion. With temp spike and low coolant — suspect head gasket. Stop immediately.

🔵 Blue Smoke

Burning oil — worn piston rings or valve seals. Common on high-hour tractors. Monitor oil consumption and compression test.

Overheating — The Radiator Puncture Risk

One of the most serious MX5400 issues reported by owners is radiator puncture from brush and limbs hitting the lower radiator hose or core during brush-hogging. One owner had a stick puncture the lower radiator, dumping coolant and leading to an engine replacement recommendation — a $1,500–$4,000+ repair from a $0 problem.

💡 Prevention:

Blow out radiator, oil cooler, and DPF can from back to front regularly when brush-hogging or working in chaff
Inspect lower radiator hose routing before brush work — consider a homemade skid/deflector plate
Check coolant level only when cool — look for dried coolant streaks at hose ends and water pump weep hole

Problem #3 — HST Jerking, Surging & Slow Response (HST Models)

HST jerking is one of the most discussed MX5400 issues on OrangeTractorTalks. The tractor lurches or ground speed oscillates even while holding the HST pedal steady — most noticeable when snow-blowing, mowing, or on uneven ground.

Diagnosis Steps

Check fluid level and condition — must be Kubota Super UDT2, not milky or burnt. → Kubota Super UDT2 on Amazon

Change HST and hydraulic filters — cut old filters open to inspect debris. Metal particles indicate internal wear. → L/MX series filter on Amazon

Bleed air from system — cycle loader raise/lower and steering lock-to-lock slowly 10 times after any fluid or filter change.

Inspect HST pedal linkage — check for binding, ensure return springs are intact and pedal moves freely through full range.

If symptoms persist — dealer should test HST pedal sensor (TD160-32303) and F/R proportional valves (TD170-59310) with WSM resistance specs.

💡 HST Overheating Prevention: Run PTO loads in the correct gear range and keep RPM near PTO speed to maintain oil flow and cooling. Keep HST oil cooler fins blown out along with the radiator stack. Avoid heavy towing in high range at low RPM.

For more detail see our Kubota HST transmission jerking guide.

Problem #4 — Hydraulic Problems (Loader, 3-Point, Leaks)

Many MX5400 hydraulic “problems” are actually dealer pre-delivery inspection (PDI) failures — tractors delivered under-filled with oil, missing grease, or with loose fittings. Always do a full PDI check when you take delivery of a new MX5400.

Loader Lift Issues & Slow Hydraulics

⚠️ Real Owner Example: A Kubota 5400-series owner had FEL, power steering, and 3-point all intermittently failing with plenty of oil showing on dipstick. Root cause: common pump suction issue — not three separate failures. Always check suction side before condemning individual components.

Hydraulic Checklist

Check transmission/hydraulic oil level with loader down and implements lowered
Inspect suction screen and return filter — replace if contaminated
Look for leaks at loader quick-couplers — one partially unseated QD can disable loader while steering and 3-point still work
Verify loader valve power-beyond and tank lines are correctly routed after any install or removal
Check loader mounting hardware and hydraulic fittings for proper tightness — especially important in first 50–100 hours

3-Point Hitch Problems

Won’t lift heavy implement: relief valve near spec limit, air in system, or sticky lift control valve. Test by timing full-up travel with no load vs with implement.
Hitch drifts down when parked: slow drift is normal. Rapid leak-down suggests cylinder or control valve wear — see our hydraulic cylinder drift guide.

Use a hydraulic pressure gauge to test system pressure at the loader work port. → Hydraulic pressure test gauge on Amazon — MX5400 system pressure should be 2,600–3,200 PSI.

Problem #5 — Steering Problems (Stiff, Clicking, No Assist)

Steering complaints are one of the most visible MX5400 topics online. Real owner reports include a new MX5400 where the steering wheel could spin freely but front wheels wouldn’t turn — traced to low hydraulic oil. Another owner had completely dead steering from the same cause.

Steering Diagnosis Steps

Confirm hydraulic oil level and correct fluid — steering shares the same pump as loader and 3-point. Low fluid kills all three.

Inspect front axle knuckle grease fittings — one owner found a broken knuckle zerk on a brand-new MX5400. Broken or missing zerks mean unlubricated joints seizing up.

With front tires off ground, turn steering lock-to-lock to bleed any air. Listen for pump noise or cavitation sounds.

If steering wheel moves but wheels lag or “slip” — dealer needs to inspect steering column spline and orbital valve. This is beyond DIY.

Wandering / Loose Steering

Excess free play at the steering wheel points to worn tie-rod ends or loose front axle pivot — especially common if the loader is used heavily without routine greasing at all pivot points. Check and adjust toe-in to spec per service manual.

Problem #6 — Electrical & Battery Problems

Battery Drain / No Crank

Modern ECUs pull small parasitic loads — weak OEM batteries die after sitting for weeks
Corroded ground straps cause intermittent no-cranks and false warning lights
Measure parasitic draw — under 20–30 mA is normal
Clean frame ground at battery, engine block, and dash harness
Use a battery tender if tractor sits more than 2 weeks → Battery tender on Amazon

No Crank Checklist

Check neutral and PTO switches — most common cause
Check starter relay and fuse
Verify DPF isn’t in lockout mode (flashing icons)
Clean battery terminals and ground connections

See our Kubota starter motor troubleshooting guide and Kubota safety switch problems guide for detailed diagnosis.

Problem #7 — PTO Problems

PTO Won’t Engage

Safety interlocks — seat switch, selector not fully in position
Electrical clutch coil failure or blown PTO fuse
Mechanical lever/cable out of adjustment (DTC models)

PTO Kicks Out Under Load

Implement too large for tractor rating
Running at too low RPM
Internal clutch wear on high-hour tractors

PTO Vibration

Worn U-joints on implement driveline
Incorrect driveline length after cutting
Excessive angle from wrong top-link length

💡 Pro Tip: Most MX5400 “PTO problems” are actually implement-side driveline issues. Check implement U-joints, driveline length, and phasing before diagnosing the tractor PTO itself.

Problem #8 — 4WD & Front Axle Problems

Symptom	Likely Cause	Fix
4WD lever hard to move	Driveline wind-up from using 4WD on hard surfaces	Back up slightly, disengage, avoid 4WD on pavement
4WD won’t engage	Linkage not fully traveling, shifting under load	Only shift 4WD when stopped or at crawl with HST released
Grinding on engagement	Shifting at speed or under load	Stop completely before engaging 4WD
Front axle oil leak	Worn outer hub seals from constant 4WD loader use	Replace hub seals, change front axle oil

⚠️ Important: Never use 4WD on dry pavement — it causes severe driveline wind-up and can damage the front axle. 4WD is for loose or slippery surfaces only.

Real Repair Costs: DIY vs Dealer

Issue	Common Fix	DIY Cost	Dealer Cost
Fuel starvation / hard start	Fuel filters + water separator drain	$40–$120	$250–$500
Hydraulic service	Super UDT2 + filters	$200–$400	$450–$800
HST jerking (sensor/valve)	Pedal sensor or F/R proportional valve	$150–$450	$700–$1,500
Steering no assist	Top off fluid, bleed system, fix leak	$50–$300	$300–$900
Front axle seal leak	New hub seals and oil	$100–$250	$600–$1,200
DPF forced regen	Dealer laptop only	Not DIY	$250–$600
DPF off-tractor cleaning	Bake-blow cleaning or exchange	$400–$900	$700–$1,500
DPF replacement	New DPF canister	$1,200–$2,000+ parts	$2,000–$3,500+
Radiator puncture	New radiator + coolant	$500–$1,200	$1,500–$4,000+
Clutch cable recall (DTC)	New clutch cable	FREE	FREE (recall)

MX5400 Reliability Checklist: Prevent Problems Before They Start

DPF & Engine

Always let regen complete — never cancel active regen
Avoid extended low-RPM idling
Use quality ULSD fuel only
Drain water separator regularly
Change fuel filters at 400 hours

Cooling System

Blow out radiator and DPF can regularly
Inspect lower radiator hose before brush work
Consider fabricating a lower radiator guard
Check coolant level and condition annually

Hydraulic & HST

Use only Kubota Super UDT2
Check fluid level before each use
Change filters on schedule
Cycle FEL and steering slowly after fluid changes

Steering & Front Axle

Grease every steering and loader pivot point
Fix broken zerks immediately
Change front axle oil per manual
Check for leaks after heavy loader use

Electrical

Use battery tender if sitting 2+ weeks
Clean terminals annually
Inspect ground connections
Learn your DPF symbols from fender decal

New Owner PDI Checks

Check all loader QA pin bolts for tightness
Verify all grease points were actually greased
Confirm hydraulic oil is at correct level
Check wheel lug nuts at 50 hours

💡 Is Your MX5400 Worth Repairing?

Before spending money on major repairs, use our FREE Repair vs. Replace Calculator to see your tractor’s current value.

Calculate Your Tractor’s Value →

Frequently Asked Questions

Is the Kubota MX5400 a reliable tractor?

Yes — the MX5400 is generally reliable. Most problems reported by owners are maintenance issues, dealer PDI failures, or DPF management errors rather than design flaws. Owners who follow the maintenance schedule and learn the DPF system report very few issues.

How do I know if my MX5400 is affected by the recall?

The recall affects MX5400DTC (gear drive / dry clutch) models only — not HST models. Check your serial number at kubotausa.com/service-support/safety/safety-notices or contact your Kubota dealer. The repair is free.

Why does my MX5400 beep and show flashing lights?

Beeping every 3 seconds with flashing regen icons means a regen was interrupted and needs to be completed. Put the tractor in neutral, PTO off, parking brake on, and perform a parked regen per the fender decal. Do not skip this — repeated failures lead to P2002 and P3001 codes requiring dealer intervention.

My MX5400 HST is jerky — what should I check first?

Start with fluid level and condition — must be Kubota Super UDT2. Then replace HST and hydraulic filters and bleed air from the system by cycling the loader and steering slowly. If the problem persists, the HST pedal sensor (TD160-32303) or F/R proportional valves (TD170-59310) may need dealer testing.

How often does the MX5400 DPF need cleaning?

With proper regen management the DPF can go thousands of hours before needing off-tractor cleaning. The key is never cancelling active regens and avoiding excessive idling. If P242F code appears, the filter needs professional cleaning ($400–$900) or replacement ($2,000–$3,500).

MX5400 vs MX6000 — does the MX6000 have the same problems?

Yes — the MX5400 and MX6000 share the same DPF architecture, HST system, and hydraulic design. The problems and solutions in this guide apply equally to the MX6000. The clutch cable recall is specific to MX5400DTC only — check kubotausa.com for MX6000 recalls separately.
