Kubota L2650 Problems: 7 Common Issues & Fixes (2026)

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

The most common Kubota L2650 problems are clutch not disengaging, transmission slipping in one gear range, hydraulic weakness after loader removal, and electrical no-start faults. The L2650 came in gear shuttle and GST versions — no HST. Confirmed filters: oil HH164-32430, fuel 15521-43160, air 70000-11081 / 15287-11490. Use Super UDT2 for the shared hydraulic/transmission system — approximately 7.5 gallon capacity. Most L2650 clutch and transmission complaints start as fluid contamination or linkage adjustment issues before becoming internal failures.

✓ Kubota L2650 — No DPF / No DEF / Gear and GST Only — No HST

The L2650 uses a Kubota D1402 3-cylinder 1.4L diesel — no DPF, no DEF, no emissions aftertreatment. Available in 8-speed mechanical shuttle (DT) and Glide Shift GST versions — no HST. Engine: approximately 29 gross HP / 23.5 PTO HP. Engine oil capacity: approximately 4–5 quarts. Hydraulic/transmission: shared system approximately 7.5 gallons — Super UDT2. Produced from approximately 1990 to 1994. The L2650 sits between the L2550 and L2850 on the same standard L-series platform — same basic chassis across all three.

Kubota L2650 Problems — Quick Reference Table

Problem	Symptom Pattern	DIY Difficulty	DIY Cost	Dealer Cost
Clutch won’t disengage	Pedal won’t release, loader drags	Easy–Dealer	$200–$500	$3,000–$5,000
Transmission slipping / one range dead	Only moves in low gear, high range gone	Easy–Medium	$100–$400	$2,000–$4,000
Hydraulic weakness / 3-point won’t lift	3-point drops after loader removal	Easy	$60–$300	$500–$1,500
Electrical no-start / gauge faults	Won’t start, gauges fail intermittently	Easy	$0–$200	$200–$600
Overheating under load	Temperature rises, power loss	Easy	$0–$100	$200–$600
Power loss under load	Sudden loss at working RPM	Easy	$20–$150	$200–$700
3-point lever drooping	Lever drifts forward on its own	Easy	$0–$100	$150–$400

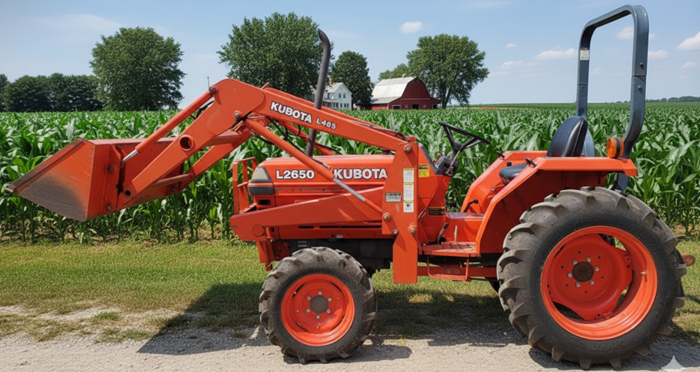

The Kubota L2650 is a 29 HP compact utility tractor produced from approximately 1990 to 1994 in gear shuttle and GST versions. Owner discussions on OrangeTractorTalks, TractorByNet, and Reddit show the L2650’s problems cluster around clutch and transmission wear, hydraulic air locks after loader service, and electrical faults from aging wiring — all predictable on a 30+ year old tractor.

One owner described the clutch pedal “won’t release” with the loader dragging — a seized shaft in the bell housing that starts as a linkage adjustment before becoming a split-tractor repair if ignored. Another described the tractor “only moving in low gear 1 with high range dead” — contaminated or low transmission fluid causing exactly that partial failure. A third described the 3-point dropping after removing the loader — air in the hydraulic system from opened connections that clears with 10 cycles of the controls. The L2650 rewards early attention to these patterns.

🔌 Kubota L2650 Specs & Fluid Reference

Spec	Value
Engine	Kubota D1402 3-cylinder 1.4L diesel — 29 gross HP / 23.5 PTO HP
Transmission	8-speed mechanical shuttle (DT) or GST — no HST
Engine oil type	15W-40 or 10W-30 heavy duty diesel — verify in operator manual
Engine oil capacity	Approximately 4–5 quarts — verify with dipstick
Hydraulic / transmission fluid	Kubota Super UDT2 — shared system approximately 7.5 gallons
Front axle fluid	Super UDT2 — approximately 2–3 quarts — verify at fill plug
Production years	~1990–1994 — standard L-series platform — DT and GST versions

Problem #1 — Clutch Won’t Disengage (Most Expensive)

⚠️ Most Expensive L2650 Repair: Owner language: “clutch pedal won’t release, loader drags.” On the L2650 a clutch that won’t disengage starts as a linkage adjustment issue before becoming a rusted or seized shaft in the bell housing. Address clutch free play adjustment at every 200 hours — a seized shaft requires tractor splitting at dealer cost of $3,000–$5,000.

Symptoms

Clutch pedal goes to floor but tractor still creeps or drags
Loader or implements drag when clutch is depressed
Clutch pedal has changed feel — soft, stiff, or inconsistent
Grinding when shifting gears despite depressed clutch

📋 Fix — In Order

Adjust clutch pedal free play first — per operator manual specification. Many L2650 clutch complaints resolve with correct free play adjustment before any disassembly
Inspect and clean external clutch linkage — lubricate all pivot points with Lucas Red N Tacky Grease. Rust and seized pivots cause exactly this symptom on a 30+ year old tractor
Test clutch shaft movement in bell housing — if the shaft itself is seized, the only repair is tractor splitting. Use penetrating oil first and attempt to free the shaft before splitting
If internal clutch pack is worn — split-tractor repair required. See our Kubota Clutch Replacement Guide and our Clutch Adjustment Guide

DIY cost: $200–$500. Dealer cost: $3,000–$5,000.

Problem #2 — Transmission Slipping / One Range Dead

⚠️ Check Fluid Before Internal Diagnosis: Owner language: “only moves in low gear 1, high range dead.” Partial transmission failure on the L2650 — one range working, another dead — almost always traces to wrong, contaminated, or low fluid before any internal gear damage. The correct fluid level on the L2650 is to the sight glass — not overfilled.

Symptoms

Tractor moves in low range but high range is dead or very weak
Slipping under load — engine RPM rises but ground speed doesn’t
Transmission fluid discolored, burnt smell, or milky appearance
Problem developed after running low on fluid or mixing fluid types

✓ Fix — In Order:

Drain transmission fluid via drain plug — inspect drained fluid for metal particles, milkiness, or burnt smell
Refill with Super UDT2 to the sight glass level — not above. The L2650 shared system holds approximately 7.5 gallons — refill slowly and check at the sight glass
Cycle all gears to bleed air from the system — run through all ranges 3–5 times after refill before testing under load
If slipping persists after correct fluid service — internal transmission diagnosis. Metal in the drained fluid confirms gear damage and requires dealer-level repair. See our Kubota Transmission Slipping Guide

DIY cost: $100–$400. Dealer cost: $2,000–$4,000.

🔧 Recommended Parts — L2650 Filter Kit

HERO Maintenance Filter Kit for Kubota L2650 — confirmed: oil HH164-32430, fuel 15521-43160, air 70000-11081 / 15287-11490 — View on Amazon →
Oil Filter HH164-32430 — individual oil filter for mid-service changes — View on Amazon →
Fuel Filter 15521-43160 — confirmed L2650 fuel filter — View on Amazon →
Super UDT2 2.5 Gallon — hydraulic/transmission fluid — View on Amazon →
Shell Rotella T6 15W-40 — engine oil for L2650 diesel — View on Amazon →

Confirm filter numbers against Kubota parts lookup by serial number. See our Kubota Filter Cross-Reference Master Chart. As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #3 — Hydraulic Weakness / 3-Point Won’t Lift

💡 Common After Loader Removal: Owner language: “3-point drops after loader removal.” Air enters the hydraulic system when loader connections are broken — this causes exactly this weak or unresponsive 3-point pattern. Loop the loader hoses and cycle the controls 10 times before diagnosing any hydraulic failure after loader service.

Loop loader hoses temporarily after disconnection — prevents air from entering the system and causing exactly this 3-point weakness pattern
Cycle all hydraulic controls 10+ times after any loader disconnect or fluid service to purge trapped air
Check sight glass fluid level — low fluid causes weak hydraulics across all circuits simultaneously
Replace hydraulic filter from filter kit if service is overdue
If weakness persists after air purge and filter service — hydraulic pump pressure test. See our Kubota 3-Point Hitch Guide

DIY cost: $60–$300. Dealer cost: $500–$1,500.

Problem #4 — Electrical No-Start / Gauge Faults

💡 Age-Related on All High-Hour L2650s: Owner language: “no start, gauges fail.” On a 30+ year old L2650 most electrical faults trace to corroded grounds, degraded wiring insulation, and weak alternator output — not failed ECU or complex electronic faults. Clean grounds first before any other electrical diagnosis.

Load-test the battery — minimum 490 CCA. A battery that passes a static voltage test often fails under cranking load on high-hour L2650s
Clean all ground connections — battery negative to chassis, engine block to chassis. Most L2650 gauge failures and no-start complaints on 2000+ hour machines resolve after ground cleaning. See our Kubota Ground Strap Guide
Check alternator output at fast idle — must show 13.8–14.4V. Below 13V means the alternator is not keeping up with load. See our Kubota Alternator Testing Guide
Inspect all fuses and relays — check for corrosion at fuse contacts. Replace any fuse showing discoloration
Inspect wiring insulation throughout the harness — age-cracked insulation causes intermittent shorts that are the hardest fault to find on a machine this age

DIY cost: $0–$200. Dealer cost: $200–$600.

Problem #5 — Overheating Under Load

💡 Almost Always Maintenance — Not Mechanical: Overheating on the L2650 almost always traces to a clogged radiator, low coolant, or loose fan belt — not a failed water pump or head gasket. On a 30-year-old tractor the radiator fins are almost certainly partially blocked. Clean before any mechanical diagnosis.

Clean radiator fins thoroughly — blow out from fan side with compressed air. A 30-year-old L2650 radiator can be up to 50% restricted from packed debris
Check coolant level and condition — flush and replace with Kubota-spec coolant if brown or rusty. See our Kubota Coolant Guide
Check fan belt tension — a slipping belt on a high-hour L2650 reduces cooling airflow enough to cause overheating under sustained load
Inspect thermostat operation — a stuck-closed thermostat causes immediate overheating

DIY cost: $0–$100. Dealer cost: $200–$600.

Problem #6 — Power Loss Under Load

Owner language: “sudden loss under load.” Power loss on the L2650 under working conditions almost always traces to fuel or air restriction before any injector or engine diagnosis.

Replace fuel filter 15521-43160 — first step on any power loss complaint
Bleed fuel system after filter change — see our Fuel System Bleeding Guide
Replace air filter 70000-11081 from the HERO filter kit — a clogged air filter on a machine this age causes power loss and black smoke under load
Check fuel flow from tank supply line — a debris-clogged tank pickup causes sustained-load power loss while starting and idling fine
If power loss persists after fuel and air service — injector testing. See our Kubota Injector Guide

DIY cost: $20–$150. Dealer cost: $200–$700.

Problem #7 — 3-Point Lever Drooping

💡 Easy Fix — Adjust Before Replacing: Owner language: “lever drifts forward.” A 3-point lever that drifts to the lower position on its own on the L2650 is almost always a worn detent or loose linkage — not a hydraulic failure. Adjust and lubricate before any parts replacement.

Tighten the lever friction adjustment — the L2650’s 3-point lever has a friction mechanism that prevents drift. Tighten per operator manual specification
Lubricate all lever pivot points with Lucas Red N Tacky Grease — stiff pivots cause the lever to snap past the detent rather than holding position
Inspect detent ball and spring — a worn detent ball or weak spring causes exactly this drift pattern. Replace the detent assembly if friction adjustment doesn’t hold

DIY cost: $0–$100. Dealer cost: $150–$400.

🔧 Recommended Tools & Resources

Kubota Tractor Shop Manual — clutch adjustment specs, wiring diagrams, and fluid capacities — View on Amazon →
GearWrench 20pc Ratcheting Combo Wrench Set — clutch linkage, drain plugs, and filter work — View on Amazon →
Digital Multimeter — battery load test, alternator output, and ground testing — View on Amazon →
Hydraulic Pressure Gauge — hydraulic pump and hitch circuit pressure testing — View on Amazon →
Lucas Red N Tacky Grease — clutch linkage, 3-point lever pivots, and front axle — View on Amazon →
Nitrile Gloves — transmission fluid and hydraulic work — View on Amazon →
Kubota Filter Cross-Reference Master Chart — save 30–60% on L2650 filters — View Guide →
Kubota Transmission Fluid Cross Reference — Super UDT2 alternatives — View Guide →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Dealer vs DIY Cost — Kubota L2650 Common Repairs

Repair	DIY Cost	Dealer Cost	Savings
Clutch free play adjustment	$0–$50	$150–$400	$150–$350
Transmission fluid + filter service	$100–$300	$400–$900	$300–$600
Ground clean + alternator test	$0–$150	$200–$500	$200–$350
Hydraulic pump rebuild/replace	$300–$800	$1,500–$3,000	$1,200–$2,200
Transmission rebuild	$100–$400	$2,000–$4,000	$1,900–$3,600
Clutch replacement (tractor split)	$200–$500	$3,000–$5,000	$2,800–$4,500

Kubota L2650 Maintenance Schedule

Interval	Service Items
Every Use	Check engine oil • Check hydraulic fluid at sight glass • Check coolant level • Inspect radiator screen for debris • Inspect under tractor for leaks
50–100 Hours	Change engine oil and filter HH164-32430 • Replace fuel filter 15521-43160 • Bleed fuel system • Check clutch free play • Clean battery terminals and all grounds • Lubricate all clutch linkage pivots
200 Hours	Replace hydraulic filter from HERO kit • Replace air filter 70000-11081 • Blow out radiator from fan side • Check alternator output • Inspect wiring insulation throughout harness
400 Hours	Drain and refill ~7.5 gal hydraulic/transmission system with Super UDT2 • Change front axle fluid • Replace battery cables • Flush cooling system • Inspect clutch shaft in bell housing for signs of seizure

Frequently Asked Questions — Kubota L2650 Problems

Why won’t my L2650 clutch disengage?

Start with clutch free play adjustment per the operator manual — many L2650 clutch complaints resolve here. If free play is correct, inspect and lubricate all external linkage pivot points — rust and seized pivots cause exactly this symptom on a 30+ year old tractor. If the clutch shaft itself is seized in the bell housing, apply penetrating oil and attempt to free it before accepting that a tractor split is required.

Why does my L2650 3-point drop after removing the loader?

Air enters the hydraulic system when loader connections are broken — this is the most common cause of 3-point weakness after loader service on the L2650. Loop the disconnected loader hoses to prevent air ingress, then cycle all hydraulic controls 10+ times to purge trapped air. Check fluid level at the sight glass and top up with Super UDT2 if needed.

How does the L2650 compare to the L2550 and L2850?

All three are on the same standard L-series platform. The L2550 is slightly smaller at ~25 HP, the L2650 is the mid-range at 29 HP, and the L2850 offers slightly more lift capacity at similar HP. Filter part numbers overlap across all three — always verify by serial number before ordering. Same problems and fixes apply across the family.

Is the L2650 worth repairing at high hours?

The L2650 is a durable tractor that runs reliably past 4,000 hours with proper maintenance. The key decision point is the clutch — if the shaft is seized and requires a tractor split, evaluate whether the $3,000–$5,000 dealer cost is justified by the tractor’s condition and value. A well-maintained L2650 with a good clutch, clean hydraulic fluid, and sound electrical system is worth keeping. Use our Tractor Repair vs Replace Calculator to help make the decision.

Related Kubota L Series & Parts Guides

Kubota L2900 Problems Guide →

Same era L series

Kubota L3010 Problems Guide →

Same platform family

Kubota L3301 Problems Guide →

Newer generation L series

Kubota Filter Cross-Reference Chart →

Save 30–60% on L2650 filters

Kubota Clutch Replacement Guide →

Complete clutch split guide

Used Kubota Inspection Guide →

What to check before buying used

The L2650’s most important maintenance habits are checking clutch free play every 200 hours, maintaining correct hydraulic/transmission fluid level at the sight glass with Super UDT2, looping loader hoses when disconnected to prevent air ingress, cleaning all electrical grounds on a 400-hour cycle, and cleaning the radiator fins before every mowing season. On a 30-year-old machine, early attention to these items prevents the $3,000–$5,000 clutch split that is the L2650’s most expensive single repair. See our Kubota Filter Cross-Reference Master Chart for verified filter savings. For more DIY guides visit TractorPartsCentral.com.
