Kubota L5740 Problems: 7 Most Common Issues & Fixes (2026)

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

The most common Kubota L5740 problems are HST dropping to turtle mode unexpectedly, weak or delayed cold steering, loader bucket drift after shutdown, and safety switch no-start faults. Use this pattern to diagnose: HST won’t stay in high range = check HST range switch B10402 and stall guard logic; steering weak when cold = hydraulic fluid level and filter first; bucket dumps overnight = loader control valve bypass; PTO light on and won’t start = seat switch or PTO interlock. Most L5740 complaints are electrical control layer issues — not engine or transmission mechanical failures. Applies to all L5740 HST and HST Plus models, 2007–2012.

✓ Kubota L5740 — No DPF / No DEF / HST Only

The L5740 uses a Kubota V2607 4-cylinder diesel engine with no DPF, no DEF, and no emissions aftertreatment system. All L5740 problems covered here are purely mechanical, hydraulic, or electrical. The L5740 was offered in HST and HST Plus configurations — no conventional gear transmission. The HST Plus adds auto-throttle and customizable operation features that introduce additional electronic control complexity covered in Problems #1 and #6.

Kubota L5740 Problems — Quick Reference Table

Problem	Symptom Pattern	DIY Difficulty	DIY Cost	Dealer Cost
HST drops to turtle mode	Won’t stay in high range, auto-downshifts	Medium	$0–$150	$200–$600
Drive stops or lurches suddenly	Violent stop, no forward/reverse	Medium	$0–$100	$200–$800
Weak cold steering	Steering delayed or hard until warm	Easy–Medium	$50–$200	$400–$1,200
Loader bucket drift	Bucket dumps after shutdown	Medium–Hard	$200–$800	$800–$2,000
Fuel line clamp leak	Diesel smell, smoke, fuel seepage	Easy	$5–$30	$100–$300
Safety switch / no-start faults	PTO light on, won’t start or move	Easy–Medium	$0–$60	$150–$400
Ride quality / traction complaints	Rough ride, wheel slip, top-heavy feel	Easy	$100–$400	N/A — operator fix

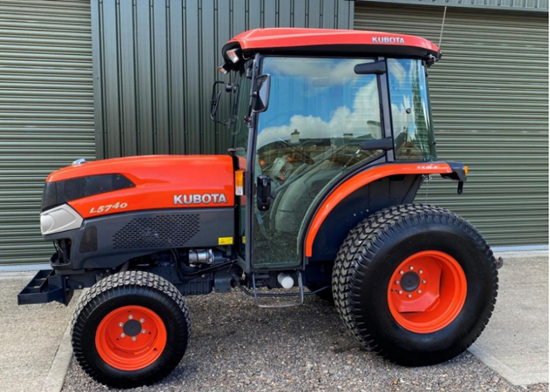

The Kubota L5740 is a 59 HP Grand L40 series tractor produced from approximately 2007 to 2012 in HST and HST Plus configurations. It sits at the top of the Grand L40 lineup and earned a strong reputation for capability — but owner reports on OrangeTractorTalks and TractorByNet reveal a consistent pattern of hydraulic control and electrical switch faults rather than engine or drivetrain mechanical failures.

The HST dropping to turtle mode and the cold steering weakness are the two issues that generate the most forum discussion — both are diagnostic puzzles that frustrate owners who expect them to be simple mechanical problems. This guide covers all 7 problems with confirmed filter part numbers, fluid specs, and honest DIY versus dealer cost comparisons.

🔌 Kubota L5740 Specs & Fluid Reference

Spec	Value
Engine	Kubota V2607 — 4 cylinder diesel, 59 HP gross / 57 HP net, 2.4L
Production	Approximately 2007–2012 — Grand L40 series
Transmission	HST or HST Plus — no gear transmission option
Engine oil type	15W-40 diesel — API CF or higher — verify in operator manual
Engine oil capacity	9.9 qt — verify in operator manual
Hydraulic / transmission fluid	Kubota Super UDT or Super UDT2 — never use generic hydraulic oil
Hydraulic / transmission capacity	Approximately 11.9 US gal total — practical drain refill approximately 10 gal
Front axle fluid	Kubota Super UDT2 or SAE 80W-90 — approximately 9.5 qt capacity

Problem #1 — HST Drops to Turtle Mode / Won’t Stay in High Range

⚠️ Most Reported L5740 HST Complaint: Owner language: “it continually shifts to turtle mode” and “won’t stay in high speed.” The L5740’s HST Plus system includes stall guard and auto-downshift logic that automatically reduces travel speed when the system detects overload — this feature is working as designed in some cases, but a faulty range switch causes it to trigger incorrectly in others. Owners confirm checking the steering column switch B10402 resolved the issue.

Symptoms

Tractor unexpectedly downshifts from high to turtle range during operation
Range selection does not hold — reverts to lower speed without operator input
Feels like the HST is ignoring range selection entirely
Problem may be intermittent — works correctly then suddenly drops range

Root Causes — In Order of Likelihood

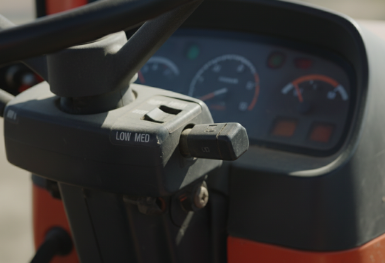

Faulty HST range/shift switch — switch B10402 on steering column confirmed by owner
Stall guard or auto-downshift logic triggering incorrectly from a dirty or failing sensor
Corroded connector at range switch causing intermittent signal loss
HST fluid level or condition triggering overload protection incorrectly

📋 Diagnosis — Step by Step

Check hydraulic fluid level and condition — low or degraded fluid can trigger false overload protection signals
Inspect switch B10402 — located on steering column. Unplug connector and clean with electrical contact cleaner. Test switch continuity in all range positions with multimeter
Temporarily disable stall guard / auto-downshift — refer to operator manual for procedure. If tractor stays in high range with feature disabled, the switch or sensor feeding that logic is the fault
Inspect all HST control connectors — clean and reseat each connector in the range selection and pedal circuit
Replace switch B10402 if cleaning does not resolve — owner confirmed this as the fix

See our Kubota HST Transmission Problems Guide. DIY cost: $0–$150. Dealer cost: $200–$600.

Problem #2 — Drive System Stops or Lurches Suddenly

Symptoms

“Lurched to a violent stop and would not move” — sudden complete loss of forward or reverse
Movement returns after lifting front end off the ground — load-dependent pattern
Intermittent — works fine then suddenly stops with no warning
No unusual noise before the stop — not a mechanical failure sound

Root Causes — In Order of Likelihood

HST overload protection activating from hydraulic flow interruption
Range linkage binding or sticking under load
Safety switch triggering — seat switch or HST pedal neutral switch
Hydraulic flow interruption from low fluid or clogged filter

📋 Diagnosis — Step by Step

Check hydraulic fluid level immediately — top up with Super UDT2 if low
Inspect HST pedal linkage — check for binding, debris, or bent linkage components that could cause pedal to snap to neutral
Test safety switches — seat switch and HST neutral position switch. Confirm continuity in correct positions
Replace hydraulic filter HHTA0-37710 if overdue — a clogged filter causes intermittent flow interruption under load
Test whether problem is load-dependent — if tractor moves freely with wheels unloaded, hydraulic overload protection is triggering from flow restriction

See our Kubota Losing Power Under Load Guide. DIY cost: $0–$100. Dealer cost: $200–$800.

🔧 Recommended Parts — L5740 Filter Kit

Oil Filter HH1C0-32430 — L5740 V2607 engine — View on Amazon →
Hydraulic Filter HHTA0-37710 — L5740 hydraulic system — View on Amazon →
Air Filter 59800-26110 — L5740 outer air element — View on Amazon →
Fuel Filter 1J800-43170 — L5740 fuel filter — View on Amazon →
Super UDT2 2.5 Gallon — OEM spec hydraulic/transmission fluid — View on Amazon →
Shell Rotella T6 15W-40 — engine oil for V2607 diesel — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases. Verify all filter part numbers against your serial number at a Kubota dealer or Messicks.com before ordering.

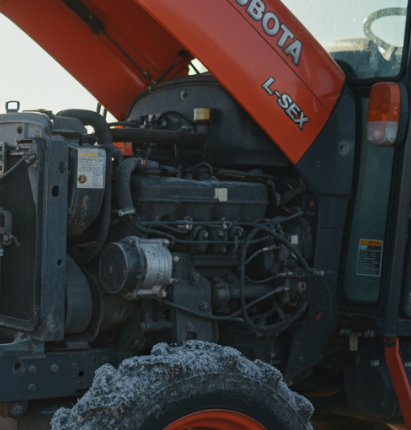

Problem #3 — Weak or Delayed Cold Steering

⚠️ Second Most Reported L5740 Complaint: Owner language: “steering wheel does not always turn the wheels” until warm, and “only improved slightly” after fluid and filter changes. This is the most frustrating L5740 diagnostic because the symptoms point toward the steering pump but fluid and filter service alone often does not resolve it — the steering pump itself may have marginal output that only shows up when cold fluid is thick.

Symptoms

Steering wheel requires extra effort when engine is cold — first 5–10 minutes of operation
Delayed response — wheel turns but tires lag behind
Improves significantly at higher RPM or after warm-up
Fluid and filter change improves but does not fully resolve the issue

Root Causes — In Order of Likelihood

Wrong or degraded hydraulic fluid — cold thick fluid reduces steering pump flow
Clogged hydraulic filter reducing pressure at cold temperatures
Air in steering hydraulic circuit
Worn steering pump with marginal output — only shows up under cold thick fluid conditions

📋 Diagnosis — Step by Step

Confirm correct hydraulic fluid — Super UDT2 only. Drain and refill if fluid history is unknown
Replace hydraulic filter HHTA0-37710 — clogged filter worsens cold-start restriction dramatically
Check for air in system — cycle steering lock to lock 10 times at low RPM after fluid service to purge air
Check reservoir fluid level after warm-up — level changes as fluid expands when hot
Test steering pump pressure cold — if pressure is below spec cold and normal when warm, pump wear is confirmed. Dealer-level repair

See our Kubota Power Steering Problems Guide. DIY cost: $50–$200 fluid and filter. Dealer cost: $400–$1,200 if pump replacement needed.

Problem #4 — Loader Bucket Drift After Shutdown

Symptoms

Bucket fully dumps within hours after engine shutdown with controls centered
No visible hose or cylinder external leak
Bucket position slowly changes when parked overnight
Owner confirmed: only fix was replacing the entire loader control valve

Root Causes

Internal bypass in loader control valve spool — most common cause of bucket drift with no external leak
Cylinder piston seal wear — less common but possible on high-hour machines
Worn valve spool allowing internal fluid bypass around spool lands

📋 Diagnosis — Isolate Valve vs Cylinder

Cap and isolate quick couplers — disconnect loader quick couplers and cap ports. If drift stops with couplers capped, the leak is in the loader circuit not the tractor valve
Disconnect hoses at loader cylinder and cap cylinder ports — if drift stops, the cylinder seals are good and the control valve is bypassing
If drift continues with cylinder isolated — cylinder piston seal has failed. Reseal cylinder
Control valve bypass confirmed — owner reports full valve replacement was the only permanent fix. Spool seals may be available for DIY rebuild if comfortable with hydraulic valve work

See our Kubota Loader Drift Guide and Kubota Cylinder Seal Guide. DIY cost: $200–$800. Dealer cost: $800–$2,000.

Problem #5 — Fuel Line Clamp Leak

Symptoms

“A very tiny clamp on the fuel line came loose” — diesel seeping from fuel line connection
Diesel smell after operation — especially noticeable when hot
Smoke from diesel contacting hot engine components
Rough running or hard starting from fuel starvation if leak is significant

Root Causes

Weak factory spring clamp — original equipment clamps lose tension over years of heat cycling
Aged fuel hose becoming brittle and pulling away from fitting
Vibration loosening clamp over time

✓ Fix: Inspect all fuel hose clamps — particularly the tank-to-filter line and return line connections. Replace spring clamps with screw-type worm gear clamps for positive retention. If hose is aged, brittle, or cracked replace the affected section with fuel-rated hose. After any fuel line repair bleed the system completely and check for air before startup. This is one of the cheapest fixes on the L5740 — $5–$30 in clamps and hose versus $100–$300 dealer visit.

See our Kubota Fuel Line Guide. DIY cost: $5–$30. Dealer cost: $100–$300.

Problem #6 — Safety Switch / PTO Interlock No-Start Faults

Symptoms

PTO indicator light stays on — tractor refuses to start or move
Tractor shuts off when operator shifts weight on seat
Fuses not clearly labeled — difficult to trace electrical fault without wiring diagram
Intermittent no-start that resolves after cycling PTO lever or repositioning on seat

Root Causes

Seat switch misalignment — operator position activating switch incorrectly
PTO switch fault or misadjusted PTO lever not fully disengaging switch
Corroded connector in interlock circuit
HST pedal neutral switch — pedal must be in true neutral for start permission

📋 Diagnosis — Step by Step

Test seat switch — hold seat switch down manually while attempting to start. If it starts, seat switch is misaligned or failing
Verify PTO lever fully disengaged — PTO must be completely in the off position for interlock to allow start. Adjust linkage if lever doesn’t fully actuate switch
Test PTO switch continuity — with PTO lever fully off, switch should show closed circuit. Test with multimeter
Check HST pedal in neutral — pedal must be fully centered for neutral switch to close
Clean all interlock connectors — electrical contact cleaner on each connector in the start circuit
Reference wiring diagram — unlabeled fuses are a known L5740 frustration. Obtain wiring diagram from operator manual or dealer before replacing fuses blindly

See our Kubota Safety Switch Guide and Kubota PTO Problems Guide. DIY cost: $0–$60. Dealer cost: $150–$400.

Problem #7 — Ride Quality, Traction and Loader Ergonomics

Symptoms

Harsh ride — R4 industrial tires transmit more vibration than R1 ag tires
Tractor feels top-heavy or has more body roll than expected
Rear wheel slip under heavy loader work
Feels like a larger tractor than it is — longer wheelbase feel takes getting used to

Root Causes

R4 industrial tire choice — stiffer sidewall than R1 ag tires increases ride harshness
Insufficient rear ballast for loader work
Narrow rear wheel spacing — widening improves stability

💡 Setup Fixes — Not Mechanical Failures: These complaints are operator setup issues rather than mechanical defects. Add rear ballast before loader work — ballast box, wheel weights, or calcium-filled rear tires. Widen rear wheel spacing to the widest setting for stability. Consider R1 ag tires if the primary use is on soft or muddy ground and ride quality matters. Always keep the loader bucket low when traveling. These adjustments resolve all ride and stability complaints at no dealer cost.

DIY cost: $100–$400 for ballast. Dealer cost: N/A — operator setup issue.

🔧 Recommended Tools — L5740 Diagnosis

Digital Multimeter — switch testing and electrical diagnosis — View on Amazon →
Lucas Red N Tacky Grease — linkage and pivot lubrication — View on Amazon →
Nitrile Gloves — hydraulic and fuel system work — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Dealer vs DIY Cost — Kubota L5740 Common Repairs

Repair	DIY Cost	Dealer Cost	Savings
Hydraulic fluid + filter service	$100–$250	$350–$600	$250–$350
HST range switch B10402 replacement	$30–$150	$200–$600	$170–$450
Safety switch diagnosis + clean	$0–$60	$150–$400	$150–$340
Loader control valve replacement	$200–$800	$800–$2,000	$600–$1,200
Steering pump replacement	$300–$800	$800–$1,800	$500–$1,000
Fuel line clamp repair	$5–$30	$100–$300	$95–$270

Based on typical U.S. dealer rates of $120–$180/hr. One owner confirmed hydraulic fluid plus filters cost approximately $350 total at dealer for a full fluid change. Use our Tractor Repair vs Replace Calculator for major repair decisions.

Kubota L5740 Maintenance Schedule

Interval	Service Items
Every Use	Check engine oil level • Check hydraulic fluid level • Inspect fuel line clamps for wetness • Verify rear ballast before loader work
50 Hours	Change engine oil and filter HH1C0-32430 • Replace fuel filter 1J800-43170 • Inspect all safety switch connectors • Check fuel line clamps and hose condition
200 Hours	Replace hydraulic filter HHTA0-37710 • Replace air filter 59800-26110 • Check HST range switch B10402 connector • Inspect loader control valve for drift
400 Hours	Drain and refill hydraulic/transmission fluid with Super UDT2 • Change front axle fluid • Test all safety switches • Check steering response cold vs warm • Inspect all fuel line clamps and hoses

Frequently Asked Questions — Kubota L5740 Problems

Why does my L5740 keep dropping to turtle mode?

The L5740 HST Plus system includes stall guard and auto-downshift logic that deliberately reduces travel speed when the system detects overload — this is intentional behavior that can trigger incorrectly from a faulty range switch. Owners confirm that inspecting and replacing switch B10402 on the steering column resolved the turtle mode issue. Start by cleaning the switch connector with electrical contact cleaner and testing continuity in all range positions. If the switch tests intermittent or out of spec, replace it. Also temporarily disable the stall guard feature per the operator manual to confirm whether the auto-downshift logic or the switch itself is triggering the drop.

How does the L5740 compare to the L5460 and L6060?

The L5740 is part of the Grand L40 series while the L5460 and L6060 are later Grand L60 series tractors — they are the same product family but different generations. The L60 series introduced refinements in hydraulics, operator ergonomics, and electronic controls compared to the L40. Many owners evaluate them as direct alternatives for similar use cases. For parts, filter part numbers and fluid specifications differ between the generations — always verify by model and serial when ordering. The L5460 and L6060 are generally considered the evolution of the L5740’s platform with updated features.

Why is my L5740 steering weak only when cold?

Cold steering weakness on the L5740 points to either marginal hydraulic flow from a clogged filter, wrong or degraded fluid that is too thick when cold, or a steering pump with reduced output that only shows up when cold fluid creates higher resistance. Start with fluid and filter service — drain and refill with Super UDT2 and replace the hydraulic filter HHTA0-37710. Bleed the steering circuit by cycling lock to lock 10 times at low RPM. If symptoms persist after correct fresh fluid and a new filter, test steering pump pressure cold — below spec cold pressure with normal warm pressure confirms pump wear requiring replacement.

What fluid and filters does the L5740 use?

Engine oil is 15W-40 diesel API CF or higher at approximately 9.9 quarts with filter — use Shell Rotella T6 15W-40 or equivalent. Hydraulic and transmission system uses Kubota Super UDT or Super UDT2 exclusively at approximately 11.9 US gallons total capacity. Front axle uses Super UDT2 or SAE 80W-90 at approximately 9.5 quarts. Confirmed filter part numbers: oil filter HH1C0-32430, hydraulic filter HHTA0-37710, air filter 59800-26110, fuel filter 1J800-43170. Verify all part numbers against your serial number at a Kubota dealer before ordering.

Why does my L5740 loader bucket dump overnight?

Bucket drift with no external hose or cylinder leak is almost always internal bypass in the loader control valve spool. The spool lands wear over time and allow fluid to leak past even when the valve is centered. To confirm whether it is the valve or the cylinder: disconnect and cap the quick couplers — if drift stops, the leak is at the tractor-side valve. If drift continues with couplers capped, disconnect and cap the cylinder ports — if drift stops, cylinder piston seals have failed. Most L5740 owners find the control valve is the cause. Full valve replacement was confirmed by one owner as the only permanent fix.

What years was the L5740 produced and what changed?

The L5740 was produced from approximately 2007 to 2012 as part of the Grand L40 series. Model year differences are primarily configuration-based rather than mechanical redesigns — cab versus open station, R1 versus R4 tire choice, HST Plus features including auto-throttle, and options like rear remotes, block heater, and mid-PTO. The 2012 models are referenced as HST3 configuration in owner forums. The basic platform and mechanical specifications remained consistent throughout the production run. Always verify by serial number when ordering parts as option-based differences can affect specific component numbers.

Is the L5740 a reliable tractor?

The L5740 has a strong overall reputation — owner reviews consistently praise its power and capability for a compact utility tractor. The weak spots are concentrated in the hydraulic and electrical control layer rather than the engine or transmission mechanicals. The HST turtle mode issue, cold steering weakness, and safety switch faults frustrate owners because they are diagnostic puzzles rather than straightforward parts replacements. Engine and transmission failures on properly maintained L5740s are rare. Regular hydraulic fluid changes every 400 hours, filter service every 200 hours, and annual switch connector cleaning prevent the majority of reported problems.

Related Kubota Grand L Series Guides

Kubota L5460 Problems Guide →

Grand L60 series successor — direct comparison

Kubota L6060 Problems Guide →

L60 series platform comparison and diagnosis

Kubota HST Transmission Problems →

Complete HST diagnosis including turtle mode

Kubota Power Steering Guide →

Steering pump diagnosis for cold weakness

Kubota Loader Drift Guide →

Valve vs cylinder diagnosis for bucket drift

Kubota Safety Switch Guide →

PTO interlock and seat switch diagnosis

The L5740’s reputation is strong — the engine and transmission rarely fail on maintained machines. The problems that frustrate owners are in the control layer: the HST turtle mode switch, cold steering flow, loader valve bypass, and safety switch logic. These are diagnostic puzzles that require systematic testing rather than parts throwing. Change hydraulic fluid every 400 hours with Super UDT2, replace filters every 200 hours, clean switch connectors annually, and inspect fuel line clamps at every service. Resolve turtle mode by checking switch B10402 before any other HST work. For more Kubota DIY guides, OEM part numbers, and troubleshooting help visit TractorPartsCentral.com.

This article contains affiliate links. TractorPartsCentral.com is a participant in the Amazon Services LLC Associates Program. When you purchase through our links, we may earn a small commission at no additional cost to you. All product recommendations are based on fit, quality, and owner feedback.
