⚡ Quick Answer:
Kubota tractors losing power under load usually trace to a clogged air filter, fuel starvation from a restricted filter or air leak, hydraulic overload on HST models, turbo boost leaks on turbocharged models, or DPF derate on Tier 4 M-series machines. Start with the free checks — air filter and fuel filter — before assuming injector or engine failure. Most power loss complaints on BX, B, and L series are solved for under $50 in parts. DPF-equipped M6060 and M7060 owners should check for regen warnings first.

Kubota Power Loss — Quick Reference

Cause	Key Symptom	First DIY Step	DIY Cost
Clogged Air Filter	Black smoke, lazy throttle	Inspect and replace filter	$15–$35
Fuel Starvation	Bogs under load, worse when hot	Replace fuel filter, check cap vent	$15–$40
HST Charge Pump Wear	Bogs when loader or PTO engaged	Check hydraulic fluid and filter	$20–$250
Turbo Boost Leak	Hiss under load, black smoke	Inspect charge air hoses and clamps	$10–$80
DPF Restriction	PM lamp on, power derate	Run forced regen cycle	Free–$400
Injector Wear	Hard start + power loss, rough idle	Add injector cleaner, pressure test	$20–$600
Compression Loss	Persistent power loss all conditions	Compression test each cylinder	$0 test, $800–$3,000 repair

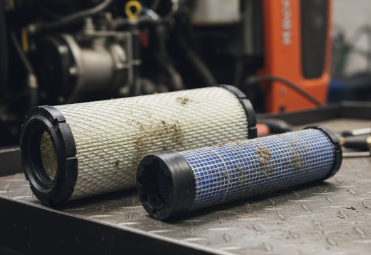

Problem 1: Clogged Air Filter — Most Common on BX & B Series

A restricted air filter is the single most overlooked cause of power loss under load. Kubota diesel engines depend on a precise air-to-fuel ratio — when the air filter restricts intake flow, the engine runs rich, produces black smoke, and loses the ability to make power when you ask it to pull hard. The problem sneaks up gradually and owners often assume something mechanical is failing when the fix costs $20.

Symptoms

• Black smoke from exhaust, especially under load
• Lazy or sluggish throttle response
• Engine “chokes” when asked to pull hard
• Power loss that gets worse in dusty conditions
• Loss of top RPM under full load

Models Most Affected

BX2380, BX23S, B2601, B2650 — compact models used for low-speed, high-load chores where small restrictions show up fast. Also common on L3901 and MX5400 used for brush hogging and tillage in dusty conditions.

OEM Air Filter Part Numbers

Model	Outer Filter	Inner Filter	Interval
BX2380 / BX23S	6C060-99410	6C050-99410	200–400 hrs
B2601 / B2650	6C060-99414	Verify by serial	200–400 hrs
L3901 / L4701	K1211-82320	Verify by serial	200 hrs or yearly
MX5400	R1401-42270	Verify by serial	200 hrs or yearly

DIY Fix

Remove the air filter housing and inspect the outer element — hold it up to a light source. If you can’t see light through the pleats, replace it. Never blow compressed air into the filter from the outside in; if you must reuse it temporarily, blow gently from inside out at low pressure. Replace both outer and inner elements together. Always replace in dusty conditions, never clean and reuse.

When to Call the Dealer

Air filter replacement is a straightforward DIY job on all models. No dealer visit needed unless the intake tube or housing is cracked and needs replacement — that runs $80–$200 parts and labor.

🔧 Recommended: Kubota Air Filter K1211-82320

OEM-spec air filter for L3901, L4701 and compatible L series models. Replace every 200 hours or yearly in dusty conditions — never try to clean and reuse a heavily contaminated filter.

Check Price on Amazon →

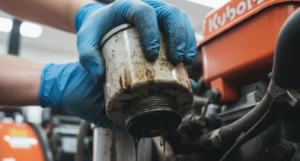

Problem 2: Fuel Starvation — Clogged Filter, Air Leaks & Tank Vent

Fuel starvation is the second most common cause of under-load power loss — and one of the trickiest to diagnose because the tractor often starts and runs normally until you put it under real load or let it get hot. Owners describe it as “bogs after 20 minutes,” “runs fine empty but dies pulling the brush hog,” or “worse when the fuel tank gets below half.” All of these point to a restriction that limits fuel delivery when demand is highest.

Symptoms

• Power loss that gets worse as the engine heats up
• Runs fine light but bogs under PTO or loader load
• Sputtering at higher throttle settings
• Improves temporarily after fuel filter replacement but returns
• Worse when fuel level is low (tank pickup starving)

OEM Fuel Filter Part Numbers

Model	Fuel Filter Part #	Service Interval
BX2380 / BX23S	12581-43012	200 hours
B2601 / B2650	6A320-59930	100 hours
L3901 / L4701	HH1J1-43172	200 hours
L6060	Verify by serial	400 hours
MX5400	Verify by serial	400 hours

DIY Fix

Replace both primary and secondary fuel filters. Pre-fill the new filter with clean diesel before installing to minimize air introduction. Inspect all fuel hose connections and re-clamp any that have loosened. After replacement, bleed the fuel system — see our fuel system bleeding guide for model-specific steps. If starvation persists after filter replacement, clean the fuel tank and blow out the pickup tube from the outlet back into the tank.

When to Call the Dealer

If tank cleaning and line bleeding don’t resolve the issue, fuel lift pump failure may be the cause. Dealer diagnosis and pump replacement runs $250–$700 depending on model. See our complete Kubota fuel pump problems guide for diagnosis steps.

🔧 Recommended: Kubota Fuel Filter 12581-43012

OEM-spec fuel filter for BX series. Replace every 200 hours or at the first sign of power loss under load — always bleed the fuel system after replacement to purge air pockets.

Check Price on Amazon →

Problem 3: HST Charge Pump Wear — Power Loss When Hydraulics Engaged

On HST-equipped tractors, a worn charge pump is a sneaky cause of under-load power loss that owners often mistake for an engine problem. The charge pump maintains low-pressure fluid supply to the HST circuit — when it wears, the tractor bogs under loader or PTO load because hydraulic demand can’t be met. The engine itself is fine; the hydraulic system is dragging it down.

Symptoms

• Power loss specifically when loader or 3-point hitch is engaged
• Tractor “won’t pull like it should” under combined load
• HST whining louder than normal under load
• Hydraulic response slow or sluggish
• Symptoms worse when hydraulic fluid is low or cold

Models Most Affected

BX2380, BX23S, B2601, L3901 — all compact HST models used for loader work. Charge pump wear typically appears after 1,500–2,500 hours or when the wrong fluid or a neglected filter service accelerates internal wear.

DIY Fix — Start Here Before Replacing the Pump

1. Check hydraulic fluid level first — low fluid is the most common cause of HST bogging. Top up with Kubota Super UDT2 only.
2. Replace the hydraulic filter — a clogged filter restricts suction to the charge pump and mimics pump failure. Replace at 200-hour intervals.
3. Check for wrong fluid — if standard ATF or generic hydraulic oil was ever used, drain and refill with Super UDT2 completely.
4. Pressure test the charge circuit — connect a hydraulic pressure gauge to the test port and compare to service manual spec. Below spec confirms charge pump wear.

For detailed HST diagnosis see our Kubota HST transmission problems guide.

When to Call the Dealer

If pressure test confirms charge pump failure after fluid and filter service, charge pump replacement runs $800–$2,000 DIY parts plus labor, or $2,500–$4,500 at the dealer for complete HST service.

🔧 Recommended: Hydraulic Pressure Gauge Kit

Essential for diagnosing charge pump pressure, relief valve settings, and confirming HST system health. Pays for itself the first time you avoid a dealer diagnostic fee.

Check Price on Amazon →

Problem 4: Turbocharger Failure or Boost Leak — L6060, MX5400 & M Series

The L6060, MX5400, and M-series tractors are turbocharged — and boost leaks are a real cause of under-load power loss that owners frequently mistake for injector or engine problems. When a charge air hose clamp loosens or an intercooler connection fails, compressed air escapes before it reaches the cylinders. The result is exactly like being naturally aspirated — black smoke, poor pulling power, and a hiss or whistle under load.

Symptoms

• Hissing or whistling noise under hard acceleration
• Black smoke under load despite clean air filter
• Power loss that appears gradually as clamp works loose
• Oil mist residue on charge air hose ends
• Engine pulling fine at light load but falling flat under heavy load

DIY Boost Leak Diagnosis

1. With engine off, visually inspect all charge air hoses from turbo outlet to intake manifold — look for cracks, loose clamps, and oil mist residue at hose ends.
2. Check intercooler inlet and outlet connections for looseness.
3. Inspect the intake tube between air filter and turbo inlet for cracks or loose clamps.
4. For a definitive test, pressurize the charge air system with low regulated shop air (no more than 15 PSI) with the engine off and use soapy water to find leaks at hose connections.

DIY Fix

Tighten all charge air hose clamps and replace any hoses showing cracks or hardening. Clamp replacement costs $5–$15 each. Full charge air hose replacement on L6060 and MX5400 runs $40–$120 in parts and takes 30–60 minutes. If the turbo itself is failing (bearing noise, shaft play, oil burning), replacement runs $600–$1,500 parts plus $400–$600 dealer labor.

When to Call the Dealer

Turbo replacement and boost system diagnosis on M-series tractors is best left to a dealer with factory diagnostic tools, especially if fault codes are present. Dealer turbo replacement runs $1,500–$3,500 all-in depending on model.

Problem 5: DPF Restriction & Regen Failure — M6060 & M7060 Only

The M6060 and M7060 use a Diesel Particulate Filter that traps soot from combustion. Under normal operating conditions the engine automatically burns off accumulated soot during passive or active regeneration cycles. But when the tractor is run at low load and low RPM for extended periods — light mowing, short trips, idling — soot builds up faster than regen can clear it. The result is a progressive power derate that leaves M-series owners confused about why their 60+ HP tractor suddenly feels underpowered.

Symptoms

• PM (Particulate Matter) warning lamp illuminated on dash
• Noticeable power reduction under load
• Tractor requests parked regen — flashing regen lamp
• Error codes P2002 or P242F stored in ECU
• Power recovers after successful regen cycle

DIY Fix — Forced Regen Procedure

1. Park on level ground away from flammable materials — exhaust gets extremely hot during regen.
2. Confirm fuel level is above quarter tank and coolant temperature is at normal operating range.
3. Follow the forced regen procedure in your M6060/M7060 operator manual exactly — steps vary by model year.
4. Do not interrupt the regen cycle once started — incomplete regen makes soot buildup worse.
5. Keep all personnel away from the exhaust outlet during the cycle.

For complete DPF diagnosis and error code reference see our Kubota DPF regen failures guide.

When to Call the Dealer

If forced regen doesn’t clear the fault or the PM lamp returns within a few hours, professional DPF cleaning or replacement may be required. Dealer DPF cleaning runs $300–$600. Full DPF replacement on M-series runs $1,200–$2,500 including labor.

Problem 6: Injector Wear or Fouling — All Series at High Hours

Injector problems are less common than the causes above but become more likely on high-hour machines or after contaminated fuel events. Worn or fouled injectors produce inconsistent spray patterns that result in incomplete combustion — less power per stroke, more smoke, and rough running under load. The key diagnostic clue is that injector problems usually start with hard starting before progressing to under-load power loss.

Symptoms

• Hard starting, especially cold, appearing before power loss
• Rough idle and misfiring under load
• Persistent power loss even after filters and glow plugs are replaced
• Black or white smoke under load despite clean air filter
• Inability to maintain RPM under full load

DIY Diagnosis

Add a quality diesel injector cleaner to a full tank of fresh ULSD fuel and run through a full tank under working conditions. If power improves measurably after the treatment, injector fouling was contributing to the problem. For a definitive diagnosis, a dealer with injector pop testing equipment can test each injector’s spray pattern and opening pressure. Injector testing runs $150–$300 at a diesel shop.

When to Call the Dealer

Individual injector replacement on Kubota compact diesels runs $200–$400 per injector including parts and labor. A full set on a 3-cylinder engine (BX/B/L series) runs $600–$1,200 at a dealer. DIY injector replacement is possible but requires a torque wrench, copper crush washers, and careful attention to torque specs to avoid damaging the head.

🔧 Recommended: Diesel Injector Cleaner

Add to a full tank of fresh ULSD diesel as a first step when suspecting injector fouling. Safe for all Kubota diesel engines and effective at cleaning mild carbon deposits and improving spray patterns before committing to expensive injector testing or replacement.

Check Price on Amazon →

Problem 7: Engine Compression Loss — High-Hour Machines

Compression loss from worn piston rings or valves is the most serious cause of under-load power loss — and fortunately the least common on well-maintained Kubota engines. The D902, D1105, and V2403 engines are built to go well past 5,000 hours when serviced properly. Compression loss typically appears on machines past 3,000–4,000 hours or those that have run with neglected oil changes, overheating events, or contaminated fuel.

Symptoms

• Persistent power loss that doesn’t respond to filters, fluid, or injector treatment
• Hard starting in all conditions including warm weather
• Excessive crankcase blowby — oil mist from breather tube
• Blue-white smoke from exhaust (burning oil)
• High oil consumption between changes

DIY Compression Test

A diesel compression tester is available at most auto parts stores for $40–$80. Remove all glow plugs, disable the fuel shutoff solenoid, and crank each cylinder for 4–5 seconds with a helper while you read the gauge. Minimum acceptable compression for Kubota compact diesels is typically 427–470 PSI depending on engine. A reading 20% below the highest cylinder indicates a problem in that cylinder. Consult your specific engine service manual for exact specs on D902, D1105, and V2403 engines before condemning any cylinder.

When to Call the Dealer

Confirmed compression loss requires engine rebuild or replacement. A top-end rebuild (rings, valves, head gasket) on a Kubota compact diesel runs $1,500–$3,500 at a dealer. Complete engine replacement runs $3,500–$6,000+ depending on model. On high-hour machines this is the time to use our Repair vs Replace Calculator to determine if rebuilding makes financial sense.

🚜 Own a Kubota L6060? See our complete Kubota L6060 Problems Guide — DPF regen failures, hydraulic issues, electrical faults and dealer vs DIY cost comparisons.

🚜 Own a Kubota MX5400? See our complete Kubota MX5400 Problems Guide — DPF failures, HST jerking, hydraulic issues and safety recall information.

🚜 Kubota shuts off while running? See our complete Kubota Shuts Off While Running Guide — 7 causes ranked by likelihood with DIY fixes for BX, B, L and M series.

🚜 DPF warning light on? See our complete Kubota DPF Regen Problems Guide — 7 causes ranked by likelihood with error codes, forced regen procedure and sensor OEM part numbers for L6060, MX5400, M6060 and M5-111.

Dealer vs DIY Cost Comparison

Problem	DIY Cost	Dealer Cost	Potential Savings
Air Filter Replacement	$15–$35	$60–$120	Up to $105
Fuel Filter + Bleed	$15–$40	$150–$300	Up to $285
Hydraulic Filter + Fluid	$80–$200	$300–$600	Up to $520
Boost Leak Repair	$10–$120	$200–$500	Up to $490
DPF Forced Regen	Free	$150–$300	Up to $300
Injector Cleaner Treatment	$20–$30	$150–$400 diagnostic	Up to $380
Compression Test	$40–$80 (gauge)	$150–$250	Up to $210

Preventive Maintenance to Avoid Power Loss

Interval	Service Item	Applies To
Every 50 hrs	Engine oil and filter change	All series
Every 100–200 hrs	Fuel filter replacement + system bleed	All series (100 hrs B series, 200 hrs BX/L)
Every 200 hrs or yearly	Air filter outer element replacement	All series — more often in dusty conditions
Every 200 hrs	Hydraulic/HST filter replacement	All HST series
Every 400 hrs	Fuel filter replacement	L6060, MX5400, M series
As needed	DPF forced regen when PM lamp illuminates	M6060, M7060 only

❓ Frequently Asked Questions

QWhy does my Kubota only lose power when it gets hot?

Heat-related power loss almost always points to fuel starvation — either a clogged fuel filter that restricts more as fuel temperature rises and viscosity changes, a fuel cap vent that creates increasing tank vacuum as fuel is consumed, or air leaks in fuel lines that worsen as rubber softens with heat. Start by loosening the fuel cap slightly while the tractor is bogging — if power returns, the cap vent is blocked. If not, replace the fuel filter and bleed the system thoroughly.

QWhy does my Kubota bog down when I use the loader or engage the PTO?

Power loss specifically when hydraulics or PTO are engaged usually points to HST charge pump wear or a clogged hydraulic filter. The hydraulic system is drawing more power than the engine can spare. Start by checking hydraulic fluid level and replacing the hydraulic filter — both are free or cheap first steps. If the problem persists after fresh fluid and a new filter, connect a hydraulic pressure gauge to the charge circuit test port. Below-spec pressure confirms charge pump wear requiring rebuild or replacement.

QCould a plugged fuel cap cause my Kubota to lose power under load?

Yes — this is one of the most commonly overlooked causes of power loss and it costs nothing to test. A blocked fuel cap vent creates increasing vacuum in the tank as fuel is consumed, eventually starving the fuel pump. The symptom pattern is classic: tractor runs fine with a full tank, gets progressively worse as fuel level drops, and may recover briefly if you add more fuel. Test it by loosening the cap while the tractor is running poorly — if power returns within seconds, replace the cap. New caps cost $15–$25.

QMy Kubota M7060 loses power when hot — is there a service bulletin for this?

Yes — the M7060 has been referenced in forum discussions on OrangeTractorTalks with a specific hot-loss-of-power bulletin related to the fuel system and turbo boost plumbing. If your M7060 loses power specifically after reaching operating temperature under load, have your dealer check for open TSBs against your serial number. Common culprits on the M7060 are the DPF soot level causing a power derate, a boost hose clamp loosening with heat, and fuel delivery issues. A dealer with factory diagnostic software can read live data to confirm which system is derating power.

QWhat is the correct diagnostic order when my Kubota loses power under load?

Always work cheapest and simplest first.Check air filter (free, 5 minutes). Next,  is the fuel cap vent (free, 30 seconds). Replace fuel filter and bleed system ($15–$40, 30 minutes). Next, Ensure hydraulic fluid level and replace hydraulic filter ($80–$150, 30 minutes). Inspect charge air hoses and clamps on turbocharged models (free, 15 minutes). Step 6 — check for DPF warning lamps on M6060/M7060 and run forced regen if indicated. Step 7 — add injector cleaner and run through a full tank. Only after all of these fail should you proceed to injector testing or compression testing.

QDoes my Kubota BX or B series have a turbo or DPF?

No — BX and B series tractors are naturally aspirated and DPF-free. The BX2380, BX23S, B2601, and B2650 all use small naturally aspirated Kubota diesel engines that achieve Tier 4 compliance through combustion optimization and a simple DOC oxidation catalyst, not a DPF. There are no forced regen cycles, no soot codes, no turbo boost leaks to worry about. Power loss on these models is almost always fuel, air, or HST related — start with filter replacement and hydraulic service before assuming anything more serious.

QHow long do Kubota diesel engines last before compression loss becomes a problem?

Well-maintained Kubota D902, D1105, and V2403 engines routinely exceed 5,000 hours before significant compression loss. The most important factors are consistent 50-hour oil changes with the correct viscosity, never running low on coolant, and using only clean ULSD fuel. Overheating events, neglected oil changes, and contaminated fuel are the primary causes of premature wear. If your tractor is under 3,000 hours and showing compression symptoms, investigate overheating history and oil service records before assuming normal wear. Under 2,000 hours with compression loss almost always points to a specific event rather than normal wear.
