Kubota MX6000 Problems: Troubleshooting Guide (2026)

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

The Kubota MX6000 is a reliable utility tractor — most owner complaints are operational rather than mechanical. The top issues are DPF regen annoyance during light-duty work, seat comfort, and HST ergonomics rather than hard-part failures. The V3307-CR engine runs well beyond 500 hours with proper maintenance. Key service intervals: oil at 50 hours then every 200 hours, hydraulic filter at 50 hours then every 400 hours, fuel filter every 400–500 hours. DPF ash cleaning not needed until 3,000–5,000 hours. Most issues are preventable — this guide shows you how.

Kubota MX6000 Key Specifications

Spec	MX6000 Detail
Engine	Kubota V3307-CR-TE4, 4-cylinder common-rail diesel
Gross HP	~63.4 hp at 2,700 rpm
PTO HP	~51.8 hp
Emissions	Tier 4 Final — DPF, EGR, common-rail injection
Transmission	12F/12R gear with shuttle OR HST — 2WD/4WD
Hydraulic Flow	9.5 gpm implement + 4.9 gpm steering (14.4 gpm total)
3-Point Lift	~2,310 lb at 24 in behind lift point (Cat I/II)
Rear Remotes	0 standard — 1 to 3 available as dealer options
vs MX5400	~10+ more gross hp, higher PTO capacity, same chassis
New Price	~$45,000–$60,000 with loader (cab/HST varies)

The Kubota MX6000 is the higher-powered sibling of the MX5400, sharing the same V3307-CR-TE4 engine and chassis but delivering roughly 10 more horsepower for heavier loader and PTO work. Forum reviews from owners with 100–500+ hours consistently say the same thing: this is a well-built tractor with few hard failures, but the Tier 4 DPF system catches new owners off guard, and a handful of comfort and ergonomic complaints are worth knowing before you buy or service one.

This guide covers every real-world MX6000 issue reported by owners — DPF regen behavior, hydraulic setup problems, transmission quirks, electrical faults, and the service intervals that keep this tractor out of the shop.

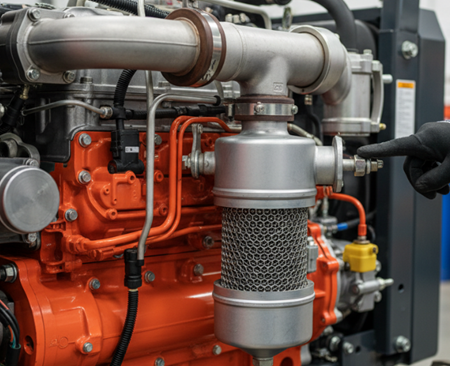

DPF & Regen Problems (Most Common MX6000 Complaint)

The DPF (Diesel Particulate Filter) is the #1 topic in every MX6000 owner thread. It’s not a defect — it’s a Tier 4 Final emissions system doing its job. But if you don’t understand how it works, it feels like a constant nuisance. Here’s exactly what the dash lights mean and what to do.

DPF Warning Light Sequence — What Each Stage Means

Warning Stage	What You See	What To Do
Stage 1 — Normal	Yellow DPF icon steady	Active regen in progress — keep working, maintain rpm
Stage 2 — Needs RPM	Yellow DPF + raise rpm light	Bump throttle to 2,200–2,500 rpm and continue work
Stage 3 — Parked Regen	Flashing regen icon + beeper	Park safely, engage brake, neutral, raise rpm — press regen button
Stage 4 — Lockout	Red DPF + continuous beeper + park brake symbol	Tractor limits work until parked regen completed — do not ignore

⚠️ Key Rule: Never repeatedly cancel active regens. Each cancelled regen adds soot load. Reach Stage 4 too many times and you’ll need a dealer-forced regen or DPF cleaning. Run at or above 2,200 rpm when the yellow light appears and let it finish.

Two DPF Buttons — What They Do

Parked Regen Button (no slash)

Initiates a manual parked regen when conditions are met — tractor parked, brake set, neutral, rpm raised. Use when Stage 3 warning appears.

DPF Inhibit Button (slash icon)

Temporarily blocks automatic regen — intended ONLY for fire-risk situations like dry grass. Leaving this on causes rapid soot buildup. Turn it off when safe.

💡 Hidden Diagnostic Mode: Hold both orange DPF buttons simultaneously while turning the key on to access the MX6000’s dash diagnostic mode. It will display simple letter/number codes showing stored DPF warnings. Note: this clears dash history only — ECU fault codes still require a dealer scan tool.

Why Regens Happen Too Often

Frequent regens on a new MX6000 are almost always a usage pattern issue, not a fault:

Causes of Frequent Regen

Extended operation below 2,000 rpm
Short-cycle loader work with frequent stops
Repeatedly cancelling active regens
DPF inhibit switch left on accidentally
Poor fuel quality or water in fuel

How to Reduce Regen Frequency

Run at 2,200+ rpm during work cycles
Allow active regens to complete fully
Use quality ULSD fuel only
Drain water separator weekly
Avoid excessive idling after heavy work

When You Need a Dealer — DPF Cleaning Costs

If an MX6000 comes in with chronic regen failures, here’s what dealers actually do:

Scan ECU for stored soot-load percentage and fault codes — DPF differential pressure, exhaust temp sensor, regen failure codes

Verify DPF inhibit switch is off and auto-regen is enabled

Measure DPF differential pressure at idle and elevated rpm — distinguishes plugged filter from sensor issues

Perform dealer-forced regen via laptop if soot load and conditions allow

If backpressure remains high — remove DPF canister for professional cleaning or replacement

DPF Service	Cost Range	Notes
Professional DPF cleaning	$400–$700	Bake/blow or liquid cleaning off-tractor
OEM DPF replacement	$2,000+ parts only	Plus labor — avoid by preventing soot overload
Ash cleaning interval	3,000–5,000 hours	ECU monitors and alerts when due
ECU software update	Dealer only	May refine regen frequency on chronic cases

See our complete Kubota DPF Cleaning Guide for full step-by-step procedures and cost breakdown.

🔧 Diagnostic Tools for MX6000 DPF Issues

OBD2 Diesel Scan Tool

Read DPF fault codes and monitor soot load percentage on MX6000.

View on Amazon →

Kubota 4-Pin OBD Adapter ⭐

Required adapter to connect scan tool to Kubota diagnostic port.

View on Amazon →

Common Rail Fuel Pressure Gauge

Verify V3307-CR rail pressure before diagnosing injector or fuel system faults.

View on Amazon →

⚠️ Affiliate Disclosure: We may earn a commission from qualifying purchases at no extra cost to you.

Engine & Fuel System Problems

Owner forums don’t show a pattern of MX6000-specific injector or fuel pump failures — most fuel issues trace back to contaminated fuel, water in the separator, or neglected filter changes. The V3307-CR is a robust engine when fed clean fuel and serviced on schedule.

Common Fuel System Symptoms

Hard Starting

Air in system after filter change
Hand primer not fully used
Water in fuel separator
Clogged primary fuel filter

Power Loss & Surging

Restricted fuel filter (200–400 hr mark)
Clogged tank strainer
Air intake restriction
Fuel starvation under load

Rough Idle / Smoke

White/grey smoke under light load
One cylinder missing or knocking
Contaminated or water-affected fuel
Injector spray pattern worn

💡 First Step for Any Fuel Issue: Check and drain the water separator before anything else. Water in diesel is the #1 cause of MX6000 fuel system problems. Drain weekly during active use, check the warning light every start-up.

Turbocharger — What to Watch For

MX6000 turbo failures are not a reported pattern in normal use hours. The main risk factors are short-cycling (shutting down immediately after heavy work without a cool-down idle) and extended idling with low exhaust temperatures. Watch for:

Whistling that changes rapidly with load changes
Oil in the compressor outlet hose
Blue smoke that increases with rpm

Always idle 2–3 minutes before shutdown after heavy work. See our Kubota Turbocharger Problems guide if symptoms develop.

🔧 MX6000 Fuel System Parts

MX5400/MX6000 Fuel Filter 2-Pack ⭐

OEM-spec replacement fuel filters direct-fit for MX5400 and MX6000. Replace every 400–500 hours.

View on Amazon →

Shell Rotella T6 5W-40

Full synthetic diesel engine oil — compatible with V3307-CR. Change at 50 hours then every 200 hours.

View on Amazon →

⚠️ Affiliate Disclosure: We may earn a commission from qualifying purchases at no extra cost to you.

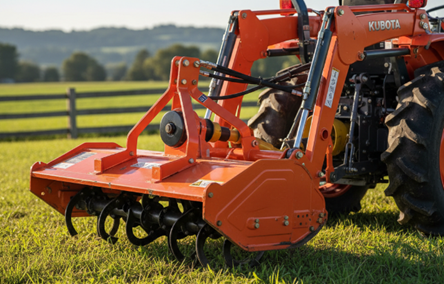

Hydraulic System Problems

MX6000-specific hydraulic failures are rare. Most issues are setup errors or generic compact-tractor problems. The open-center system feeds power steering, loader, remotes, and 3-point from the same circuit — 9.5 gpm implement flow with 2,310 lb lift capacity.

Most Common Hydraulic Issues

Symptom	Most Likely Cause	Fix
Slow/weak loader lift	Low fluid, wrong fluid type, clogged filter	Check level, verify UDT/Super UDT2, replace filter
3-point won’t move	Flow-control knob fully closed	Open drop-rate/flow-control knob under seat
Remotes not working	Quick couplers not fully seated	Reseat couplers — very common after implement swaps
Arms drift down at rest	Internal leakage past piston seals	Seal kit replacement — see cylinder drift guide
Raises but won’t lower	Flow-control valve stuck/contaminated	Flush system, replace hydraulic fluid

⚠️ Most Overlooked Fix: If your 3-point hitch suddenly won’t raise or lower, check the drop-rate/flow-control knob first — it’s located between the operator’s feet or under the seat depending on configuration. Accidentally closing it fully will stop all 3-point movement. This is the #1 “hydraulic problem” that isn’t a hydraulic problem at all.

Hydraulic Fluid & Filter Service

Use Kubota UDT or Super UDT2 fluid only. The 50-hour first filter change is critical — new tractors shed break-in particles that will damage components if left in the system.

🔧 MX6000 Hydraulic Filter

Kubota Hydraulic Filter HHTA0-37710 ⭐

Direct-fit hydraulic filter for L, M, and MX series including MX6000. Change at 50 hours then every 400 hours.

View on Amazon →

⚠️ Affiliate Disclosure: We may earn a commission from qualifying purchases at no extra cost to you.

For deeper hydraulic diagnosis see our Kubota Hydraulic Pump Failure guide and Hydraulic Fluid Change guide.

Transmission Problems (Gear & HST)

The MX6000 is available in both 12F/12R gear with hydraulic shuttle and HST configurations. Most transmission “problems” reported by owners are technique-related, not mechanical failures.

Gear Transmission Issues

Hard/notchy shifting — clutch not fully depressed or dragging
Gear grinding — range changes without full stop
Shuttle lag or harsh engagement
Clutch creep — pedal adjustment needed
Slipping under load — worn friction surfaces

HST Issues

Awkward pedal position when backing up — ergonomic, not a fault
Steering wheel clearance when adjusting seat
“Different sounds” vs gear tractor — normal HST behavior
HST jerking — check fluid level and condition first

💡 Gear Transmission Rule: Always use the clutch when changing direction with the shuttle and when shifting ranges — even though the shuttle lever is more convenient. Skipping the clutch accelerates shuttle wear and causes harsh engagement over time.

Clutch Checks — Gear Models

Creep with pedal down — clutch not releasing; check free-play adjustment
Grinding when selecting gears — clutch dragging; linkage wear at clevis pins
Slipping under load — oil contamination on friction surfaces from rear main or input shaft seal leak

See our Kubota Clutch Adjustment guide and Kubota Transmission Problems guide for detailed diagnosis.

Electrical System Problems

No pattern of chronic MX6000 electrical failures exists in owner forums. Most electrical issues are accessory-related or safety switch problems — common on any tractor of this complexity.

No-Crank / Won’t Start

Seat switch out of position
PTO switch not disengaged
Range selector not in neutral
Corroded battery terminals
Poor ground strap at frame

Fuse & Circuit Issues

Blown fuses from work-light add-ons
Accessory wiring spliced incorrectly
Cab models: radio/sprayer installs
HVAC fuse blown — cab fan failure

Cab-Specific Issues

Blower/A-C not working — fan speed resistor
Door switch causing beeping warnings
Cab interlock misadjusted
DPF sensor and warning light wiring

💡 First Check for Any No-Start: Before diagnosing anything electrical, check seat switch, PTO disengaged, and range selector in neutral. These safety interlocks cause the majority of “won’t crank” calls on MX6000 tractors. Clean battery terminals and check the ground strap second.

For deeper electrical diagnosis see our Kubota Fuse Box Problems guide and Kubota Won’t Start guide.

Real Owner Complaints (Forums & Reviews)

Based on OrangeTractorTalks, TractorByNet, AgTalk, and YouTube owner reviews, here’s what MX6000 owners actually complain about — and what they don’t:

Complaint	Severity	Fix / Workaround
Seat comfort — too rough	Moderate	Many owners upgrade to Grammer or Kubota air-ride seat as drop-in replacement
R14 tire vibration on hard surfaces	Moderate	Reduce tire pressure slightly — owners report significant improvement
DPF regen annoyance	Low (operational)	Run at 2,200+ rpm, allow regens to complete — not a mechanical fault
HST pedal ergonomics when backing	Low (design)	Seat position adjustment helps — no mechanical fix available
Rough ride on uneven ground	Low	Air-ride seat upgrade, tire pressure reduction

✅ The Bottom Line: Owners with 500+ hours consistently report no major mechanical failures. The MX6000 earns its reputation as a durable, capable utility tractor. Most “problems” are comfort preferences and Tier 4 DPF education — not hard-part failures.

MX6000 Service Intervals — Complete Schedule

Service Item	First Service	Regular Interval
Engine oil & filter	50 hours	Every 200 hours or annually
Hydraulic/HST filter	50 hours ⭐ critical	Every 400 hours
Hydraulic/transmission fluid	—	Every 400 hours or 2 years
Fuel filter	—	Every 400–500 hours
Front axle gear oil (4WD)	50 hours	Every 300–400 hours
Water separator drain	—	Weekly during active use
Valve adjustment	—	Every 1,200 hours (V3307 spec)
DPF ash cleaning	—	3,000–5,000 hours (ECU-monitored)

⭐ Most Critical: The 50-hour hydraulic filter change is non-negotiable on a new MX6000. Break-in particles circulate through the entire hydraulic system and will damage pumps and valves if left past 50 hours. Do not skip this service.

💡 Is Your MX6000 Worth Repairing?

Facing a major repair bill? Use our FREE Repair vs. Replace Calculator to check if the repair makes financial sense before you commit.

Calculate Your Tractor’s Value →

Frequently Asked Questions

QWhat are the most common Kubota MX6000 problems?

The most common MX6000 complaints are DPF regen annoyance during light-duty work, seat comfort on rough terrain, R14 tire vibration on hard surfaces, and HST pedal ergonomics when backing. Actual mechanical failures are rare — most owners with 500+ hours report no major hard-part issues. Proper DPF management and on-schedule servicing prevents the majority of problems.

QWhy does my Kubota MX6000 keep going into regen?

Frequent regens are almost always caused by operating below 2,000 rpm for extended periods, repeatedly cancelling active regens, or leaving the DPF inhibit switch on accidentally. The fix is operational: run at 2,200+ rpm during work cycles, allow regens to complete fully, and never leave the inhibit switch on. If regens remain unusually frequent after correcting usage habits, have the dealer scan for stored DPF fault codes and check for a possible ECU software update.

QIs the Kubota MX6000 gear or HST?

The MX6000 is available in both configurations — 12F/12R gear drive with hydraulic shuttle or HST (hydrostatic transmission), each in 2WD or 4WD. Gear models are preferred for heavy loader and bush-hogging work where efficiency matters. HST is popular for mowing and applications requiring frequent direction changes. Both share the same V3307-CR engine and hydraulic system.

QWhat is the difference between MX5400 and MX6000?

Both use the same Kubota V3307-CR-TE4 engine and share the same chassis, cab, and hydraulic/transmission configurations. The MX6000 delivers roughly 10 more gross horsepower (~63 hp vs low 50s) and higher PTO capacity, making it better suited for demanding loader work, larger rotary cutters, and heavier implements. The price premium is modest — if you regularly push the MX5400 hard, the MX6000 is worth it.

QHow often does the MX6000 DPF need cleaning?

Under normal operation the DPF ash cleaning is not scheduled until 3,000–5,000 engine hours — many owners will never reach that point. Soot is burned off automatically during every regen cycle. The ECU monitors ash load and will display a DPF service warning when cleaning is due. Premature DPF issues are almost always caused by operating habits (low rpm, cancelled regens) rather than the filter reaching end of life.

QMy MX6000 3-point hitch won’t move — what should I check first?

Check the drop-rate/flow-control knob first — it’s located between the operator’s feet or under the seat. If it’s been accidentally turned fully closed, the 3-point will not raise or lower regardless of the control lever position. This is the most common cause of sudden 3-point failure on MX6000 tractors and takes 10 seconds to check. If the knob is open, check hydraulic fluid level and filter condition next.
