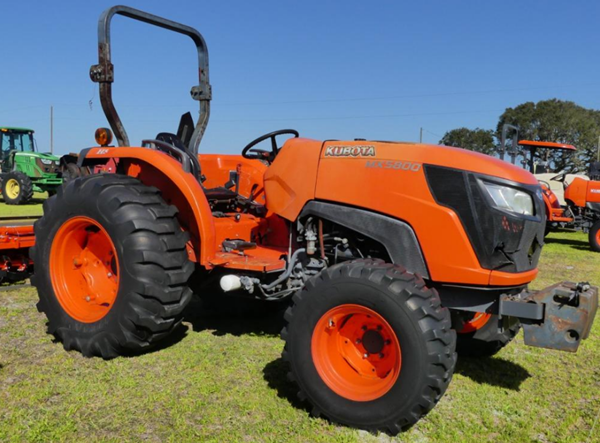

Kubota MX5800 Problems: 7 Most Common Issues & Fixes

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

The Kubota MX5800 is a hydrostatic (HST-only) 4WD utility tractor with a V2403 common-rail turbo diesel rated at 61.4 gross HP. The problems owners and technicians report fall into seven areas: stalling under load (fuel supply), HST hesitation or weak drive in one direction, overheating from a packed radiator screen, DPF regeneration warnings, starting faults (often a dirty or misadjusted safety switch), hydraulic sluggishness from overdue service, and air restriction. Do the cheap checks first — fuel cap, sediment bowl and filter, radiator screen, safety switches, pedal linkage — before replacing anything expensive.

⚠️ DPF Warning — MX5800 Owners Must Read This

Kubota’s MX brochure describes the MX engines as common-rail with a Diesel Particulate Filter (DPF), meeting Tier 4 Final, and lists no DEF tank. The DPF needs regeneration to burn off soot, and ignoring regen warnings leads to power loss and dealer service. Know your four warning lamps (listed in the DPF section below) and never ignore them. See our full Kubota DPF Cleaning Guide.

📐 MX5800 Verified Spec Snapshot

Engine: Kubota V2403 common-rail, turbocharged, liquid-cooled diesel (listed as V2403-CR-TE4-MX3 in Kubota’s parts system)
Power: 61.4 gross HP; 57.5 PTO HP
Transmission: HST (hydrostatic) only — there is no clutch pedal on this tractor
Weight: 3,716 lb with ROPS, 4WD

Source: Kubota MX4800/MX5200/MX5800 brochure. Many older pages list 57 HP; that figure matches the PTO rating, not gross engine power.

MX5800 Problems — Quick Reference Table

Problem	Priority	DIY Difficulty	Check This First
Stalls under sustained load	High	Easy–Medium	Fuel cap vent, sediment bowl, fuel filter
HST hesitation / weak in one direction	Medium	Easy–Medium	Pedal linkage and neutral, fluid level, filter service
Overheating	High	Easy	Radiator screen, coolant level, fan belt
DPF / regen warning lamps	High	Medium	Which lamp is lit; operator’s manual regen steps
No-crank / starting issues	Medium	Easy	PTO switch OFF, pedal in neutral, safety switches, battery
Hydraulic / loader weakness	Medium	Easy–Medium	Fluid level, overdue filters, leaks
Air restriction / power loss	Low	Easy	Air cleaner elements, intake hose, radiator area

The Kubota MX5800 is the top of the MX4800/MX5200/MX5800 range: a 61.4 gross HP common-rail diesel with an HST transmission, 4WD, and Kubota’s Tier 4 Final emissions system. It handles loader work, brush hogging, and PTO implements, and most of the trouble owners run into is maintenance-related and cheap to fix when caught early.

Below are the seven problem areas, what to check in what order, two real owner cases where a small fault looked like a big failure, and the service intervals and capacities we could confirm from Kubota’s own literature and an authorized dealer. Where sources disagreed, we show both rather than pick one.

Problem #1 — Engine Stalls Under Sustained Load

Symptoms

Runs normally at idle and light work, then loses RPM and stalls after sustained mowing, hill climbing, or heavy PTO work
Restarts after sitting a few minutes, then stalls again under load
Easy to mistake for an injector or pump failure

Likely Causes (Supply Side First)

Restricted tank vent, creating a vacuum that gradually cuts fuel flow
Debris in the sediment bowl screen or a clogged fuel filter
Cracked, collapsed, or kinked fuel line, or a loose clamp letting air in
Air in the fuel system after filter service that wasn’t primed
Fuel filter past its service interval (400 hours per Kubota’s manual)

📋 Step-by-Step Diagnosis (Work in This Order)

Confirm the symptom is load-related — it stalls under demand, not at idle
Loosen the fuel cap when it starts to falter. If it recovers, the tank vent is restricted
Clean the sediment bowl screen and inspect it for debris or water
Replace the fuel filter if it is due or you have the symptom
Inspect every fuel line and clamp from tank to injection pump for kinks, cracks, and soft spots
Prime the system after any service. Messick’s service guide primes the MX5800 by cycling the electric fuel pump
Only then look at pump and injectors — don’t replace expensive parts until the supply side is proven healthy

💡 Pro Tip: The fuel-cap test costs nothing. If the tractor recovers the moment you loosen the cap, you’ve found the problem without buying a part.

See our Kubota Fuel System Bleeding Guide and Kubota Fuel Filter Problems Guide for the full procedures.

🔧 Fuel System Tools:

Water-Finding Paste

Dip it in the tank or sediment bowl to check for water in the fuel.

View on Amazon →

Fuel filter numbers for the MX5800 are in the parts table below. Match them to your serial number in our parts diagrams page before ordering.

Problem #2 — HST Hesitation or Weak Drive

Symptoms

Delay on pedal input, or a jerky response when changing direction
Strong in one direction and weak in the other
Whining from the transmission area under load
Weaker drive when hot

Likely Causes

Pedal linkage out of step with neutral — see the owner case below
Low or tired hydraulic/transmission fluid
HST filter overdue (Kubota’s manual lists it at 200 hours)
Air in the system after fluid or filter service
Internal HST wear, mostly on high-hour machines

⚡ HST Tip — Check Linkage Before Opening the Transmission

Kubota’s manual says the speed control pedal returns to neutral automatically when you take your foot off it. If the pedal and the lever on the hydrostat don’t agree on where neutral is, you get exactly the symptoms above, and no amount of fluid will fix it. Check the lever and linkage first.

See our Kubota HST Transmission Jerking Guide and Kubota Transmission Fluid Change guide.

Problem #3 — Overheating

Symptoms

Temperature gauge climbing toward red during mowing or loader work
Reduced power as the engine protects itself
Steam or a coolant smell from the engine compartment
Warning lights on the instrument cluster

Likely Causes

Radiator screen and fins packed with chaff — the most common cause during mowing
Low coolant or the wrong mix
Slipping fan belt under heavy load
Running at low RPM under heavy load
Failing thermostat or water pump in more serious cases

Clean the Screen

Blow the radiator screen out from the fan side after every mowing session. It takes three minutes and prevents most overheating.

Check Coolant

Kubota’s manual lists a coolant capacity of 6.5 L (about 6.9 US qt). Check the level, hoses, and clamps for leaks. Not sure which coolant? See our coolant type guide.

Work at Proper RPM

Heavy work at low RPM stresses cooling. Run the engine at the speed the job calls for.

If it still overheats after cleaning and a coolant check, inspect the belt, thermostat, and water pump. See our Kubota Overheating Guide.

Problem #4 — DPF and Regeneration Warnings

What Kubota’s Manual Says

The MX5800 has four related warning lamps: regeneration indicator, parked regeneration indicator, engine RPM increase indicator, and engine warning indicator
Auto regeneration mode activates automatically when the engine starts
Parked regeneration is started by pressing the parked regeneration switch once the manual’s conditions are met
The manual calls for DPF-compatible engine oil (CJ-4)

📋 What To Do When a Regen Lamp Comes On

Identify which lamp is lit — they mean different things
Don’t shut the tractor off mid-regen and don’t keep working through repeated warnings
If the parked regeneration lamp asks for it, park in an open area away from anything flammable and follow your operator’s manual procedure, including its starting conditions
If lamps return quickly or the engine warning lamp lights, stop and have it scanned. Don’t keep working

⚠️ Warning: Don’t use a DPF inhibit or workaround as a permanent fix, and don’t ignore a lit warning lamp. A clogged DPF can mean expensive service.

Not an MX5800 owner? Our Kubota DPF Regen Failures Guide covers other Tier 4 models, but always follow the procedure in your own manual.

Problem #5 — Starting and Electrical Issues

Symptoms

Slow cranking, or no crank at all
No-start despite a good battery and correct procedure
Intermittent warning lights
Charging warning while running

✅ No-Start Checklist — Check These First

PTO clutch control switch OFF — Kubota’s manual says the HST model won’t start unless it is OFF
Speed control pedal in NEUTRAL — also required to start
Battery load-tested, terminals clean and tight
Ground straps clean and tight
Fuses intact
Safety switches clean and actuating fully (see the owner case below)

DIY Fix

Load-test the battery; a battery that reads fine at rest can still fail under cranking load. Clean terminals and ground straps and protect them with dielectric grease. Replace blown fuses and test safety switches with a multimeter, replacing any that don’t switch reliably.

See our Kubota Safety Switch Guide and Ground Strap Guide.

🔧 Electrical Diagnosis Tools:

Digital Multimeter

Test battery voltage, charging voltage, and safety-switch continuity.

View on Amazon →

Battery Load Tester

Catches a weak battery that still reads fine at rest.

View on Amazon →

Battery Terminal Cleaner Brush

Clears corrosion from terminals and ground connections.

View on Amazon →

Dielectric Grease

Protects cleaned terminals and connectors from moisture.

View on Amazon →

Problem #6 — Hydraulic and Loader Weakness

Symptoms

Slow or weak loader lift
3-point hitch drifting down during work
Whining or moaning from the hydraulics under load
Heavy steering at low RPM

Likely Causes

Low hydraulic fluid from undetected seepage
Overdue fluid and filter service (400 hours per Kubota’s manual)
Air in the circuit after maintenance
Internal leakage in the control valve or cylinders

DIY Fix

Check the fluid level per your manual and top off with Kubota Super UDT2 or an approved equivalent. Kubota lists the combined transmission/hydraulic sump at about 11.6 US gallons (44 L), and Messick’s service guide says approximately 11.4–12 gallons. At the 400-hour service, Messick’s guide drains the fluid at three points (the main plug and the two axle drains), replaces the filters with pre-lubricated O-rings, and refills through the red fill cap.

Inspect hose connections and cylinder rod seals for seepage. See our Kubota Hydraulic Fluid Change Guide.

🔧 Hydraulic Service Items:

Kubota Super UDT2 Fluid, 2.5 gal

The sump takes about 11.6 gal, so plan on several jugs for a full change.

View on Amazon →

Hydraulic Oil Filter HHTA0-37710

Listed in Messick’s MX5800 400-hour service. Confirm against your serial number before ordering.

View on Amazon →

Problem #7 — Air Restriction and Power Loss

Symptoms

Gradual power loss over several hours of mowing
Black smoke from the exhaust
RPM sags more easily under load

Likely Causes

Air cleaner elements packed with chaff and dust
Restricted or cracked intake hose, or a loose clamp
Debris packed around the radiator or intake area

Air Cleaner

Kubota’s manual lists primary and secondary element replacement at 1,000 hours or 1 year. In dusty mowing, inspect the housing more often. Messick’s guide releases the housing by three clips.

Intake Hose

Inspect the hose from the air cleaner to the engine for cracks, collapse, or loose clamps. A small air leak here causes rough running.

Radiator Area

Chaff packed around the radiator also restricts airflow. Clean the radiator screen and intake area together.

See our Kubota Air Filter Maintenance Guide.

Real Owner-Reported MX5800 Failures: Two Cheap Fixes Worth Knowing

These two cases come from documented owner-and-technician exchanges rather than generic troubleshooting lists. In both, the owner assumed a major failure and the cause turned out to be small, which is why they’re worth checking before you spend money.

Case 1: Slow Forward, Normal Reverse (400-Hour MX5800 HST)

What happened: After a hard day of brush hogging, the tractor suddenly stopped, then moved off in reverse on its own. A small stick was found lodged in the linkage and removed. Afterward it drove slowly forward but at full speed in reverse. The owner had already changed all hydraulic and transmission fluids and filters, with no change.

Technician’s diagnosis: the lever at the end of the hydrostat pedal had slipped, so the linkage no longer matched the hydrostat’s neutral position.

Fix described: disconnect the linkage at the lever, start the tractor and confirm the lever returns to neutral by itself, then re-adjust the linkage to that neutral position.

Takeaway: if fluid and filter service doesn’t cure a drive problem that favors one direction, check the pedal linkage and lever before suspecting the hydrostat. Chock the wheels, set the parking brake, and keep hands clear of linkage while the engine runs. Follow your operator’s manual for the correct adjustment.

Case 2: Stopped While Running, Won’t Restart (Starter Not Turning)

What happened: The tractor quit while running and wouldn’t restart. Battery voltage was good, power reached the starter, and all fuses were intact, but the engine wouldn’t turn over.

Technician’s diagnosis: a safety interlock switch under the tractor on the left side wasn’t being actuated because of debris buildup. Pressing it with a screwdriver made the tractor start immediately. The technician also noted the switch uses an adjustable rod with a boot that can be lengthened.

Takeaway: on a no-crank with a good battery, clean the debris from the switch, confirm it actuates fully, and adjust the rod if needed. The case didn’t name the switch, so confirm its location and function in your manual. Don’t leave an interlock bypassed; it’s there to stop the engine starting when it shouldn’t.

Sources: owner/technician threads on JustAnswer — HST slow forward / full reverse and stopped running, won’t start. Each is a single reported case, not a guaranteed cause for your tractor.

MX5800 Service Intervals (From Kubota’s Operator’s Manual)

Interval	Service Items
200 Hours	Replace HST transmission oil filter
400 Hours	Change engine oil and filter • Change transmission/hydraulic fluid and replace hydraulic filter • Replace fuel filter and clean the sediment bowl screen
800 Hours	Change front axle case oil
1,000 Hours / 1 Year	Replace air cleaner primary and secondary elements
2,000 Hours / 2 Years	Flush the cooling system and change coolant

Source: Kubota MX4800/MX5200/MX5800 operator’s manual. The manual also covers early-hour and daily checks; read it for those. Severe-duty or dusty conditions call for shorter intervals.

MX5800 Fluid Capacities and Specifications

System	Capacity	Fluid / Notes
Engine Oil	8.2 L (about 8.7 US qt) per Kubota’s manual; 7.4 qt per Messick’s	DPF-compatible oil (CJ-4) per the manual. The two sources disagree: add oil in stages and set the final level on the dipstick
Engine Coolant	6.5 L (about 6.9 US qt)	See our coolant type guide
Hydraulic/Transmission (combined)	44 L (about 11.6 US gal); Messick’s says about 11.4–12 gal	Kubota Super UDT2 or an approved equivalent (per Messick’s)
Front Axle Case	Check your manual	We could not confirm the capacity or fluid from an official source

Sources: Kubota’s operator’s manual (capacities) and Messick’s MX5800 400-hour maintenance guide.

MX5800 Filter Part Numbers

Component	Part Number	Notes
Engine Oil Filter	HH164-32430	Listed in Messick’s MX5800 400-hour service
Hydraulic Oil Filter	HHTA0-37710	Listed in Messick’s 400-hour service
Spin-On Hydraulic Filter	HHTA0-59900	Listed in Messick’s 400-hour service alongside HHTA0-37710
Fuel Filter Cartridge	HH1J1-43172	Listed in Messick’s 400-hour service
Fuel Separator Element	1G311-43380	Listed in Messick’s 400-hour service
HST Transmission Filter	Verify by serial	Kubota’s manual lists a separate HST filter at 200 hours. We could not confirm which part number it is, so look it up by serial
Air Cleaner Elements (Primary and Secondary)	Verify by serial	Not confirmed from an official source; look up by serial

Some Kubota parts change by serial range, so always confirm part numbers by model and serial at Kubota’s official parts lookup or on our parts diagrams page.

🔧 Engine Oil Service Items:

Engine Oil Filter HH164-32430

Matches Messick’s MX5800 400-hour service. Confirm against your serial number.

View on Amazon →

Shell Rotella T6 5W-40 Full Synthetic

A heavy-duty diesel oil. Kubota’s manual calls for DPF-compatible CJ-4 oil; check the label and match the viscosity to your manual’s temperature chart.

View on Amazon →

🔎 How We Verified This Page

We checked the specs, intervals, capacities, and part numbers on this page against three sources: Kubota’s MX4800/MX5200/MX5800 brochure, the MX5800 operator’s manual, and Messick’s (an authorized Kubota dealer) 400-hour service guide. Where they disagreed, such as engine oil capacity, we show both figures instead of picking one.

Along the way we removed several figures that circulate widely but did not hold up, including the 57 HP engine rating (that’s the PTO rating), a 7.5 qt coolant capacity (Kubota’s manual says 6.5 L), and any clutch service items (the MX5800 is HST-only). Anything we couldn’t confirm is marked “verify by serial” or “check your manual.”

🚜 MX4700 owner? See our complete Kubota MX4700 Problems Guide — loader steering lockup diagnosis, HST jerking fixes, power loss troubleshooting, and more.

🚜 Own a Kubota MX5100? See our complete Kubota MX5100 Problems Guide — HST power loss diagnosis, no-crank safety switch fixes, and filter part numbers.

🚜 Own a Kubota MX5200? See our complete Kubota MX5200 Problems Guide — fuel shutdown diagnosis, hydraulic overheating fix, and HST recall info.

? Frequently Asked Questions — Kubota MX5800 Problems

Why does my MX5800 die after 15–20 minutes of mowing?

A tractor that idles fine but dies under sustained load usually points to fuel supply. Start with the free test: loosen the fuel cap while it’s acting up, and if it recovers, the tank vent is restricted. If not, clean the sediment bowl screen, replace the fuel filter, and inspect the fuel lines from the tank to the injection pump for kinks, cracks, or loose clamps. Work through the supply side before assuming pump or injector failure.

My MX5800 won’t start but the battery is good. What should I check?

Check the start conditions first. Kubota’s manual says the HST model won’t start unless the PTO clutch control switch is OFF and the speed control pedal is in NEUTRAL. Then check the safety switches: in one documented owner case, a switch under the left side of the tractor was blocked by debris and wasn’t being actuated, so the starter never engaged; once it was activated the tractor started immediately. Clean the switch, confirm it actuates fully, and adjust its rod if needed. Don’t leave a safety switch bypassed.

Why is my MX5800 slow going forward but fine in reverse?

Check the hydrostat pedal linkage before opening the transmission. In one documented case, the lever at the end of the hydrostat pedal had slipped after a hard day of work, leaving the linkage out of step with the hydrostat’s neutral. Re-adjusting the linkage to neutral fixed it, even though a full fluid and filter change had not. Low fluid or an overdue HST filter can also cause weak drive, so check those too.

Does the MX5800 have a DPF, and does it need DEF?

Kubota’s MX brochure describes the MX engines as common-rail with a Diesel Particulate Filter, meeting Tier 4 Final, and it does not list a DEF tank for the MX5800. The manual describes four related warning lamps (regeneration, parked regeneration, engine RPM increase, and engine warning), automatic regeneration at engine start, and a parked regeneration switch. Follow your operator’s manual for the exact procedure.

Is the MX5800 HST or gear drive?

The MX5800 is HST (hydrostatic) only, with 4WD. That means no clutch pedal, so clutch adjustment and clutch replacement guides don’t apply to it. Drive problems are HST problems: linkage and neutral, fluid level, and HST filter service.

What hydraulic fluid does the MX5800 use, and how much?

Messick’s service guide specifies Kubota Super UDT2 or an approved equivalent for the combined hydraulic/transmission sump. Kubota’s manual lists about 44 L (roughly 11.6 US gallons), and Messick’s says approximately 11.4–12 gallons. Change the fluid and hydraulic filter every 400 hours, and the HST filter every 200 hours, per Kubota’s manual.

How do I stop my MX5800 from overheating during mowing?

The first fix is free: blow out the radiator screen with compressed air from the fan side outward after every mowing session. In dry or tall grass the screen packs fast and cuts cooling capacity. After cleaning, check the coolant level and belt tension, and don’t do heavy work at low RPM.

Related MX Series Guides

Kubota MX4800 Problems Guide →

Step down in the MX series — complete MX4800 troubleshooting

Kubota MX5400 Problems Guide →

A close sibling — compare problem profiles

Kubota MX6000 Problems Guide →

Step up from the MX5800 — complete MX6000 troubleshooting

MX5400 vs MX6000 Comparison →

Side-by-side comparison of the two MX models above the MX5800 range

Kubota DPF Cleaning Guide →

Tier 4 models — DPF care and regeneration background

Kubota Fuel System Bleeding Guide →

Complete air bleeding procedure after filter changes

Most MX5800 trouble traces back to small, cheap things: a restricted fuel supply, a packed radiator screen, a dirty safety switch, a slipped pedal lever, or service that ran past its interval. Work the cheap checks first, stay on Kubota’s service schedule, and treat DPF warning lamps seriously. For more Kubota DIY guides, parts cross-references, and troubleshooting help visit TractorPartsCentral.com.

This article contains affiliate links. TractorPartsCentral.com is a participant in the Amazon Services LLC Associates Program. When you purchase through our links, we may earn a small commission at no additional cost to you.
